build of a Teambike replica based on a 1985 lightweight Peugeot PY10-FC
Frame:
Peugeot PX 10-FC size 54 cm, bonded frame with 3 main tubes out of carbon fiber of a diameter of 29.0 mm connected with aluminum lugs by adapters pieces

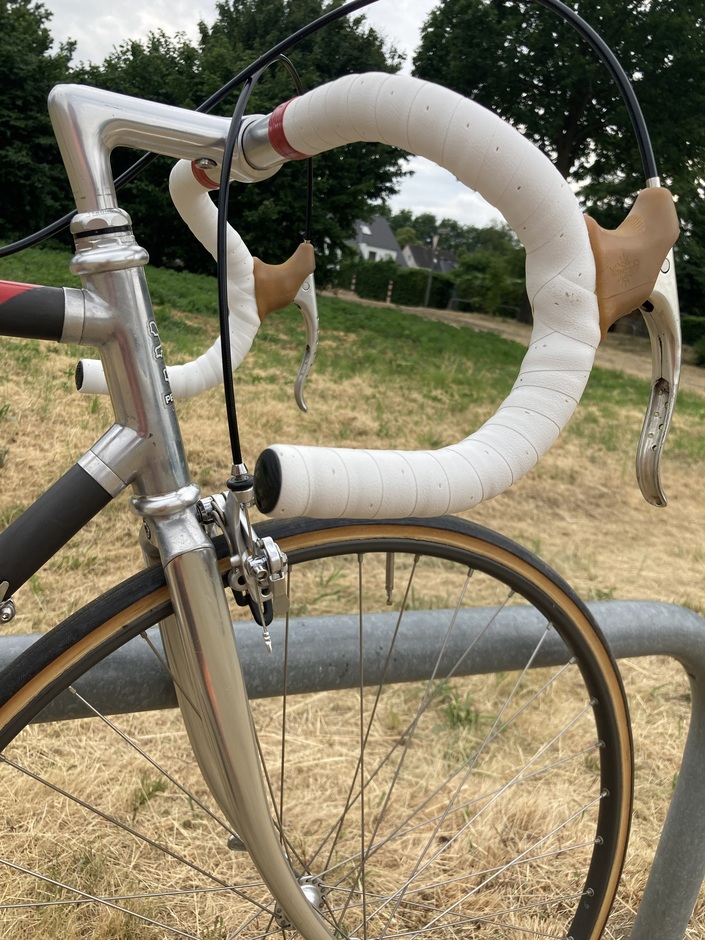

Fork/Headset:
Vitus Dural 22.2 mm / Stronglight A9

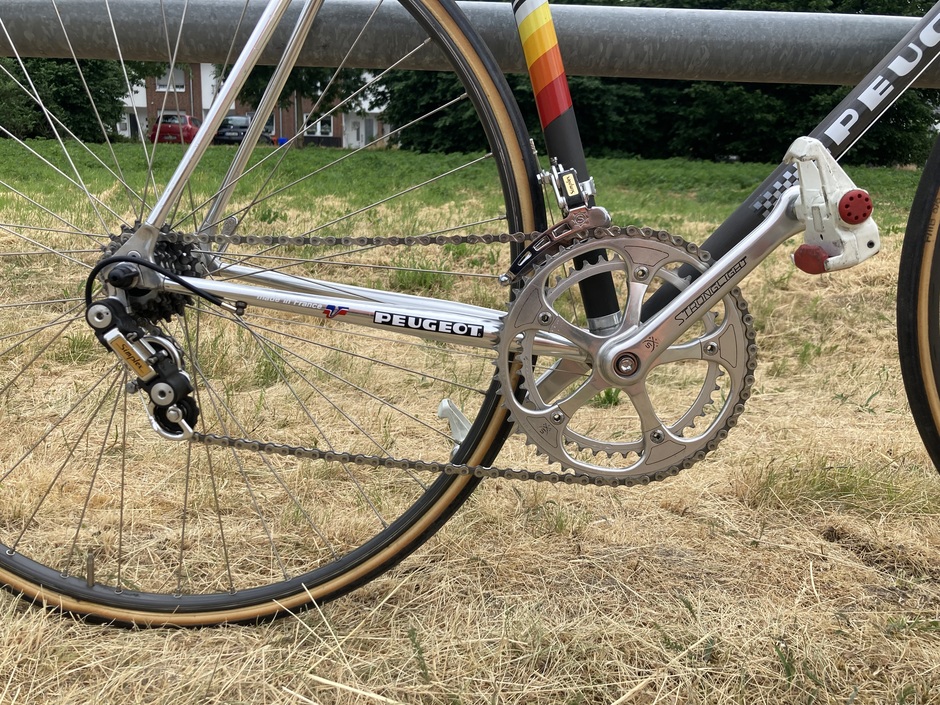

Crankset/Bottom Bracket:
Stronglight 107 52/42z / Stronglight 35x1 / 120 mm
Pedals:
Maillard 700D CXC with Christophe toe-clips and straps
Drivetrain/Cog/Chainring/Chain:
Stronglight Maillard Course 6-speed 13-24z, KMC 6 speed
Derailleurs/Shifters:
Simplex Super LJ A522 clamp 28.6 mm / LJ 4000 CP (Delrin) / SLJ shifters clamp version
Saddle/Seatpost:
Selle Italia Turbo Lite / SR Laprade 25.0 mm
Brakes:
Weinmann Carrera 400 with levers #185
Front Wheel/Hub/Tire:
Maillard 700 Professional 36h / MAVIC GP4 36h / FMB tubulars 700x23
Rear Wheel/Hub/Tire:
Maillard 700 Professional 36h / MAVIC GP4 36h / FMB tubulars 700x23
Accessories:
Bottle cage TA Specialites fixed with clamps
More Info:
refer tot the similarity to Vitus, Peugeot developed and realized the PY10-FC by their own
Added by gridno27. Last updated 6 months ago.
2 Comments
Photos
NicolasCalifornia says:
How did you make the rear triangle?
Posted 6 months ago
GhostRidingTheWhip says:
+1
Posted 6 months ago
