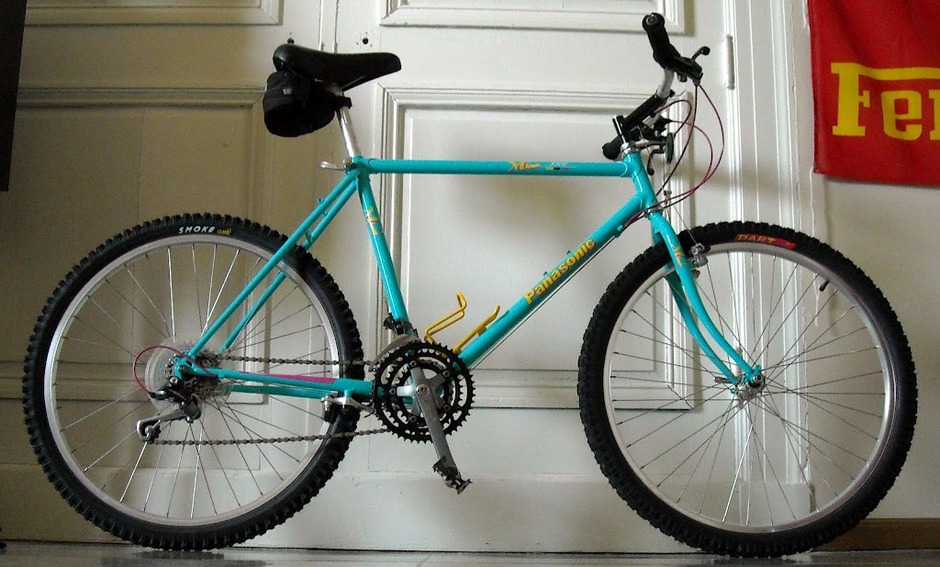

This was the 3rd from the top in the MC food chain for 1988.

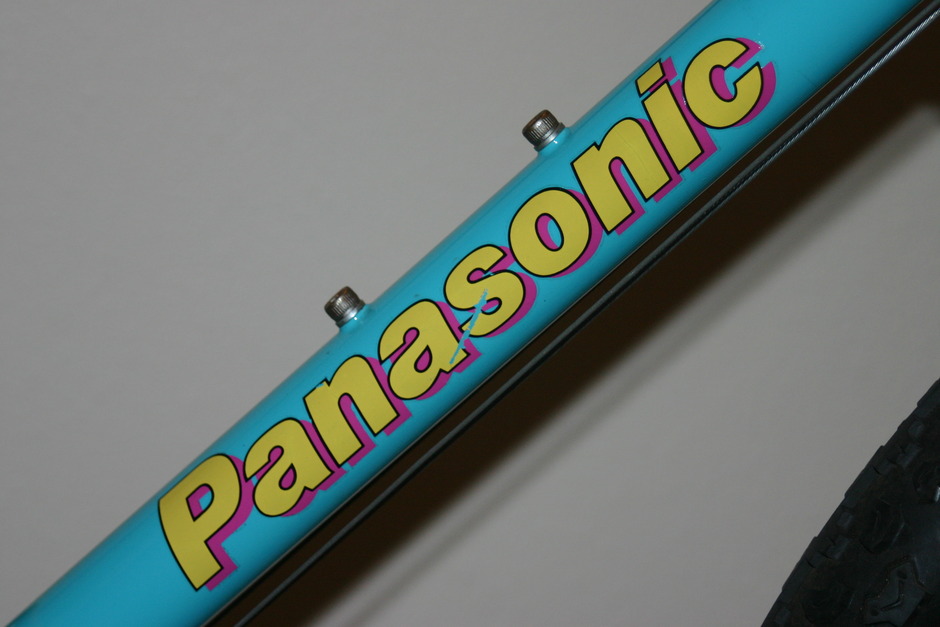

Frame:

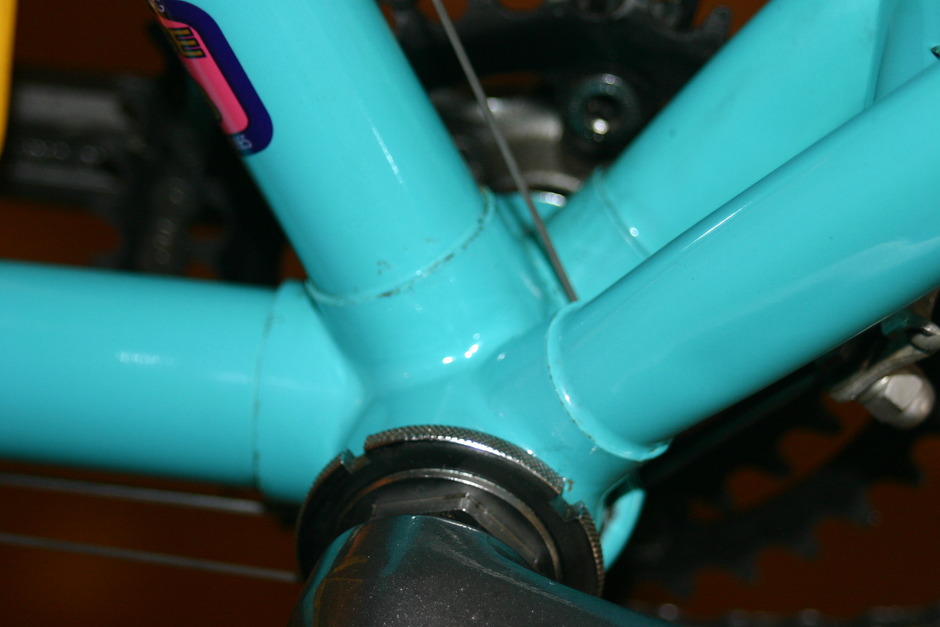

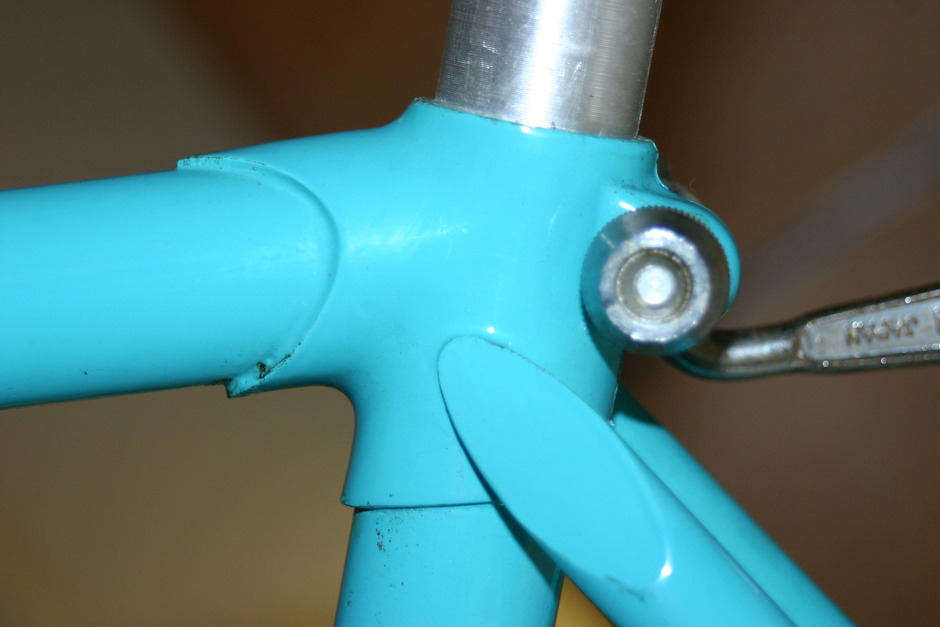

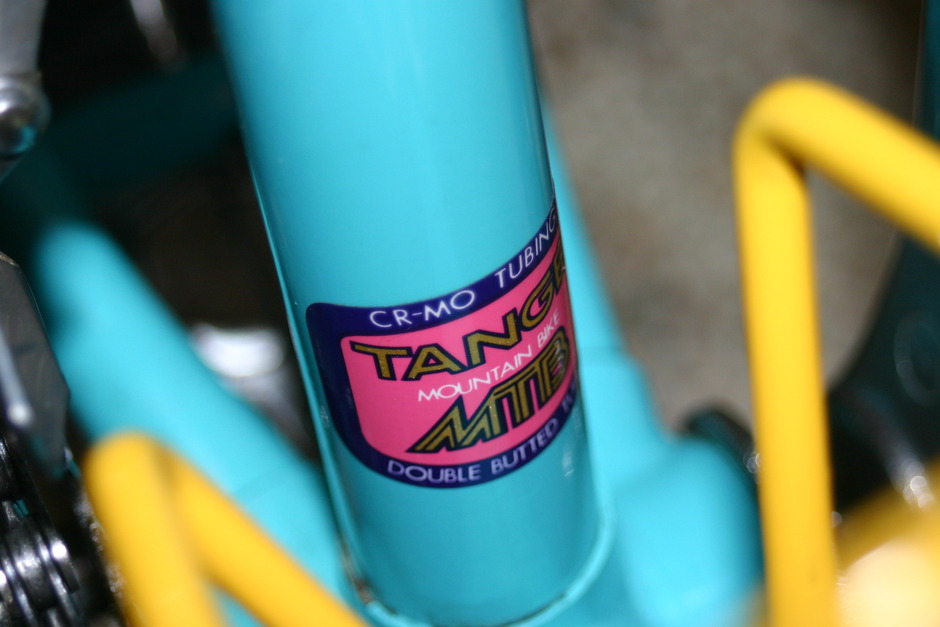

Tange Cr-Mo double butted tube, forged ends and Tange TK-25S sealed bottom bracket set
Fork/Headset:
Tange Cr-Mo Blades, forged ends and Tange CDS sealed headset
Crankset/Bottom Bracket:

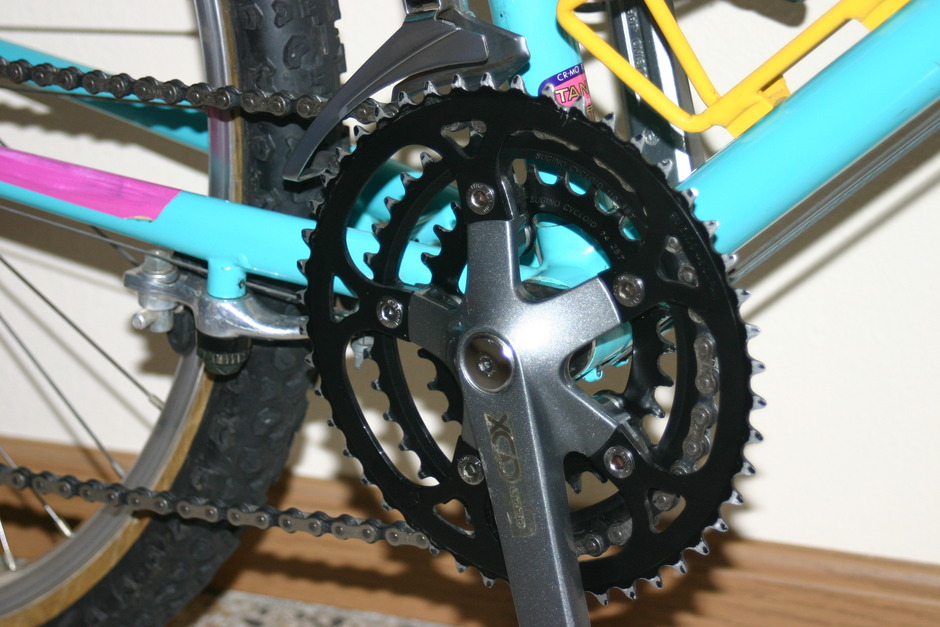

Suntour XCD 6000 Cycloid 48/38/28T
Pedals:
SR MTP-122 with reflectors
Drivetrain/Cog/Chainring/Chain:

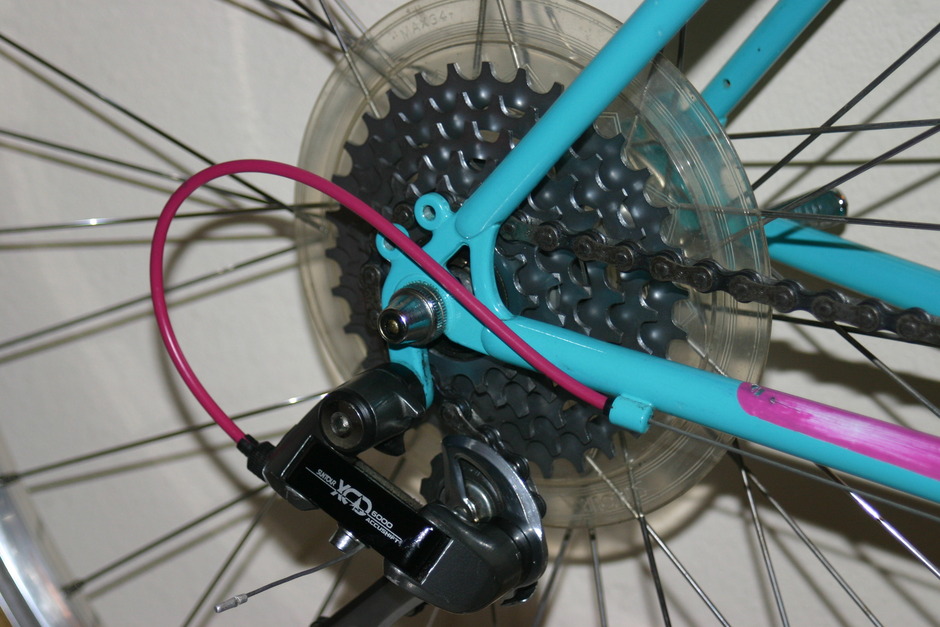

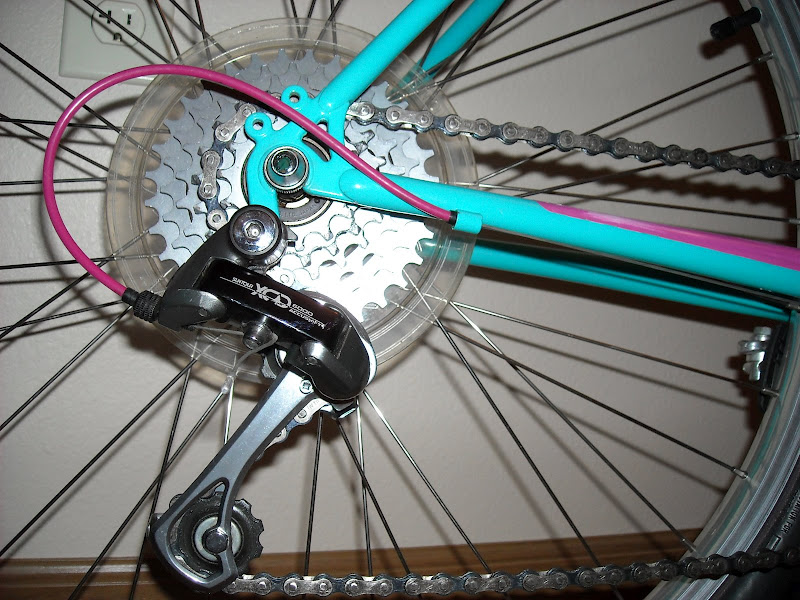

Suntour x6s 6 speed 14-32T
Derailleurs/Shifters:

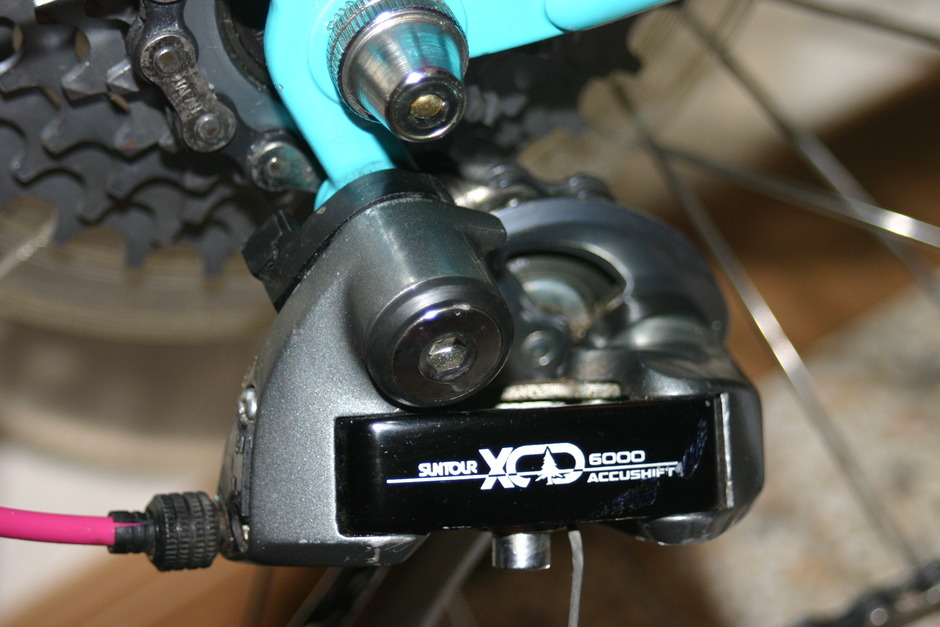

Suntour XCD 6000 Accushift
Saddle/Seatpost:
Panasonic, black vinyl leatherette anatomic with 320mm long micro adjusting alloy seat post
Brakes:

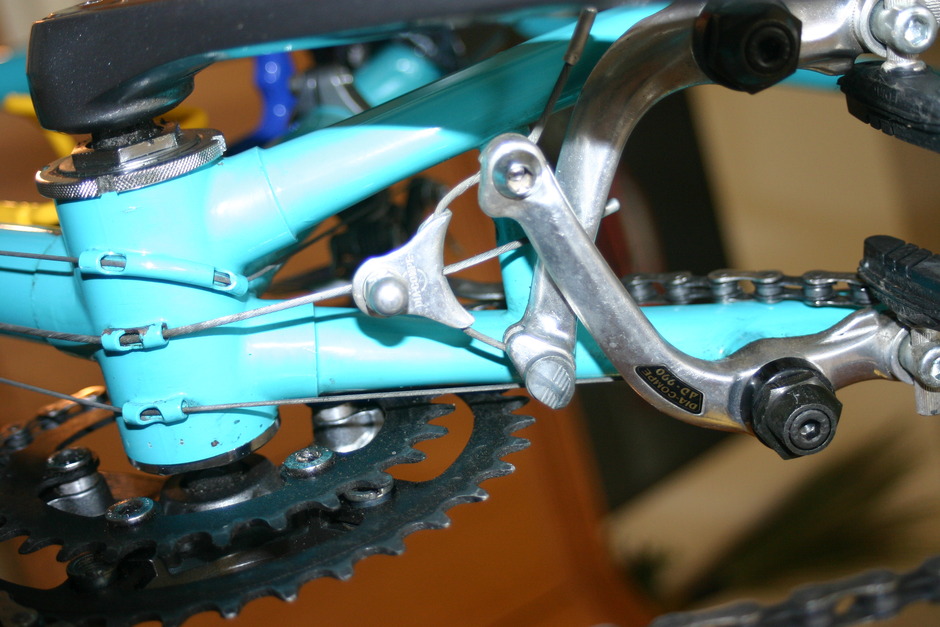

Front, Dia Compe o 983 cantilever brake / Rear, Dia Compe AD990
Front Wheel/Hub/Tire:
Sansin AE-20, sealed mechanism with quick release
Rear Wheel/Hub/Tire:
Sansin AE-20, sealed mechanism with quick release
More Info:
http://panasonicbikemuseum.info/archives/242
Added by PBVM. Last updated about 12 years ago.
As of about 12 years ago, PBVM has indicated that they no longer own this bike.
