Dengfu R02 Custom Build

Frame:
Dengfu R02 size 52

Fork/Headset:
Dengfu fork, FSA lightweight bearing headset,

Crankset/Bottom Bracket:
Rotor Bearings BB30, S works carbon cranks

Pedals:
Time iClic 2

Drivetrain/Cog/Chainring/Chain:
Stronglight CT2 rings, Ultegra 11 speed cassette, KMC X11SL chain,

Derailleurs/Shifters:

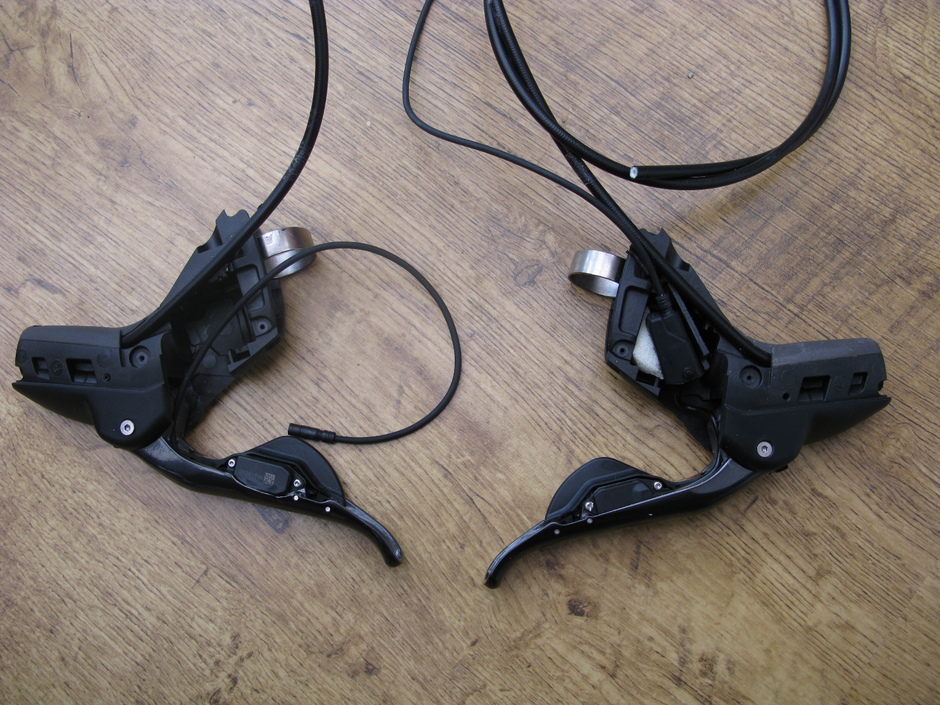

Ultegra 6780 Di2 front and rear mechs, Shift levers are Ultegra Di2 modified to fit in and operate Sram HydroR brakes

Handlebars/Stem:
Costello 1 piece Canyon H11 copy

Saddle/Seatpost:
Dengfu carbon post San Marco Aspide Carbon Saddle

Brakes:
Sram HydroR with alloy fittings Barberi pad holders with Swiss Stop Yellow pads

Front Wheel/Hub/Tire:
Navigator Carbon, Vittoria 23mm tub One23 skewer

Rear Wheel/Hub/Tire:
Navigator Carbon, Vittoria 23mm tub One23 skewer

Accessories:
Custom Carbon Garmin mount, lightweight copy bottle cages,

More Info:

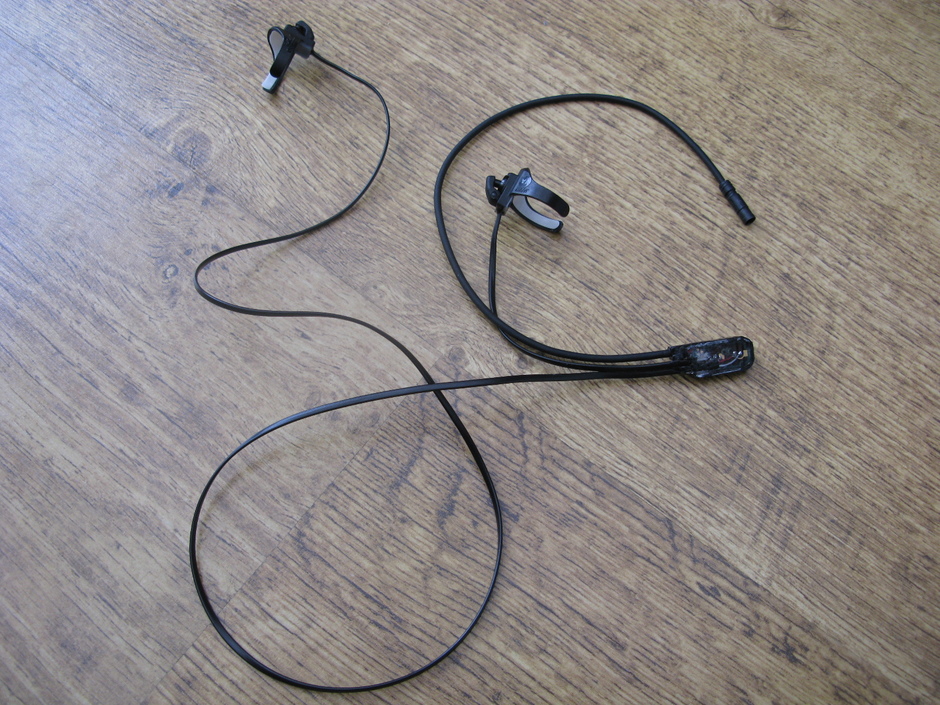

Custom Di2 setup with standard 6770 electronics in LH shifter, RH shifter uses SW600 electronics module wired with a second SW600 electronics module operated by Durarace Sprint shifter buttons.

Added by Motorapido. Last updated over 7 years ago.

2 Comments

Motorapido

Motorapido says:

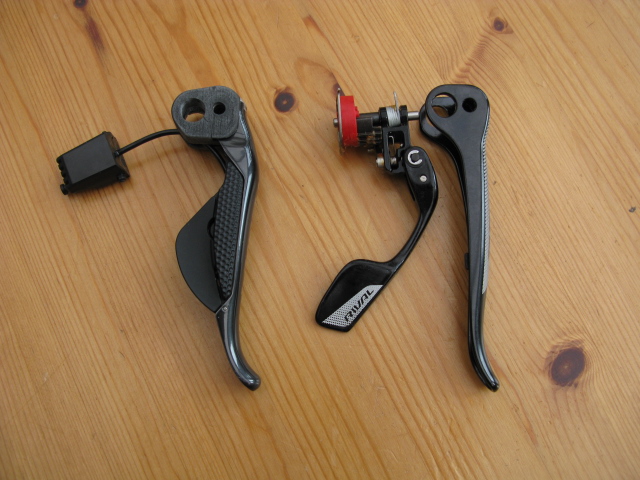

Thanks, there is plenty of room in the brake body once you remove the shifter assembly, The Di2 module drops straight in, just needs a groove to run the wire out to the junction 'A' see photos.

Posted over 7 years ago

vstkrc

vstkrc says:

Cool bit of modification work. How did you manage to secure the electronics inside the SRAM lever body?

Posted over 7 years ago
