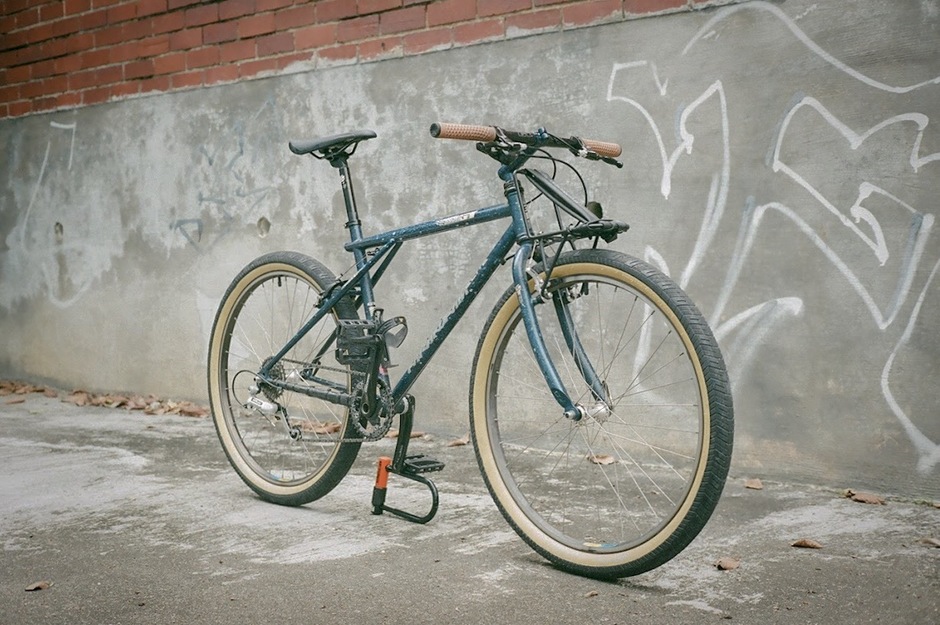

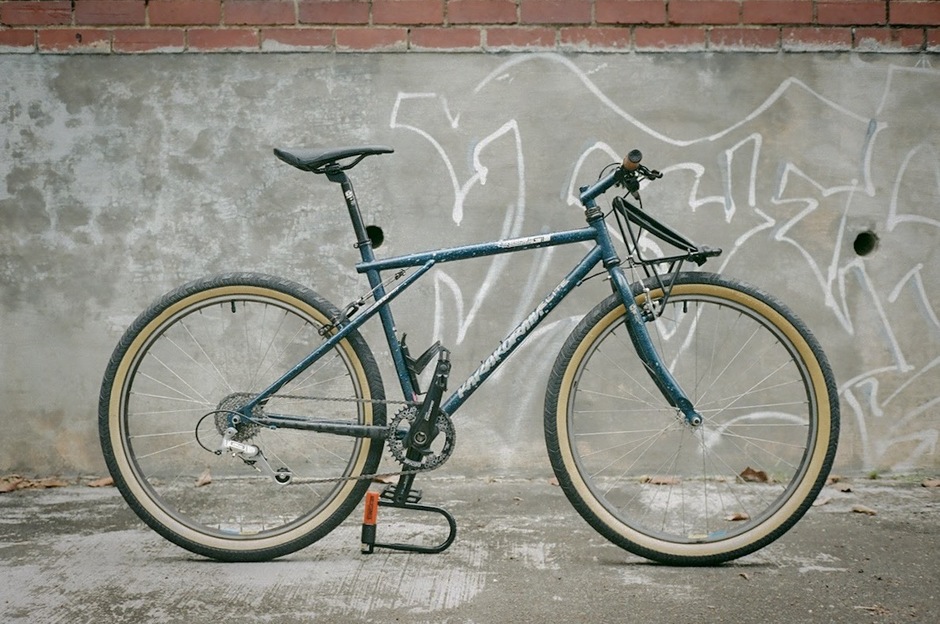

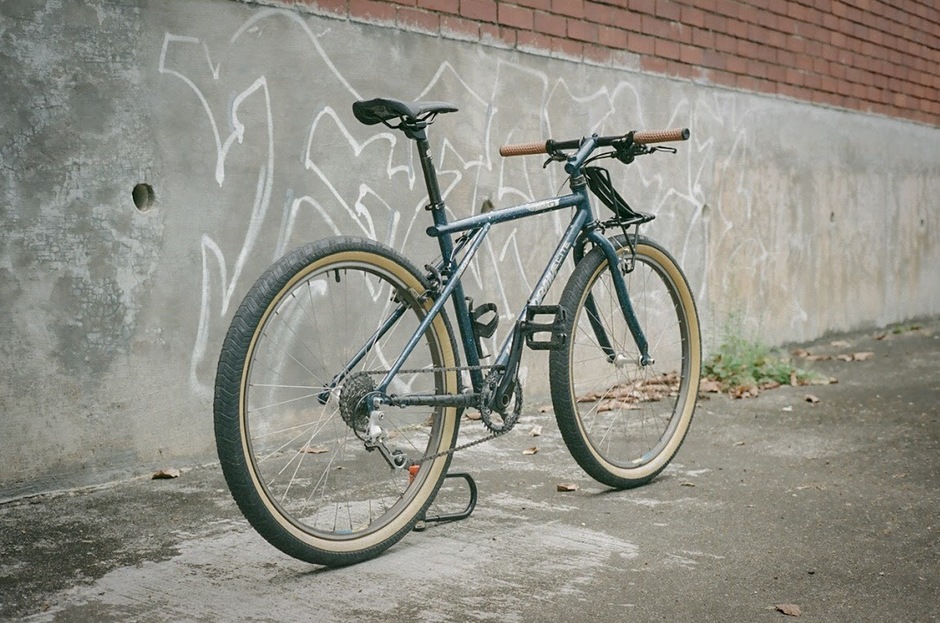

Picked this up and switched up some parts to make it rideable again.
Frame:
GT Karakoram Elite
Fork/Headset:
Stock

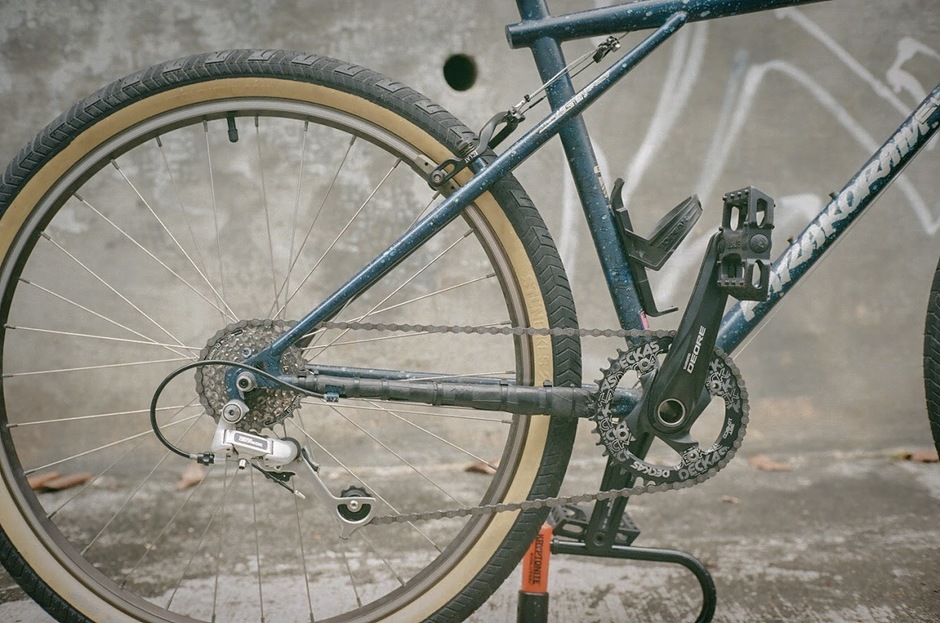

Crankset/Bottom Bracket:
Deore M615 Crankset / BB52 HollowTech II
Pedals:
Stolen Thermalite

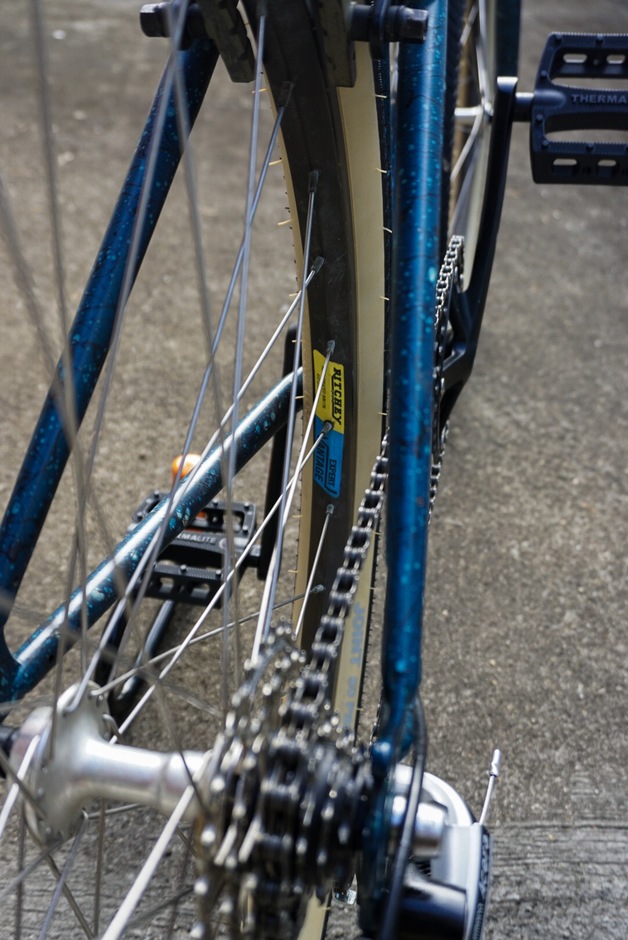

Drivetrain/Cog/Chainring/Chain:
Shimano 28-11T Cassette/ KMC / Deckas Narrow Wide Chainring 38T
Derailleurs/Shifters:
Shimano Deore DX 7 Speed (Stock) / Shimano Altus M310 7 Speed Trigger Shifter

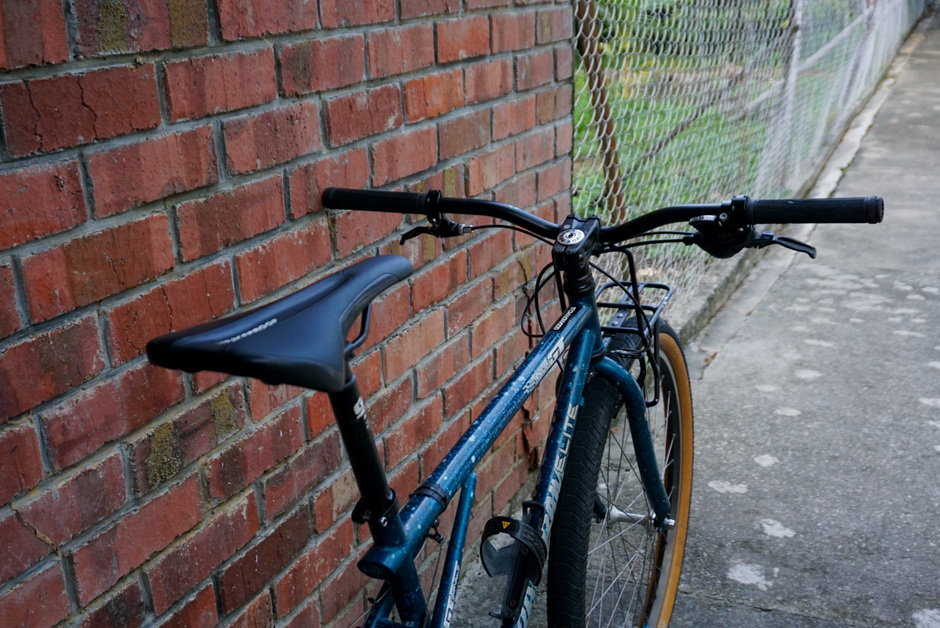

Saddle/Seatpost:
Nukeproof Neutron/ Stock
Brakes:
Front: Shimano Deore BR-T610 V-Brake. Rear: ÉCLAT Talon alloy u-brake rear (WeThePeople Crysis 2018) / Clarks Brake Lever
Front Wheel/Hub/Tire:
Ritchey Vantage Expert (Stock)/ Shimano Deore (Stock)/ Stolen Joint HP 2.2 tyre
Rear Wheel/Hub/Tire:
Ritchey Vantage Expert (Stock)/ Shimano Deore(Stock)/ Stolen Joint HP 2.2 tyre
Accessories:

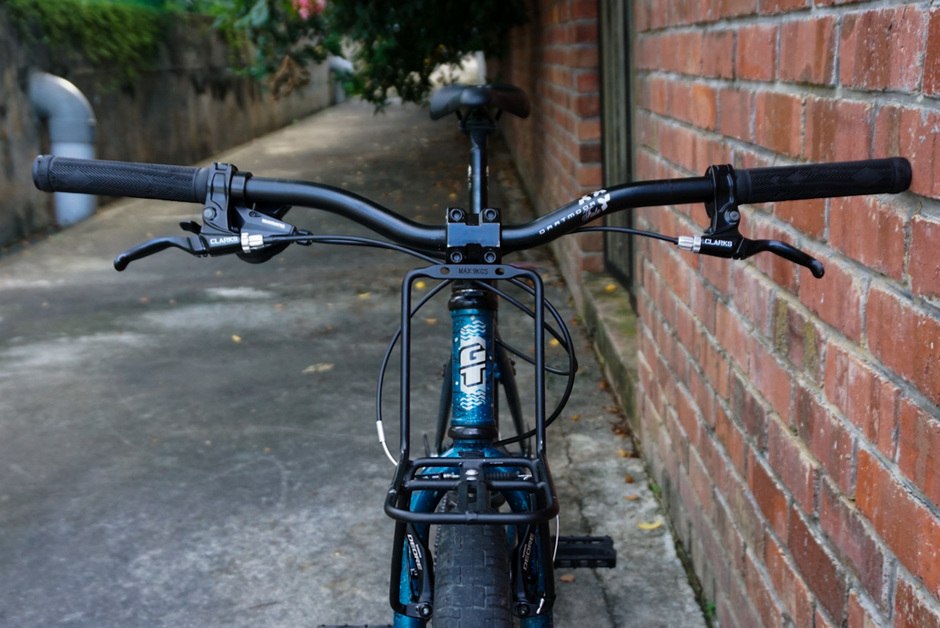

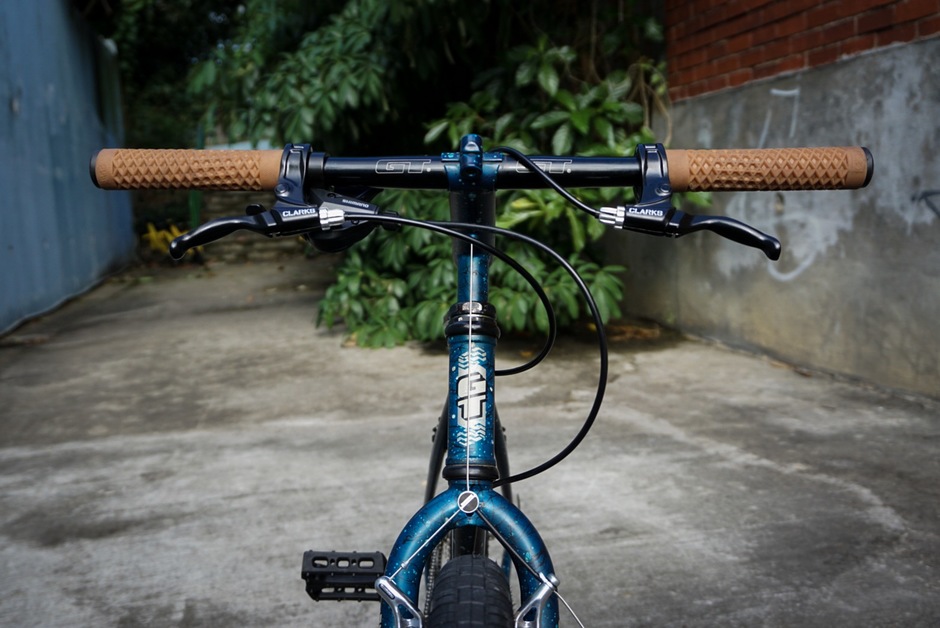

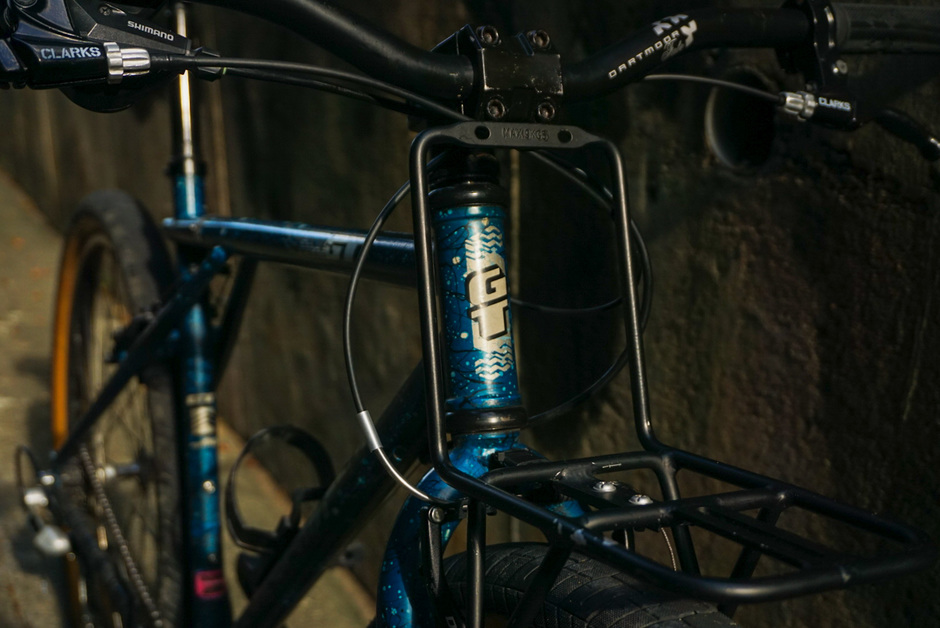

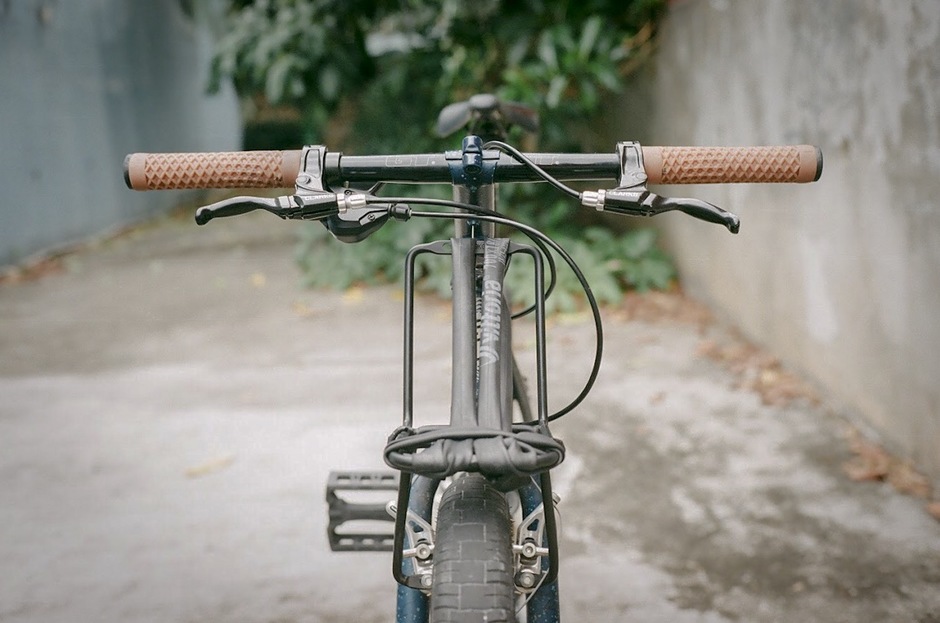

Shadow Conspiracy 138 Grips / RFR Front Carrier/ Topeak Mono Bottle Cage
Bike History
Click a link below to see past stages of this bike.
Added by raphaelng. Last updated over 4 years ago.
9 Comments
that derailleur and shifter are an abomination, otherwise I really like this as a 1 by.
Posted almost 6 years ago
Thanks! This was more of a budget build. The real issue with this build was the chainring. I didn't do enough research before building up this 1 by and ended up putting a normal chainring on. The bike shop that I purchased it from did not give me much advice too. I put on a chain guide later which didn't help the situaton. Right now I have a narrow wide installed and it works fine. I'm thinking of getting a clutch derailleur in the future too. An updated bike check is on the way!
Posted almost 6 years ago
narrow wide chain rings are widely available in 4 bolt patterns, unfortunately 5 bolts are usually more expensive but would be ideal if you're trying to use the original crankset, sorry your local bike shop couldn't help you much. I would suggest using a clutch derailleur except that you're approaching 10 speed territory, unfortunately I don't think that wheel is compatible with a 10 speed cassette. I suggest using the original shifter and derailleur with a bullet bros chain tensioner, its period correct, does the job and looks sweet, the tensioners are around $10-$20 on ebay. have fun whatever you decide on!
Posted almost 6 years ago
Thanks for the advice! I'm currently running Shimano Deore cranks with a 4 bolt narrow wide chainring. Initially I tried to put a 9 speed on but the stock freehub would not fit anything more than a 7 speed. The original shifter and derailleur is pretty beat up so I may not be able to use them anymore. Thanks again for your advice and ride safe!
Posted almost 6 years ago
Photos
Tags
cantilever, chromoly, commuter, karakoram, mountain-bike, steel, triple-triangle, vintage-mtb
More
raphaelng's Other Bikes
50voltphantom says:
I love that you were able to ditch the plastic cable guide on the seat tube. This is much nicer.
Posted almost 6 years ago
raphaelng says:
Thanks! If I'm not wrong the cable guide on the seat tube was for the front derailleur and I've ditched it so it looks pretty clean!
Posted almost 6 years ago
