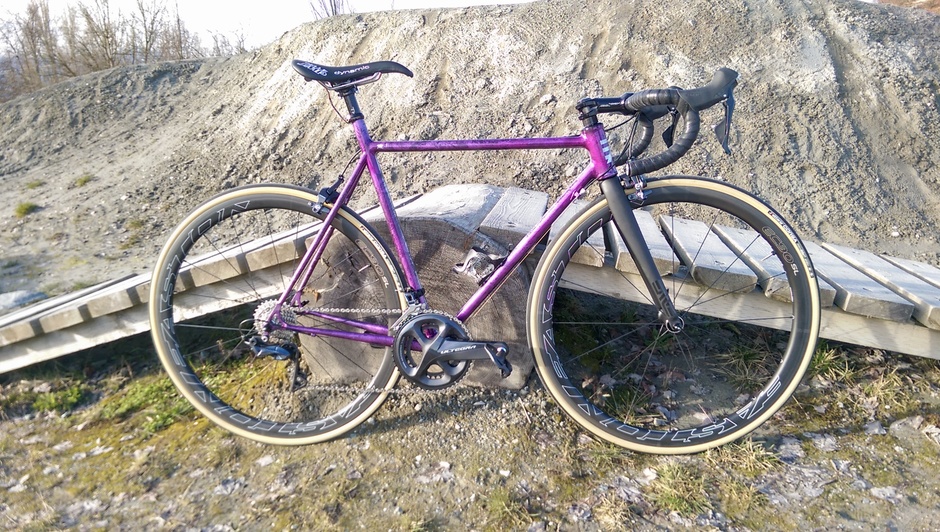

Mk. I Criterium Bike

Frame:
Mk. I

Fork/Headset:
Enve Road 2.0, 40mm rake/Chris King inSet 1

Crankset/Bottom Bracket:
Ultegra FC-R8000, 170mm/Ultegra SM-BBR60

Pedals:
Ultegra PD-R8000

Drivetrain/Cog/Chainring/Chain:
Ultegra FC-R8000 50/34, Ultegra CS-R8000 11-28, Ultegra 6800 HG-701

Derailleurs/Shifters:
Ultegra FD-R8000/Ultegra RD-R8000 SS/Ultegra ST-R8000

Handlebars/Stem:
Easton EC70 SL 40cm/Thomson Elite X2 100mm

Saddle/Seatpost:
Selle SMP Dynamic/Thomson Masterpiece 27.2mm x 350mm

Brakes:
Ultegra BR-R8000

Front Wheel/Hub/Tire:
Easton EC90 SL/Vittoria Corsa G+ 25mm

Rear Wheel/Hub/Tire:
Easton EC90 SL/Vittoria Corsa G+ 25mm

Accessories:
Look carbon bottle cage/LizardSkins DSP 1.8mm bar tape/10+2mm carbon steerer spacers/Thomson 30.0mm seatpost collar/Shimano R55C-A brake pads

More Info:
Frame built by me, in Paul Brodie's Framebuilding 101 course. Made of Nova 4130 double-butted chromoly with Columbus Zona stays, and Paragon Machine Works 44mm headtube, dropouts, and braze-ons. Top tube and downtube are undersized (1" and 1 1/8" respectively). Fillet-brazed and hand-made. Geometry inspired by my Anchor track frame, with aggressive headtube and seattube angles, high bottom bracket, and short chainstays. Commonly called a "criterium" style of road bike, has twitchy handling and steers from the ass, with tight clearances and short wheelbase. Frame painted by Kermode Cycles in Vancouver, BC. Assembled with the help of Union Street Cycles, Bonavia Cycles, and Mac Talla Cycles in Vancouver, BC.
