Quirk Pursuit Pista

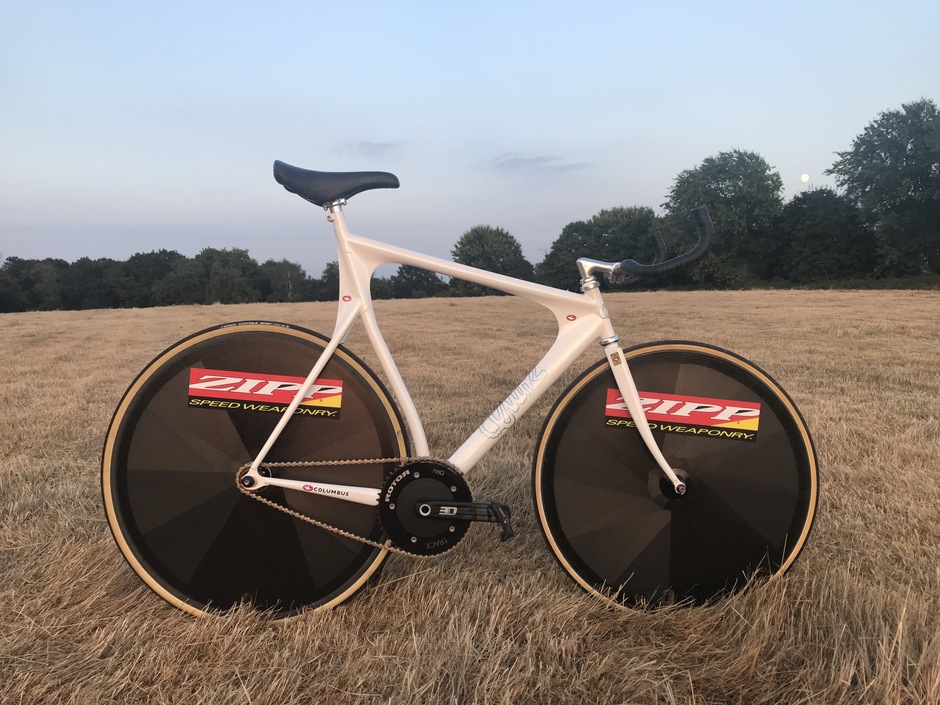

3 years dreaming, designing and saving, as well as a total 9 month production time was the process taken to finish this frame. I came to Rob looking for a custom bike, with sketches and drawings of what I'd envisioned, needless to say he was pumped to get it started, but uncharted territory meant both Quirk and painters Cole Coatings spent more time on this frame than many of the previous ones. All of which I'm incredibly grateful for. So from paper sketches to bike fit renders this frame is based on post 1980’s bicycles that changed what a bike both looked like and was capable of. Of course before UCI bans took action as a result of such advantages. Pursuit frames made by Cinelli, Moser and Rossin are all inspiration for this truly special bike. Finished in some very special parts I've spent nearly 2 years collecting everything is as it should be.... unless one of those 3ttt Carbon pursuit bars come up of course. Until then, she's sitting all pretty. Please visit both Quirk and Coles websites for further info: *http://www.quirkcycles.com/latest/2018/6/11/jacks-lo-pro-pursuit *https://colecoatingsworkshop.com/#/quirk-lopro-pursuit/

Frame:

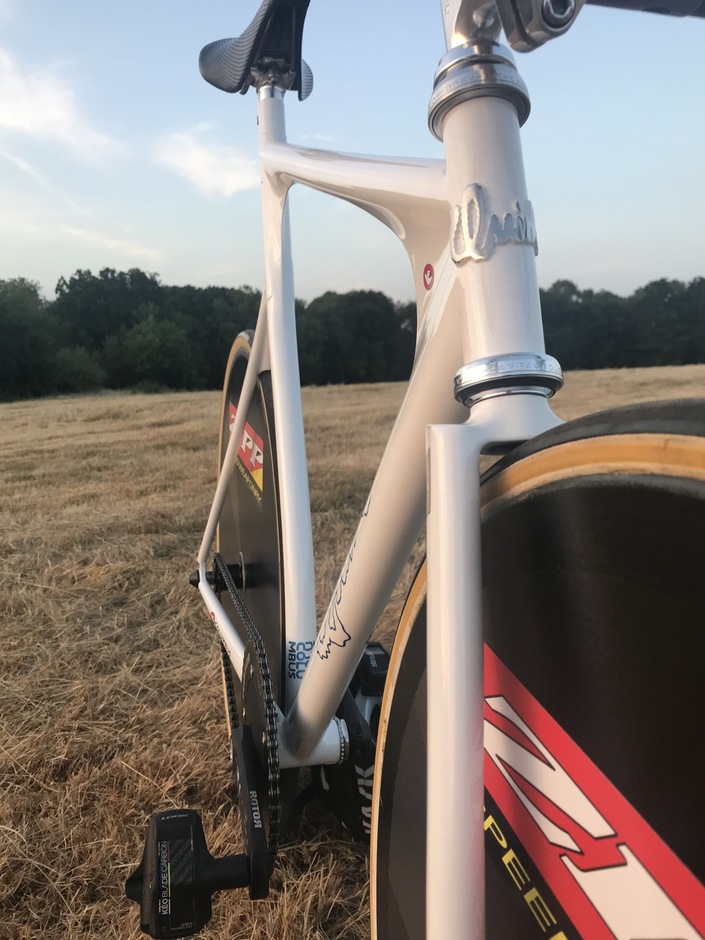

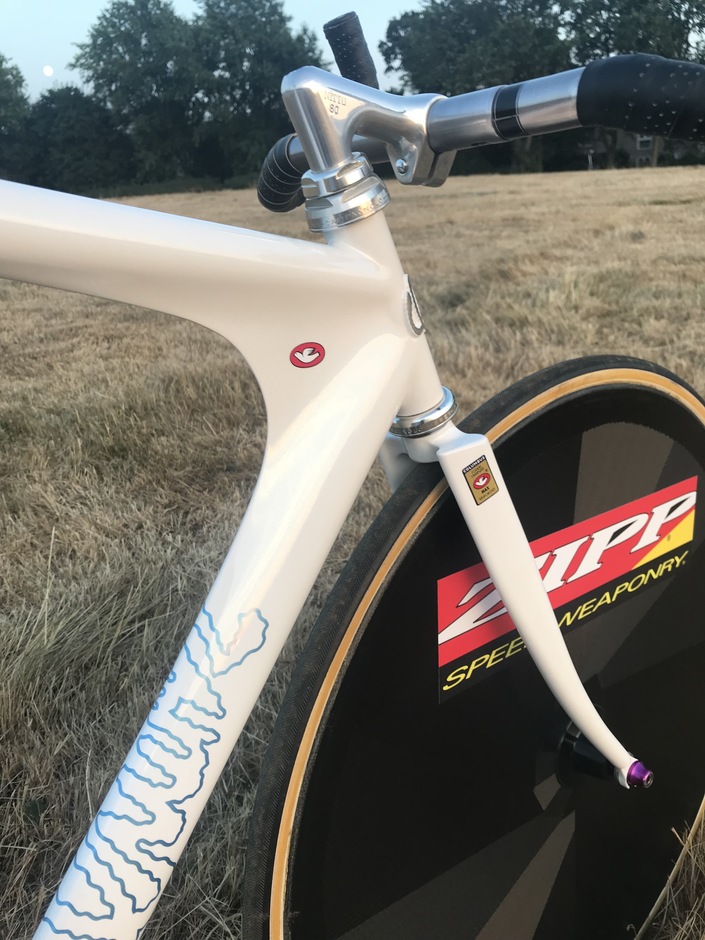

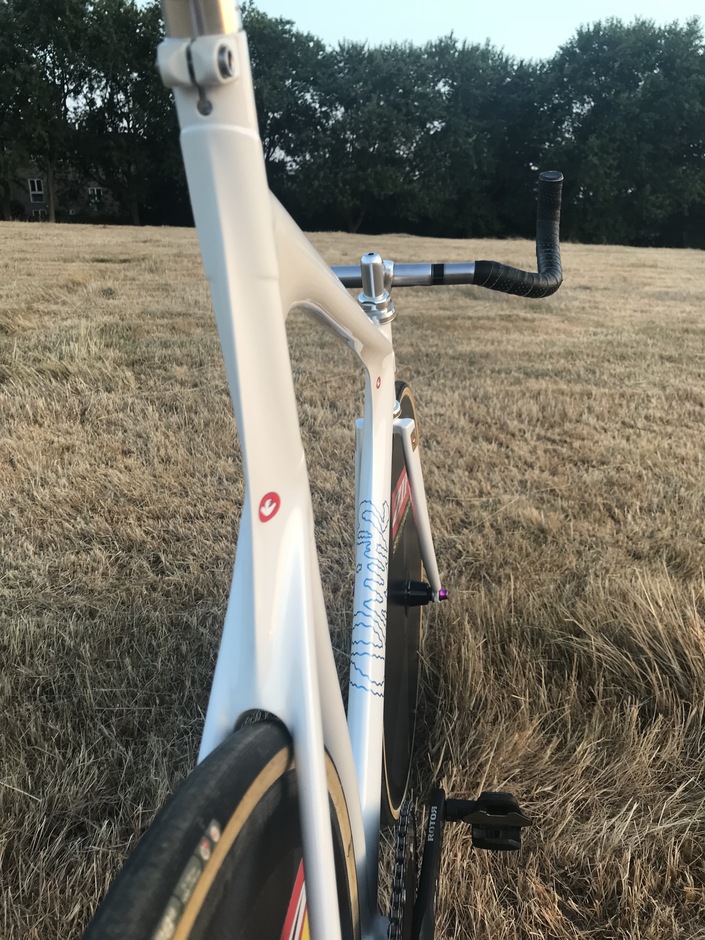

Sporting a Columbus Max top-tube, seat-stays and forks with a Samson Max Aero fork crown. Columbus Megatubes in an oversized 'D' shaped down-tube. Reynolds curved 853 seatube and Columbus Max wishbone. Aerofins are a thin steel plate filled with a flex-epoxy, smoothed and defined beautifully by Cole Coatings. Paint is a simple white finished in a blue pearlescent clear coat complimented by the Laser blue Quirk logo.

Fork/Headset:
Campagnolo Athena silver Headset, Columbus Max fork with Samson Max aero fork crown

Crankset/Bottom Bracket:
Rotor 3D solid crankset with Rotor Track BB

Pedals:
Look Keo Blade Carbon Pedals

Drivetrain/Cog/Chainring/Chain:
Rotor 52t NoQ solid Chanring, EAI 15t sprocket, D.I.D Racing Pro chain Silver

Handlebars/Stem:

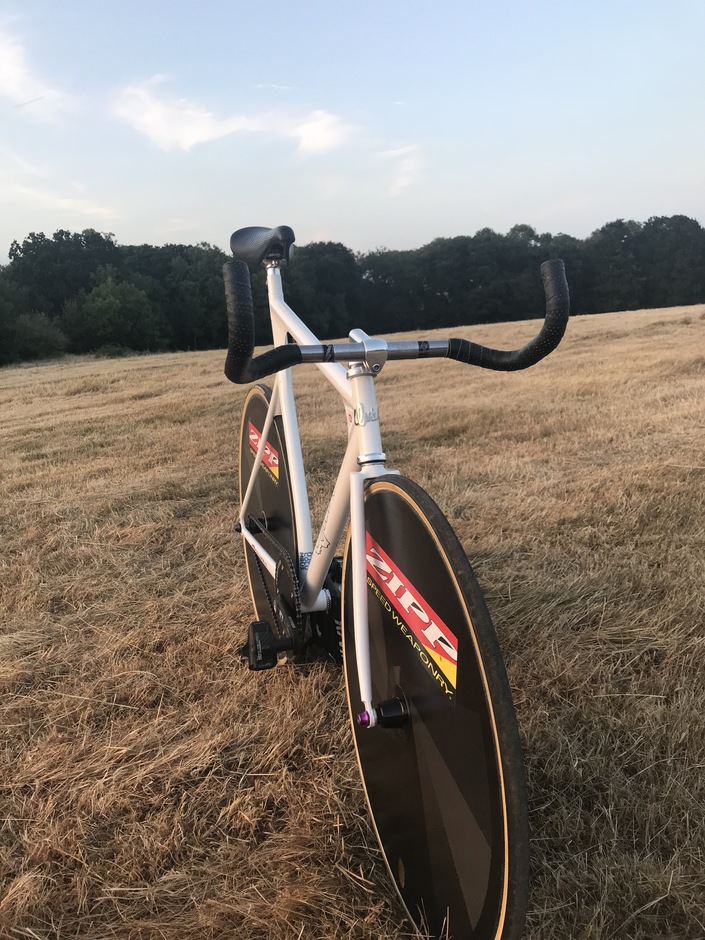

Nitto Jaguar 90mm Stem, 3ttt Moscow Pursuit Handlebars 40cm, Fizik Classic perforated bar tape and black rubber 3ttt bar plugs

Saddle/Seatpost:
Thompson Elite seatpost, Concor Laser saddle

Front Wheel/Hub/Tire:
2001 Zipp 840 Carbon disc glued to Vittoria Competition Juniores 21-26" 3D Kevlar Tubular

Rear Wheel/Hub/Tire:
2001 Zipp 900 Carbon disc glued to Vittoria G+ Graphene Tubular

Added by JPD. Last updated about 3 years ago.

9 Comments

DAVidG

DAVidG says:

One of the best bikes I've ever seen. WOW!

Posted almost 2 years ago

J-Gazelle

J-Gazelle says:

Awesome bike.

Posted about 6 years ago

JPD

JPD says:

Thank you!

Posted about 6 years ago

Thor

Thor says:

Very nice concept and buildup.
Some more pictures would be great...

Posted about 6 years ago

JPD

JPD says:

Working on this ;)

Posted about 6 years ago

kobe

kobe says:

Awesome!
great story also.
thanks for sharing ;)

Posted over 6 years ago

JPD

JPD says:

Thanks man!

Posted over 6 years ago

scphnt

scphnt says:

Nice! For aesthetics I would turn the handlebar to line up with the stem

Posted over 6 years ago

JPD

JPD says:

I spend more time riding the bike than looking at it, so feel comes before aesthetics ;)

Posted over 6 years ago
