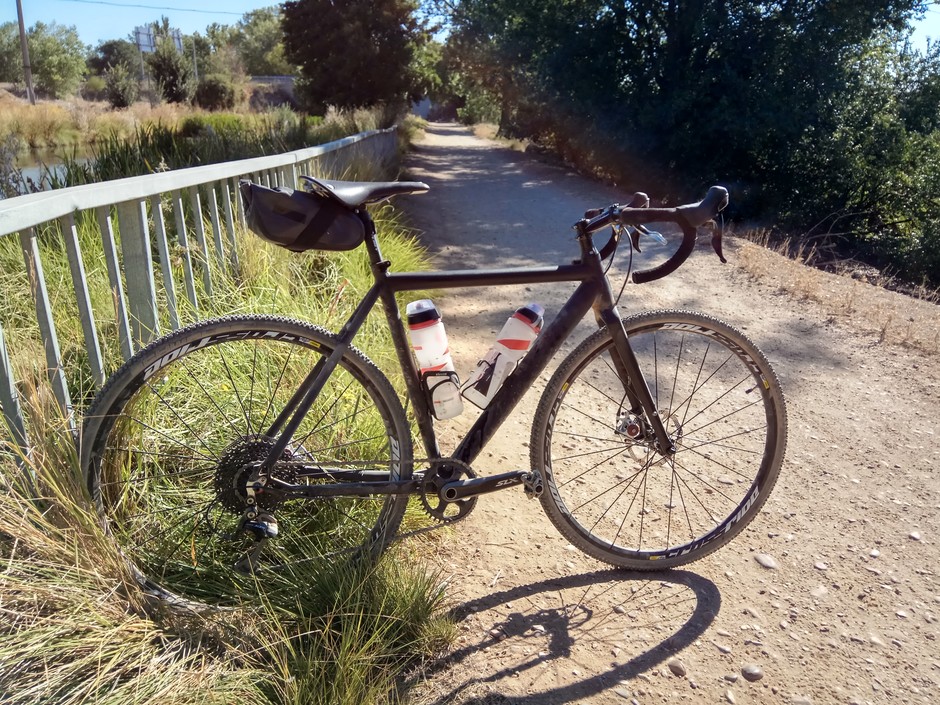

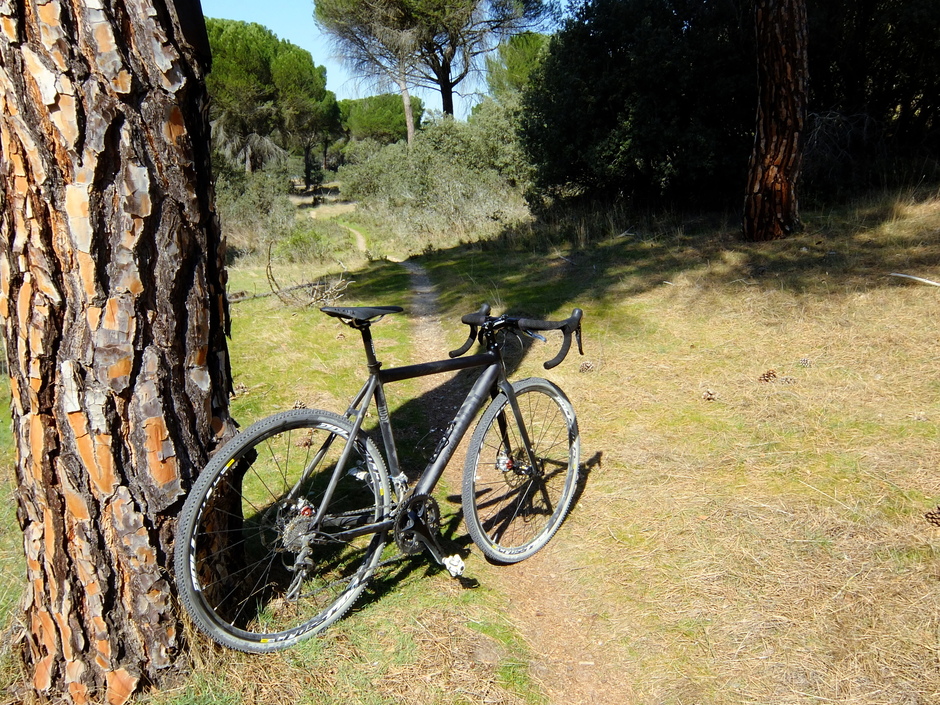

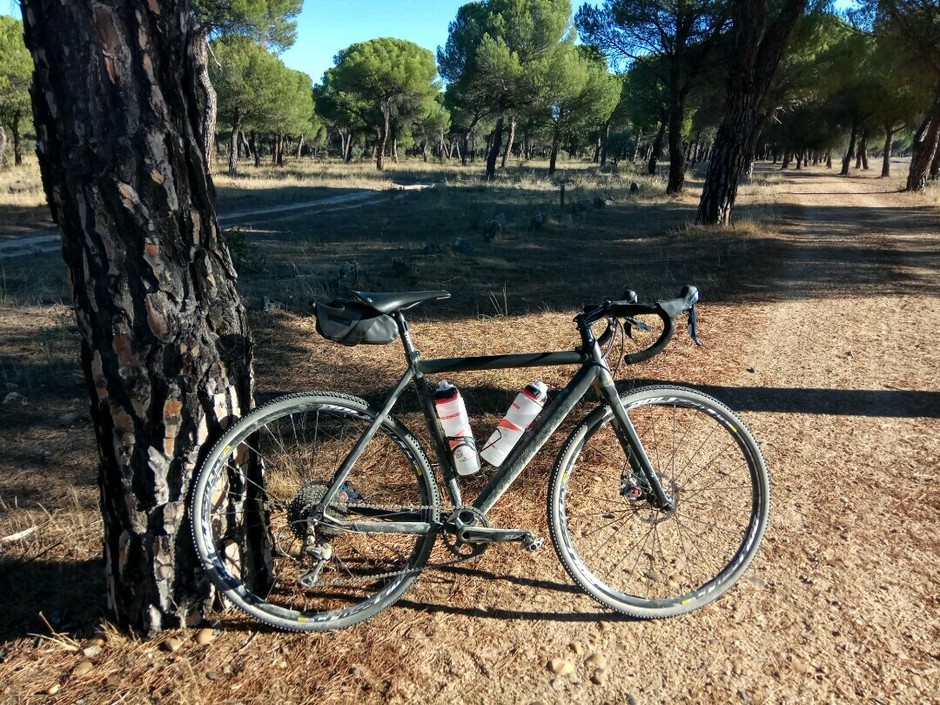

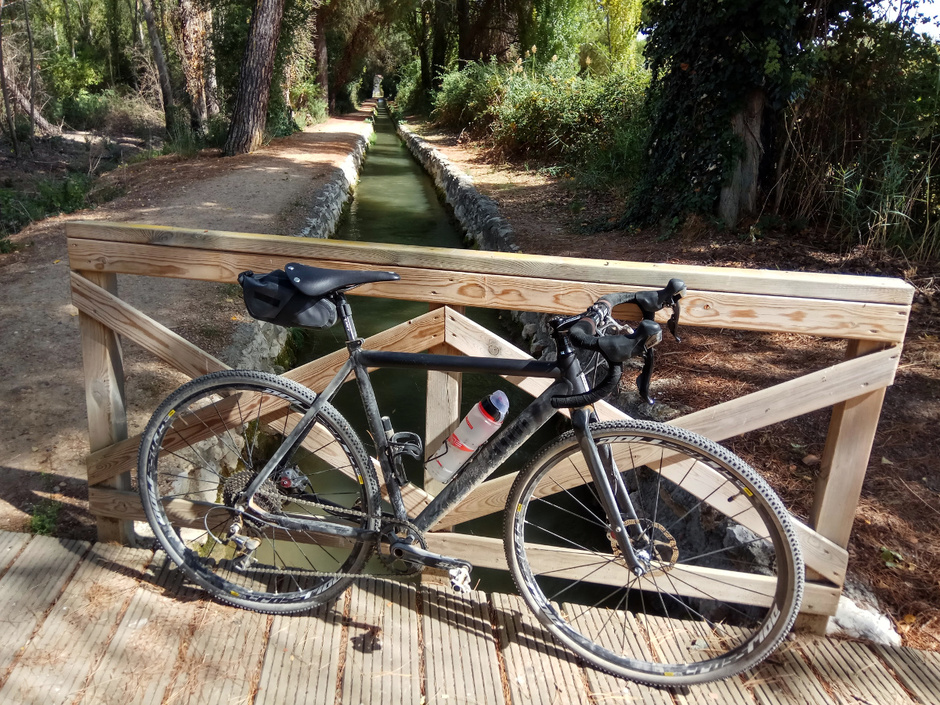

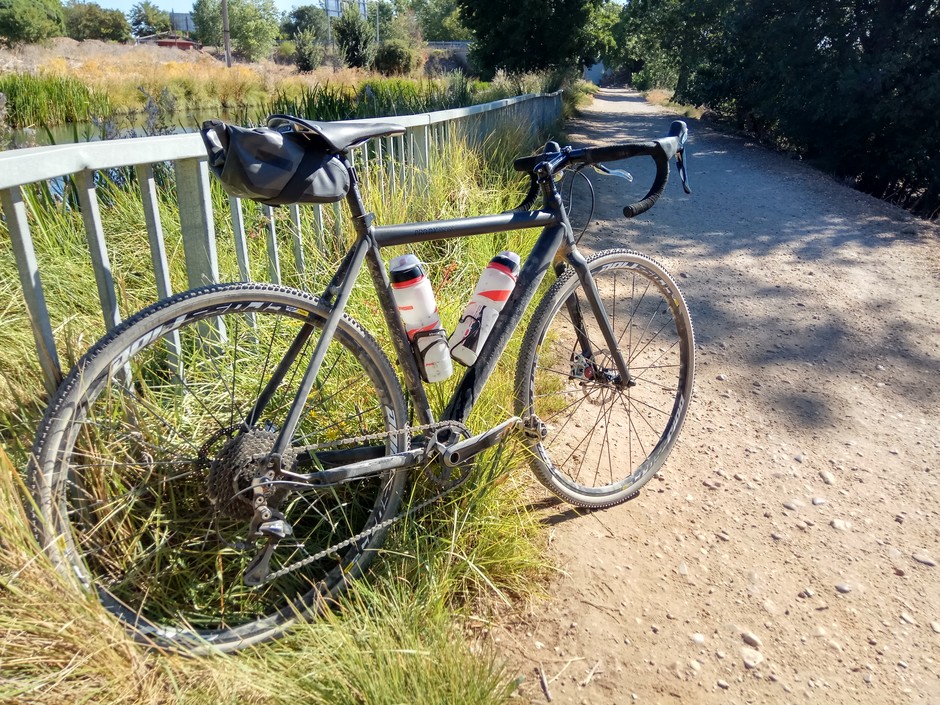

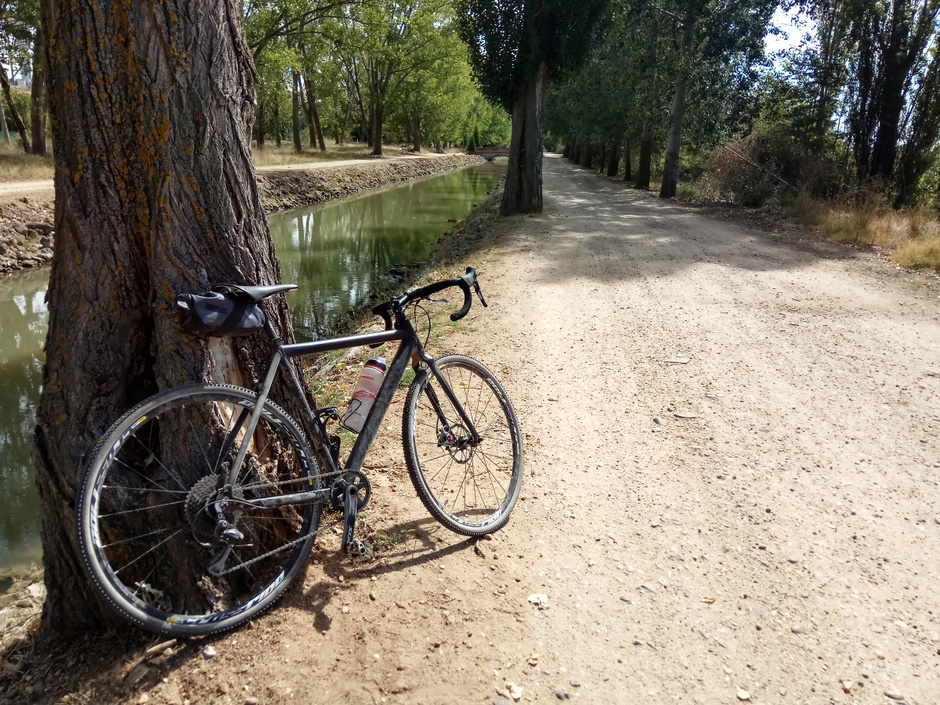

Cyclocross bike, model from 2014
Frame:
Rose, 7005 T6 Ultralight Aluminium, triple butted, 1.460 g
Fork/Headset:
Rose Pro DX Cross Carbon, tapered 1 1/8" - 1.5", alu stereer
Crankset/Bottom Bracket:
Shimano SLX M7000 (96BCD asymetric) / Shimano 105 BB PressFit PF30
Pedals:
Time XS Carbon Absalon
Drivetrain/Cog/Chainring/Chain:
Cassette Sunrace MX-3 11-42 10v black / chainring Garbaruk 36T oval / KMC
Derailleurs/Shifters:
Front Shimano 105 FD-5703 / rear Shimano 105 RD-5701 with Wolftooth Roadlink / shifters Shimano 105 ST-5703
Saddle/Seatpost:
Brooks Cambium C17 / Ritchey Comp
Brakes:
Avid BB7 Road
Front Wheel/Hub/Tire:
Mavic Crossride 014 9/15mm, Schwalbe Racing Ralph, valve 42mm
Rear Wheel/Hub/Tire:
Mavic Crossride 014 9x135mm, Schwalbe Racing Ralph, valve 42mm
Accessories:
Inline auxiliar brake levers Xtrem
More Info:

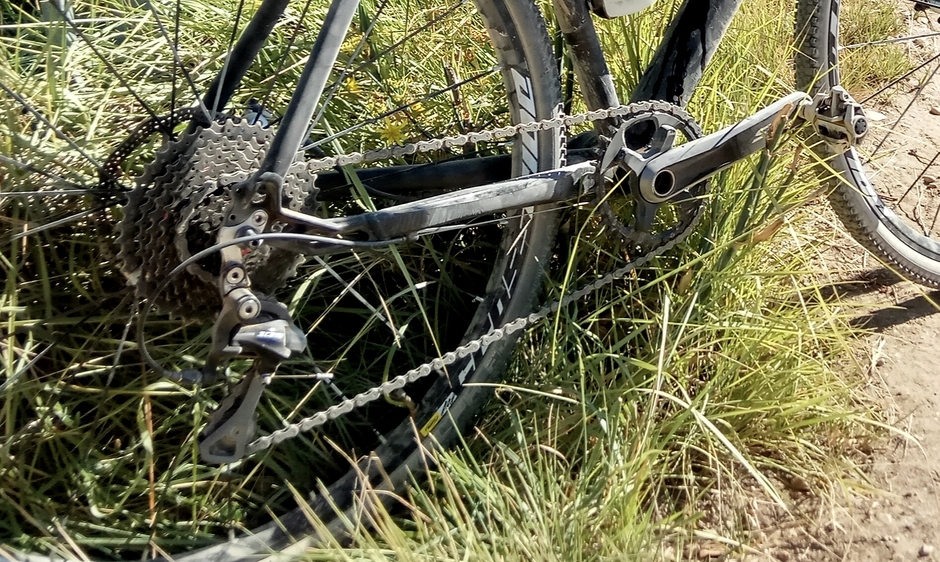

Added a Roadlink to provide enough room for the rear derailleur to take the big 42 cog. No need to change the B tension bolt nor to enlarge the chain.
Bike History
Click a link below to see past stages of this bike.
Current Stage Info:

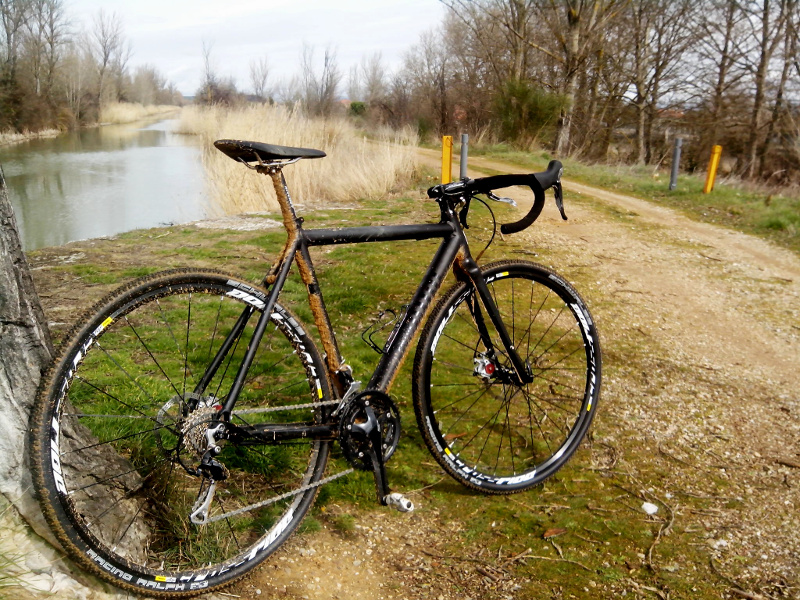

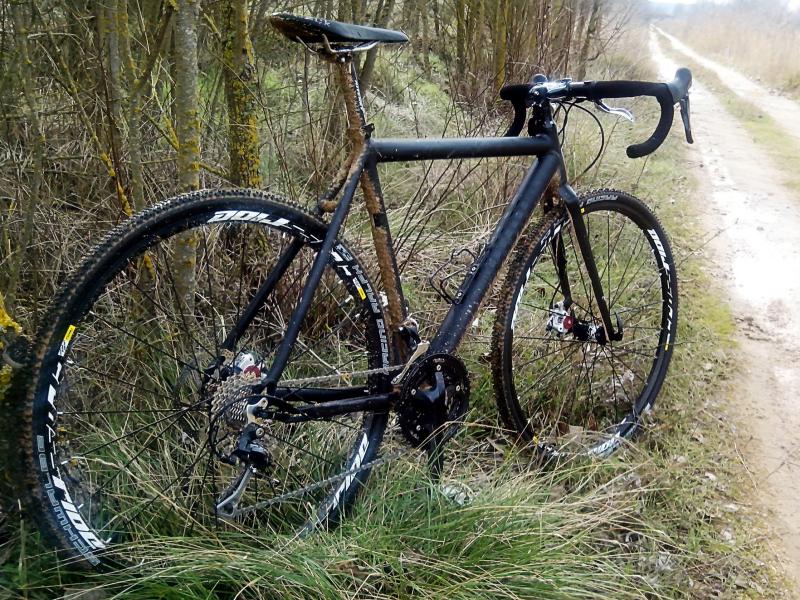

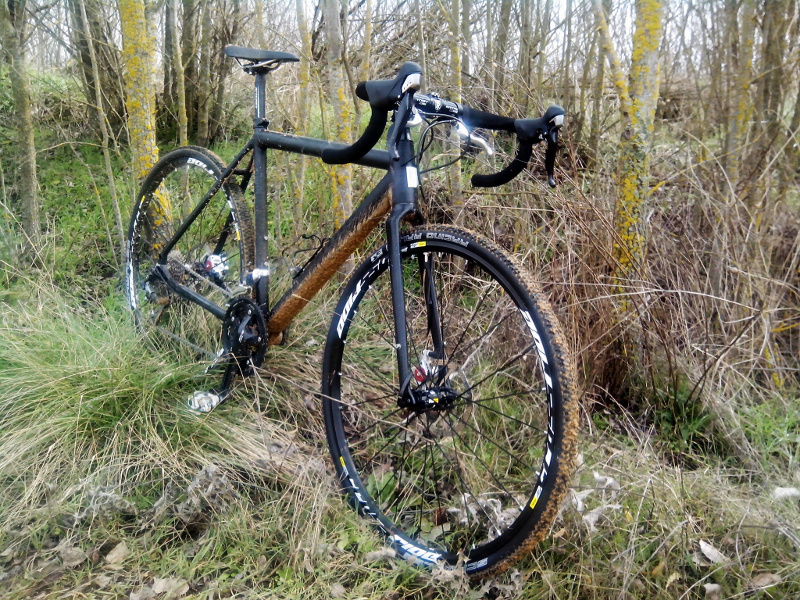

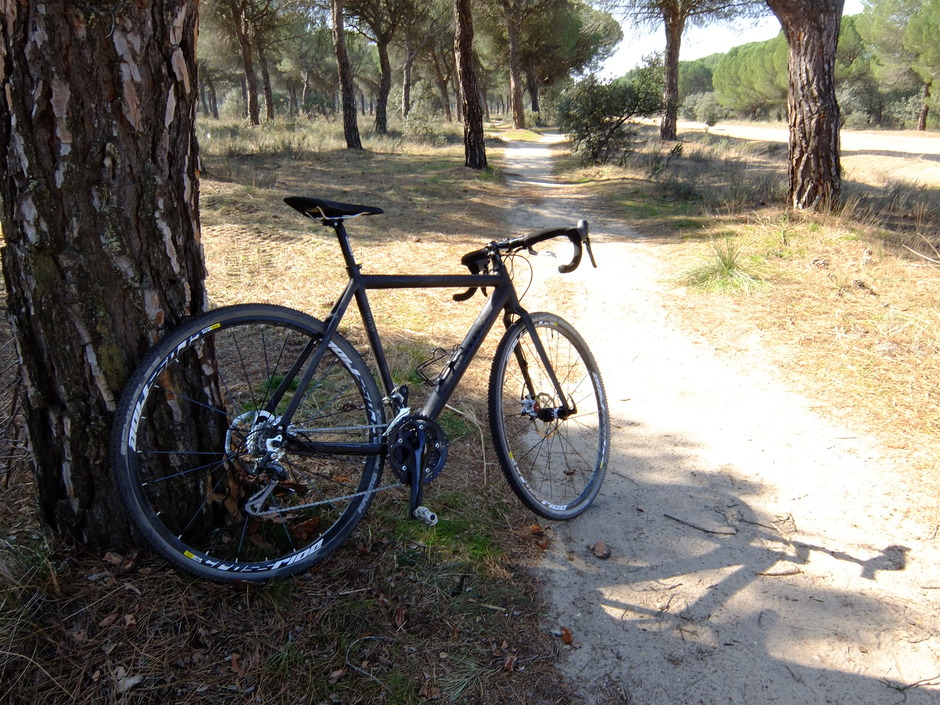

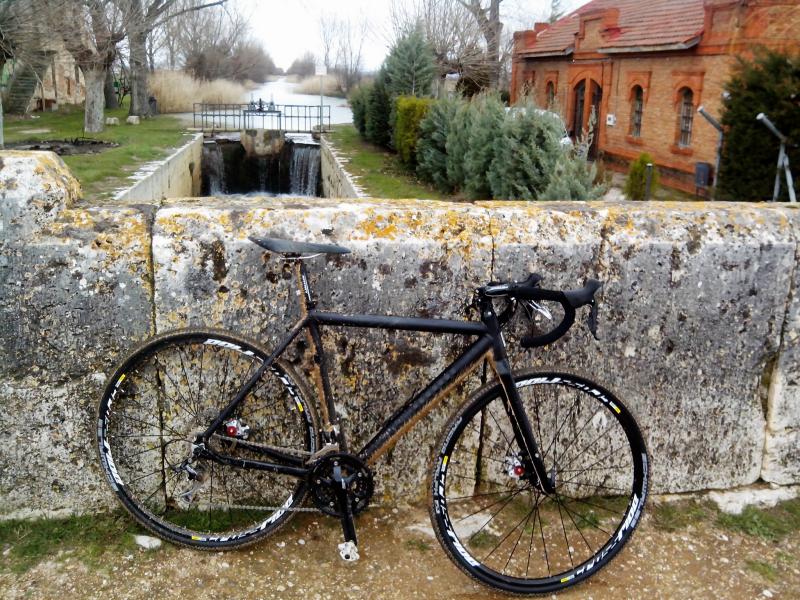

Switch from the original triple chainring and a Sram 1050 11-32 cassette to a single chainring and 11-42.
Added by txeke. Last updated almost 7 years ago.
4 Comments
Photos
xorg says:
Woah! Nice build! Looks like an awesome gravel grinder!
Does the shifting work ok with the Roadlink? I've seen that Wolftooth officially only supports 11-40 cassettes.
Posted about 6 years ago
txeke says:
Hi! Thank you!
It works smoothly, more than one year with that configuration and I'm totally happy. In fact, I'm sure it could get a 44 without problems, and even a 46 - but I didn't tried yet, because for my area the 36x42 is perfect.
Posted about 6 years ago
xorg says:
Is it the short cage or medium cage version?
Posted about 6 years ago
txeke says:
My derailleur is the long cage, is the 105 for the 3x10 (Shimano RD-5703)
Posted about 6 years ago
