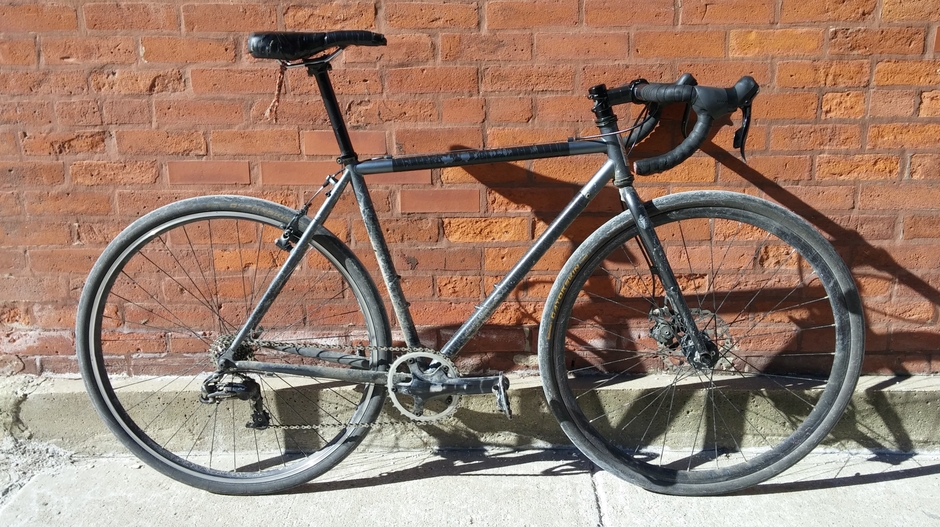

My everyday, do-it-all bike. I work delivery on it ~250mi a week. I love it to death, it's incredibly smooth and quick. It's a 1x10 geared to fit Chicago's flat roads, the 42x14-18 cluster is where I spend the majority of the time. Comes in at 22lbs flat, which I think is pretty solid for an all steel bike. Weight could drop to mid-20lbs with a carbon disc fork (690g) as opposed to steel (1040g), and a Selle saddle (~250g) as opposed to the Serfas (430g). Upgrades coming when the weather improves: Wheelset: Kinlin XR-31T O/C to DT Hugi-Hayes 32H front, Velocity A23 O/C to DT Onyx 32H rear Saddle: Brooks B17 Imperial Stem: Thomson X4 (80mm, 10deg, 31.8) Seatpost: Thomson Elite (setback, 27.2, 330mm) Tires: Schwalbe Marathon Supreme (700x32c)
Frame:
Soma Double Cross (52cm, Graphite)
Fork/Headset:
Salsa Vaya (700c, 50mm rake) /// Cane Creek 40 Series (1-1/8)
Crankset/Bottom Bracket:
Shimano 105 (170mm, 130mm bcd, FC-5700) /// Shimano XT (SM-BB70)
Pedals:
Shimano PD-A530
Drivetrain/Cog/Chainring/Chain:
Custom SRAM mix 10s cassette: 12, 13, 14-18, 21, 23, 25 /// 42T Shimano BioPace (in Rotor/Osymetric orientation) /// KMC X10.93
Derailleurs/Shifters:
SRAM X7 Type 2 (medium) /// SRAM S500 left brake lever, SRAM Apex 10s right rear brifter
Saddle/Seatpost:
Serfas MH-RX Performance /// Thomson Elite (straight, 27.2, 330mm)
Brakes:
Avid BB7 Road S (Shimano SLX 160mm, SM-RT66) /// TRP CX8.4 w/ Kool Stop Salmon V-Brake pads
Front Wheel/Hub/Tire:
Kinlin XR-270 (28h, bladed) /// Vuleta Pro SL Disc /// Continental Gatorskin (700x32c)
Rear Wheel/Hub/Tire:
Velocity A23 O/C (32h, Sapim Race) /// Shimano 105 (FH-5700) /// Continental Gatorskin (700x32c)
Accessories:
Clip-on Planet Bike Speed-EZ full fenders, MetroFlash Ignita front light, Cygolite Hotshot SL rear light
More Info:
Set up as a single speed (53:20 w/ chain tensioner) for a few months in summer to remember the struggle =p
