Titanium Hour record bike Mock up

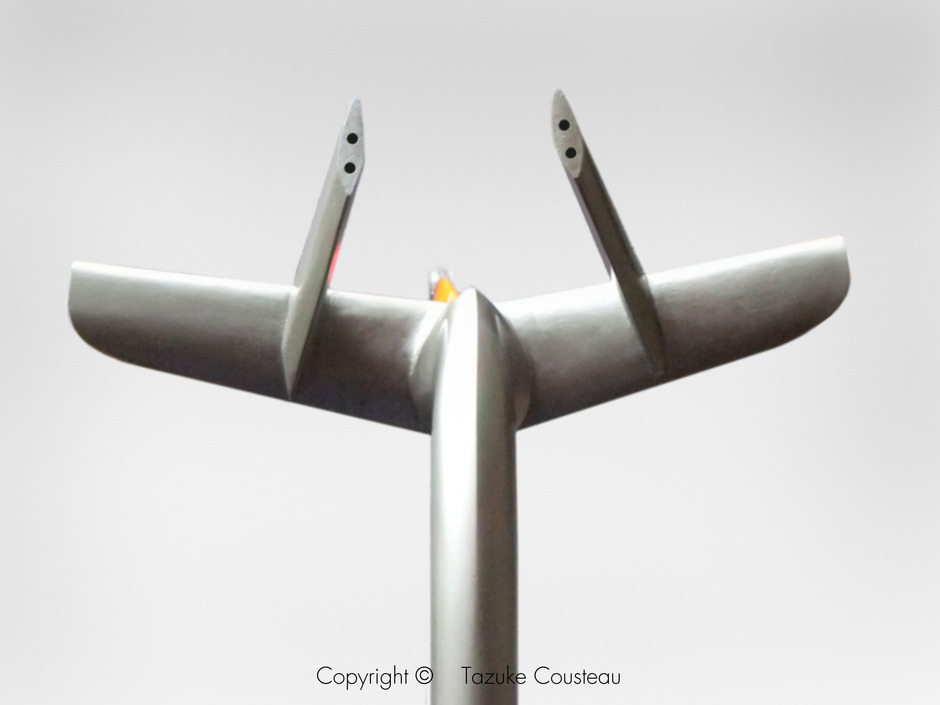

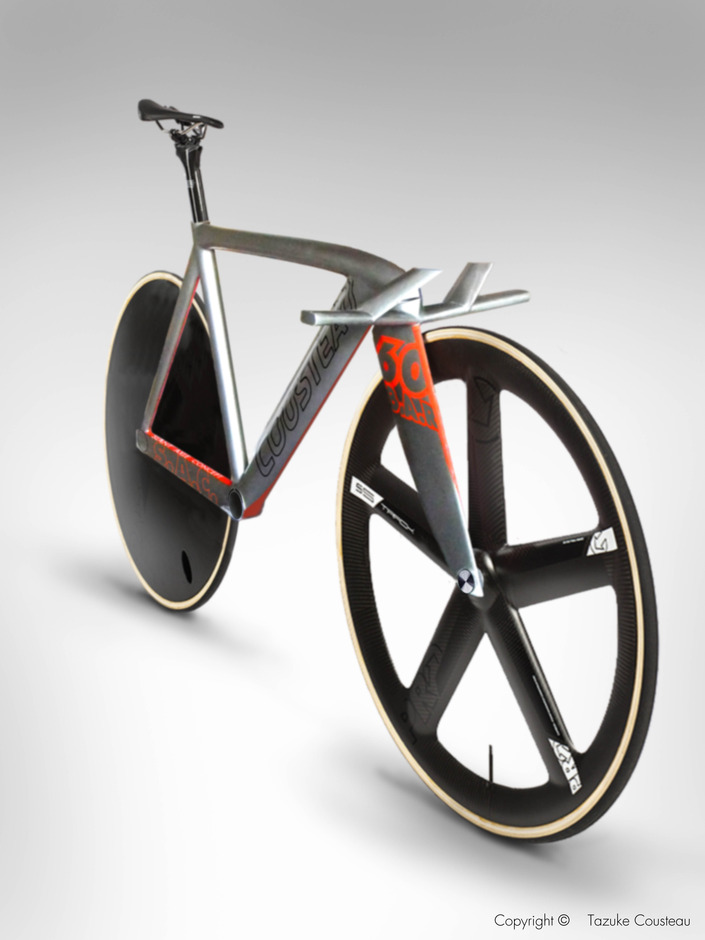

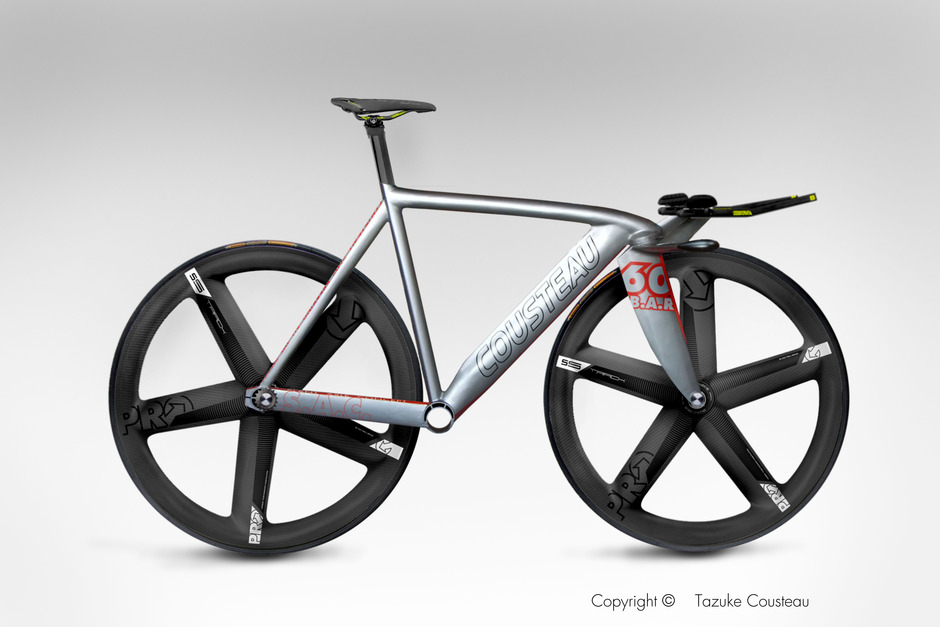

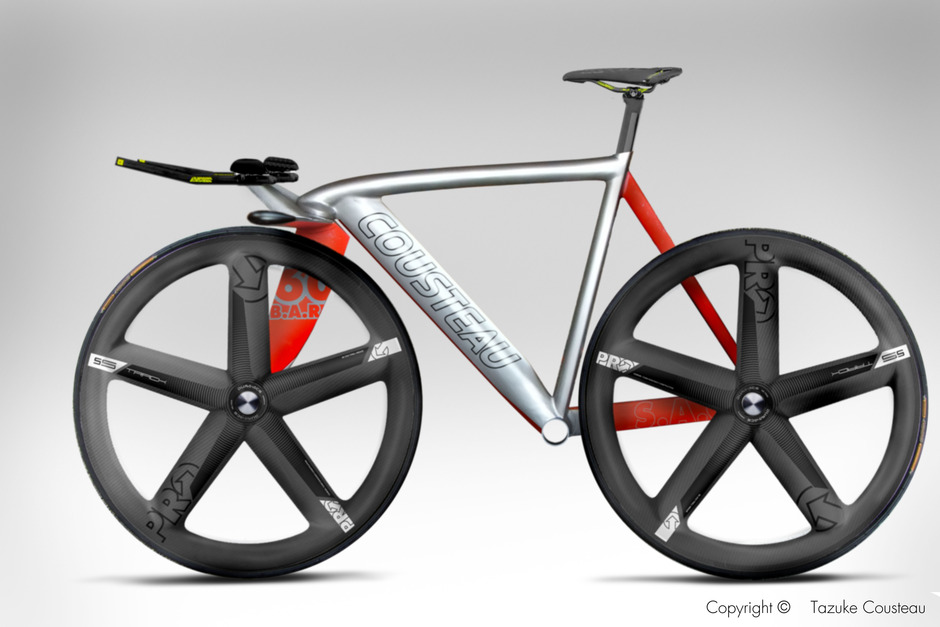

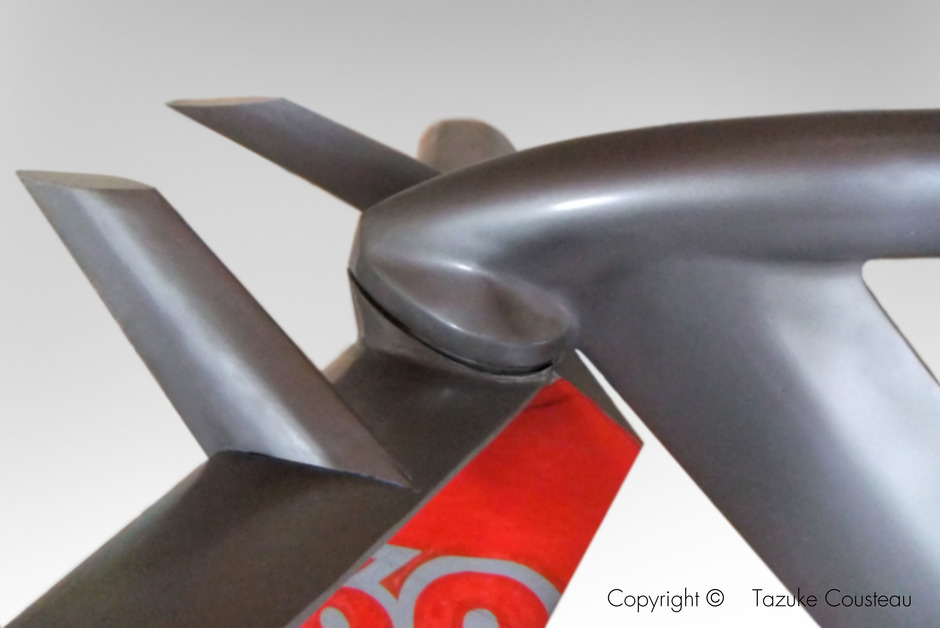

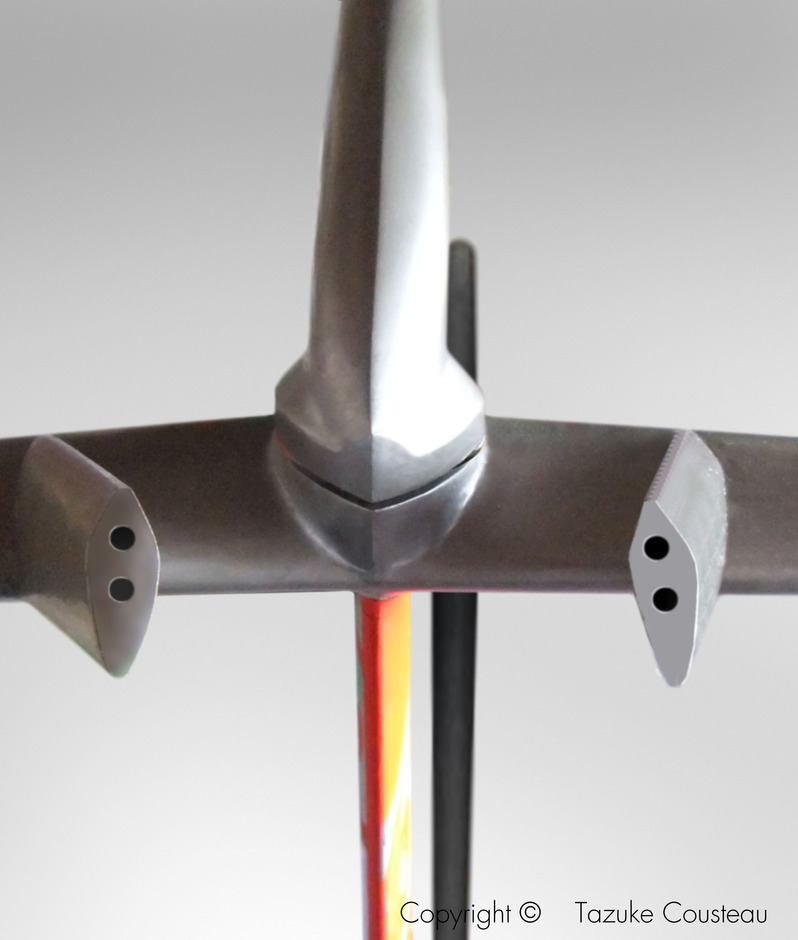

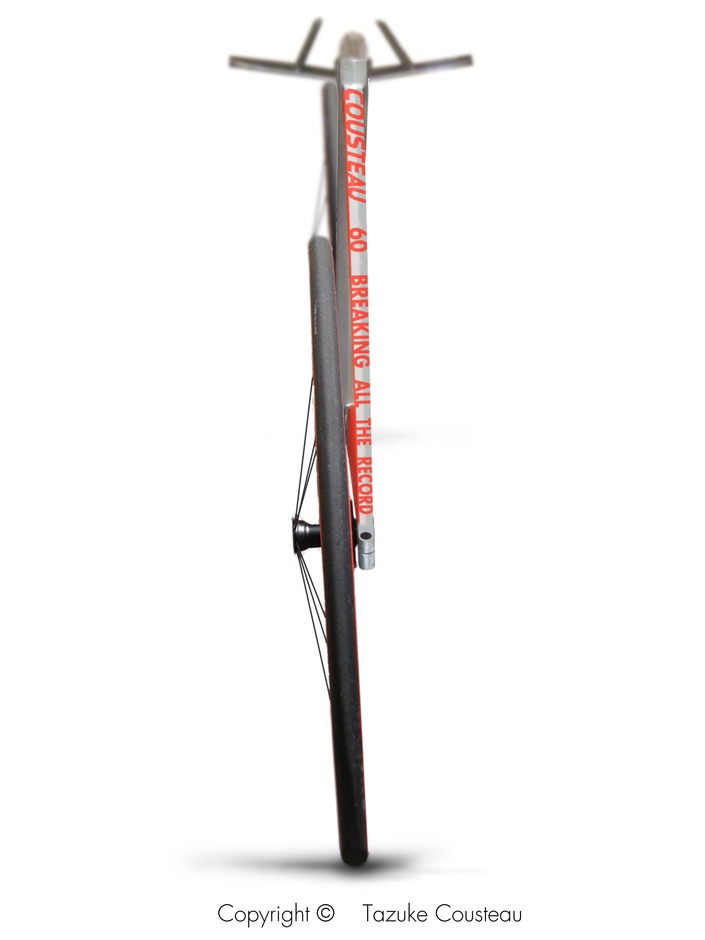

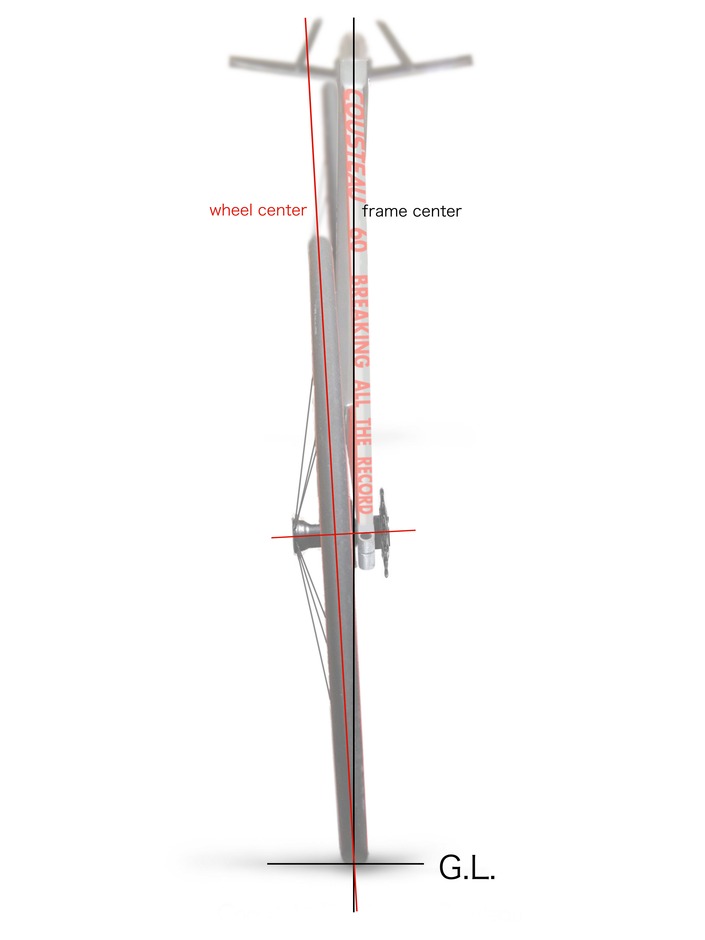

New Bicycle ADVANCED pursuit / hour record bike concept It is characterized by a head design and a tilted axle which have never existed. this concept bike is made from titanium. It is scheduled to be produced within this year.

Added by cousteau. Last updated almost 8 years ago.

14 Comments

RSchwentke

RSchwentke says:

100 points concerning aesthetics! love it!

Posted almost 8 years ago

RSchwentke

RSchwentke says:

bb is only 40 mm, so you need a special crankset?

Posted almost 8 years ago

cousteau

cousteau says:

Thank you for your praise
The crankset cuts the axis of slam omnium or sugino DD and uses it.
It can be made cheaper than square taper.

Posted almost 8 years ago

Blokk

Blokk says:

this looks way beyond a students project. keep the great work up! btw: the cumbot is just jealous.

Posted almost 8 years ago

cousteau

cousteau says:

Thank you for encouraging.

Posted almost 8 years ago

CUMBOT

CUMBOT says:

wait, this isn't 3d?!

Posted almost 8 years ago

CUMBOT

CUMBOT says:

now i'm jealous indeed. oO

Posted almost 8 years ago

cousteau

cousteau says:

Only the frame is not 3D
The wheel is 3D.

Posted almost 8 years ago

CUMBOT

CUMBOT says:

why building a track bike out of titanium? especially for something for a "record breaking" purpose this seems more like a student's project.

Posted almost 8 years ago

cousteau

cousteau says:

This is a self-build.
I can not use carbon and can only weld

Posted almost 8 years ago

cousteau

cousteau says:

sorry i remove yourcomment

I have experience in processing titanium.
But this complex bending can not be done
because Return the tube to the plate and use it for the blade section.

Posted almost 8 years ago

cousteau

cousteau says:

The bending process is complicated so I made a mockup.

Posted almost 8 years ago

CUMBOT

CUMBOT says:

good luck with that anyway. looking forward to see the final result.

Posted almost 8 years ago

cousteau

cousteau says:

Thank you CUMBOT

Posted almost 8 years ago
