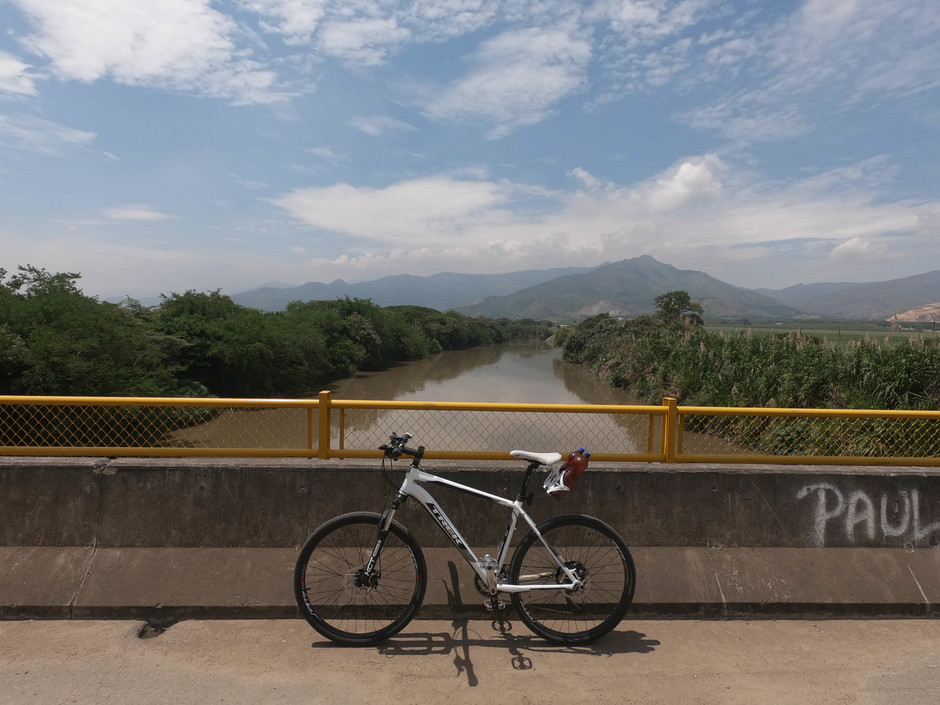

Trek 4500 (2013) (Sold)

This was my main mountain / city bicycle. The frame geometry of this bike, allowed it to be upgraded to 27.5" rims / wheels, as long as the tires were kept small. This is what i did for v.2 of this bike. I rode 2436.5 km on this bike before it was upgraded to v.2. This bike was sold on 2021.04.15

Frame:
Trek 4500 Alpha Gold Aluminum (2013)

Fork/Headset:
SR Suntour XCT HLO Suspension Fork 26" 1-1/8" Threadless Steerer, 100mm Travel with progressive locking. Headset: Original Bontrager / Trek.

Crankset/Bottom Bracket:
Shimano FC-M430 Alivio 44-32-22, BCD: 104mm, with 175mm hand-polished 9 Speed Octalink cranks + Shimano Octalink Bottom Bracket 73mm, chainline = 50mm

Pedals:

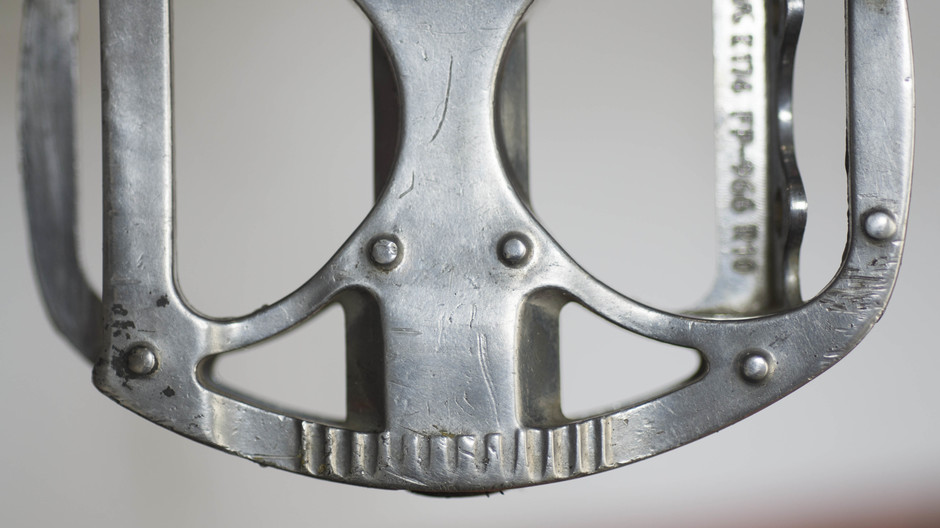

Feimin FP-966 Aluminum

Drivetrain/Cog/Chainring/Chain:

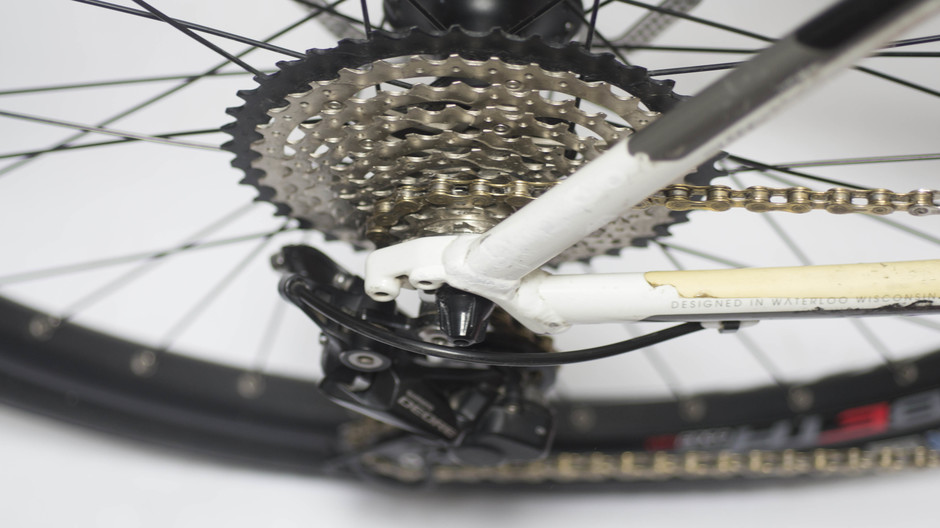

Cassette - Shimano CS-HG500 Deore 10-speed Cassette 11-42t. Chainrings: Shimano Alivio 44t, Shimano Zee 36t., 104mm BCD. Chain: YBN 10 speed SLA-H10 Lightweight 10 Speed 116 Links - Gold

Derailleurs/Shifters:

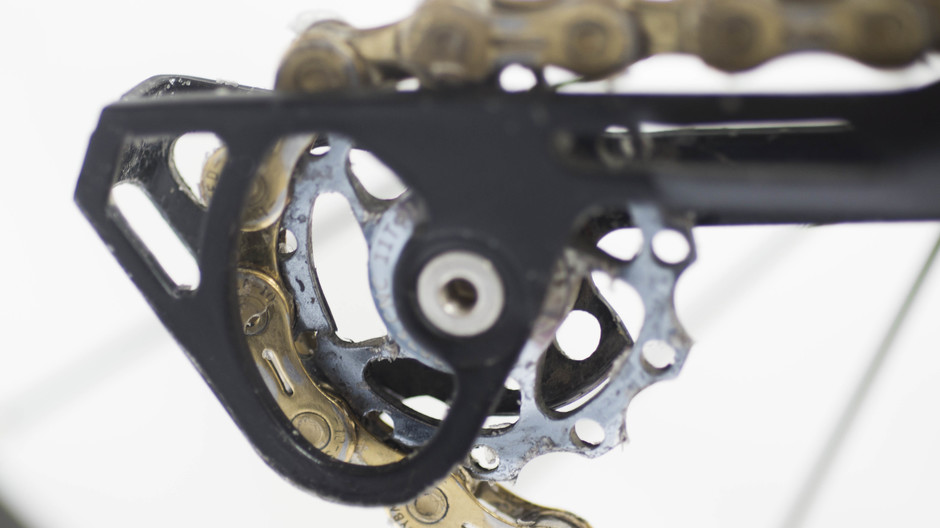

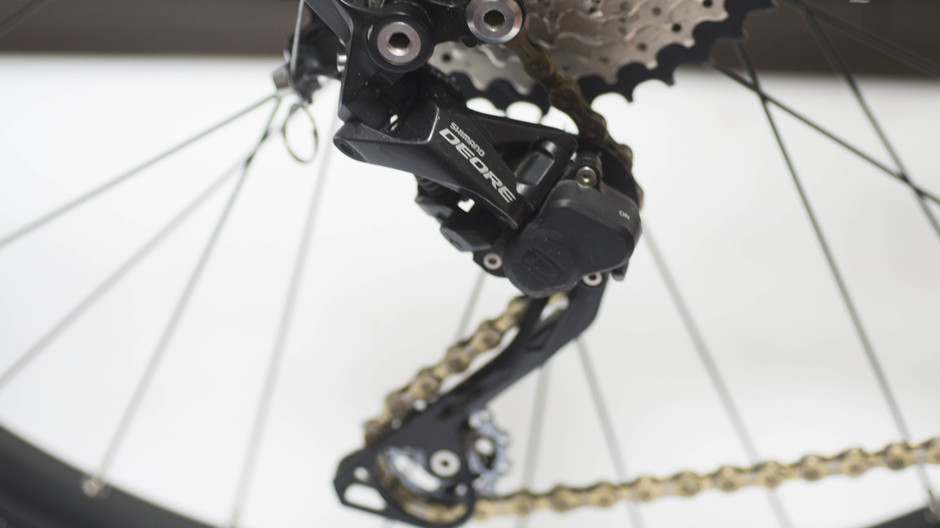

Shimano RD-M6000-GS Deore 10-Speed rear derailleur with aluminum pulley set. Shimano FD-M6025 Deore front 2x derailleur, Shimano SL-M6000 Deore Shifters 2-3 10-Speed

Handlebars/Stem:
Ritchey 31.6mm Alloy Handlebars (Purchased new but probably Fake), Bontrager RXL 7050-T6 aluminum 7 degree x 100mm x 31.8mm stem

Saddle/Seatpost:
Bontrager Evoke 1 Saddle, Bontrager SSR 31.6mm - 400mm alloy seatpost with 20mm setback, Epoch Quick-release Alloy seatpost clamp without lever (for security reasons)

Brakes:
Avid 7 MTN G2 Brakes with Avid HS1 160mm rotors and Avid Speed Dial 7 Grey Levers

Front Wheel/Hub/Tire:
Shimano HB-M525A Deore hub with GW Beta 650B max 36h rims with eyelets, laced with 4 crossed black spokes. Tire: CST 650B Captain Hat compound, 27.5" x 1.75"

Rear Wheel/Hub/Tire:

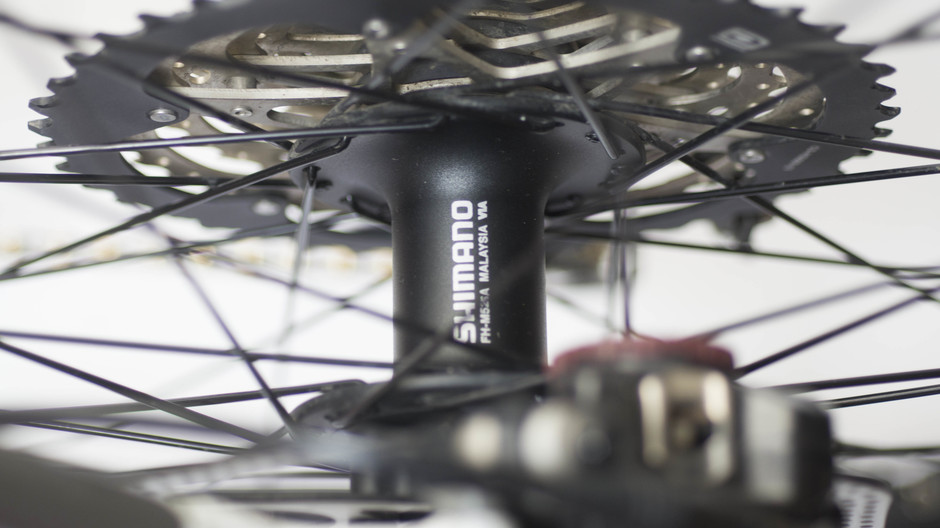

Shimano FH-M525A Deore hub with with GW Beta 650B max 36h rims with eyelets, laced with 4 crossed black spokes. Tire: CST 650B Captain Hat compound, 27.5" x 1.75"

Accessories:

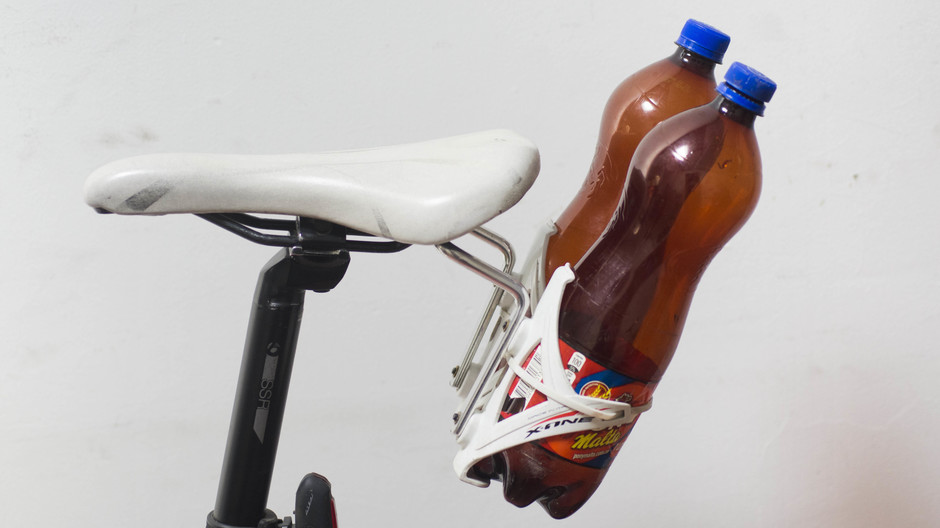

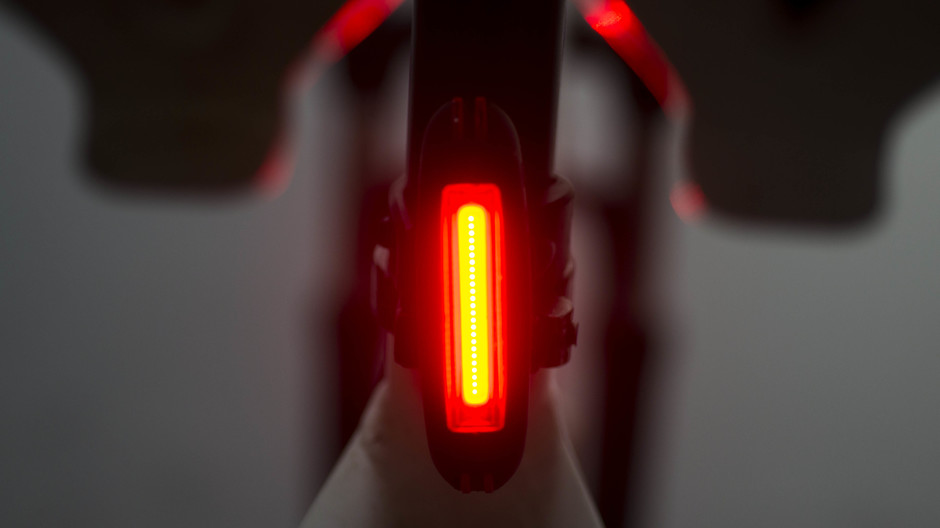

Cheap, Black locking Endurance Grips. GW USB red seatpost tail light. Double Water Bottle Saddle Holder with Two RaceOne X1 Water Bottle Cages and two One-Liter Malt Soda (Pony Malta) Bottles.

More Info:
Weight 15.5 kg = 34.17 lbs

Bike History

Click a link below to see past stages of this bike.

  1. Trek 4500 (2013) v.1
  2. Trek 4500 (2013) v.2
  3. Trek 4500 (2013) v.2.1

Current Stage Info:

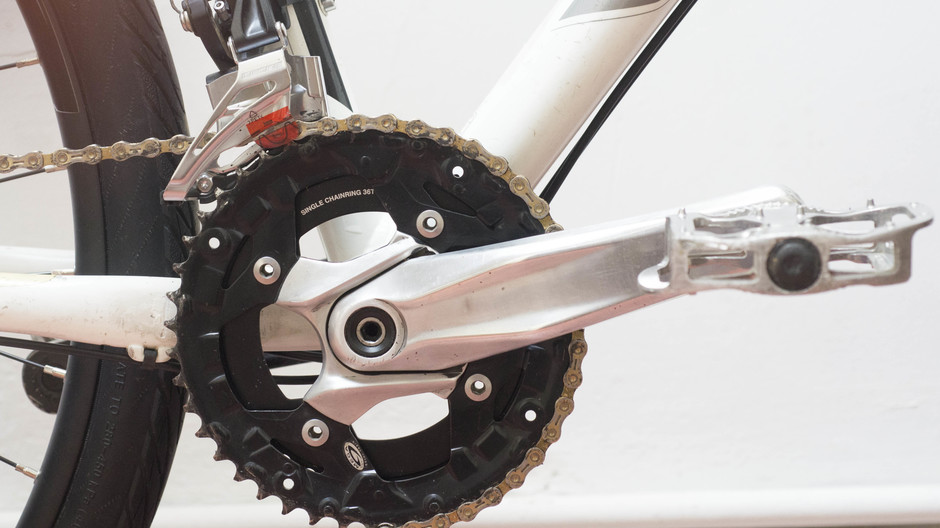

7-Changed worned out 34t chainring to Shimano 36t Zee chainring
8-Since the 36t chainring was too big for the old derailleur, I changed front derailleur to a 2x Shimano FD-M6025

Added by TWB-Third-World-Biker. Last updated over 3 years ago.

As of over 3 years ago, TWB-Third-World-Biker has indicated that they no longer own this bike.
