Kory York K2

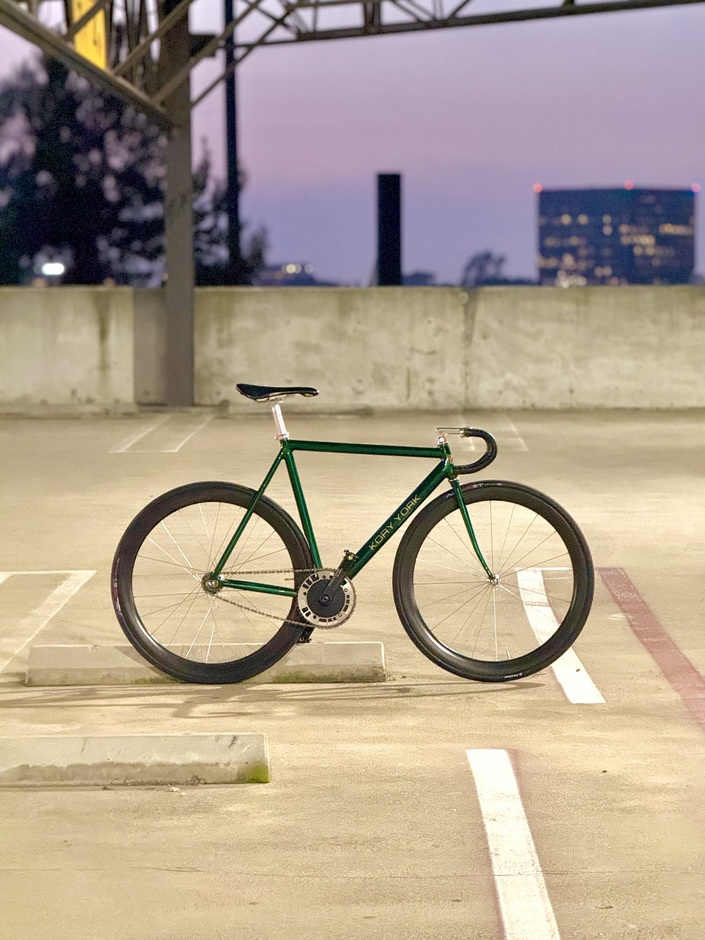

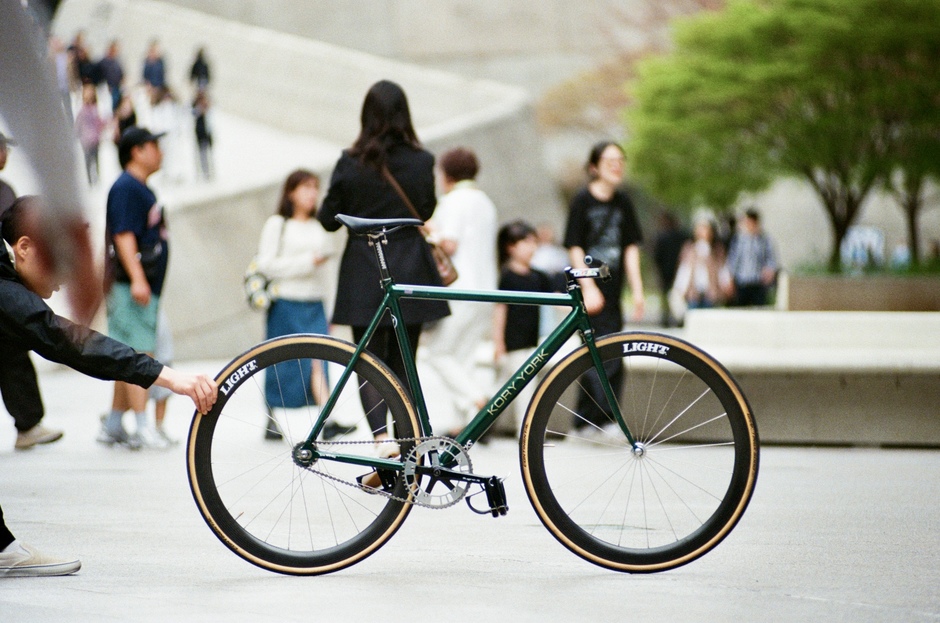

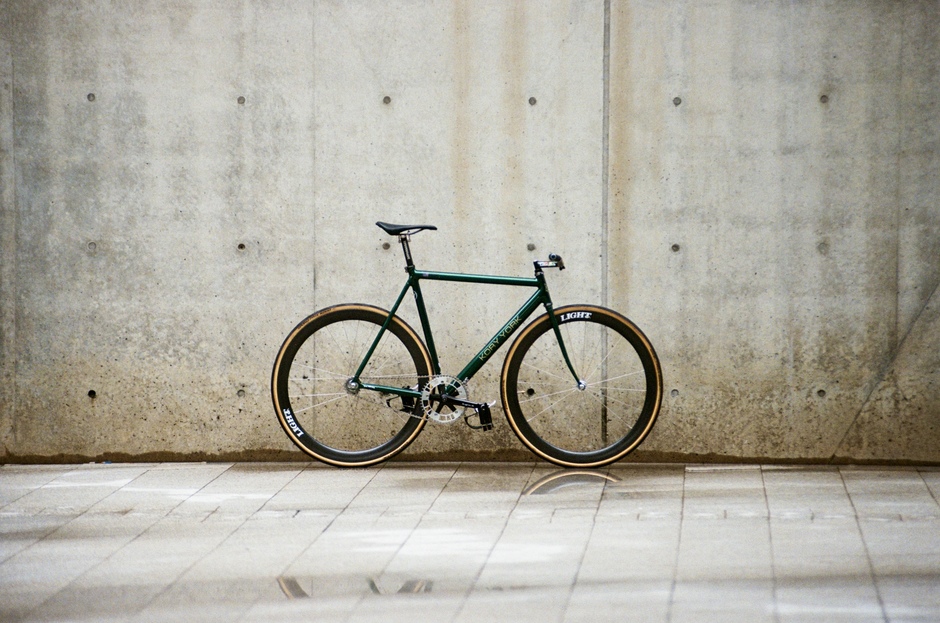

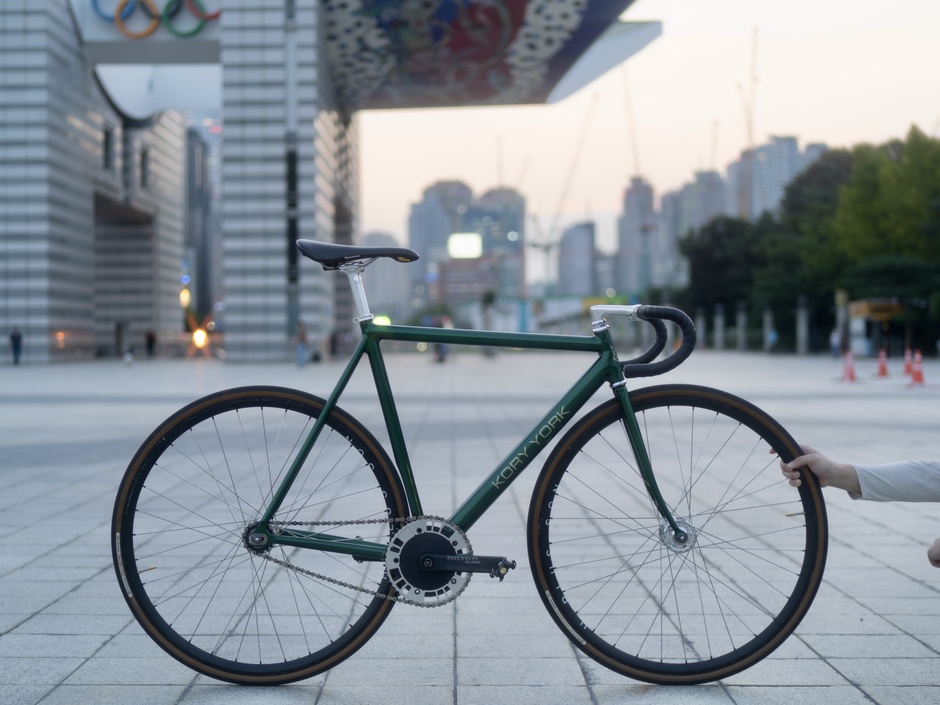

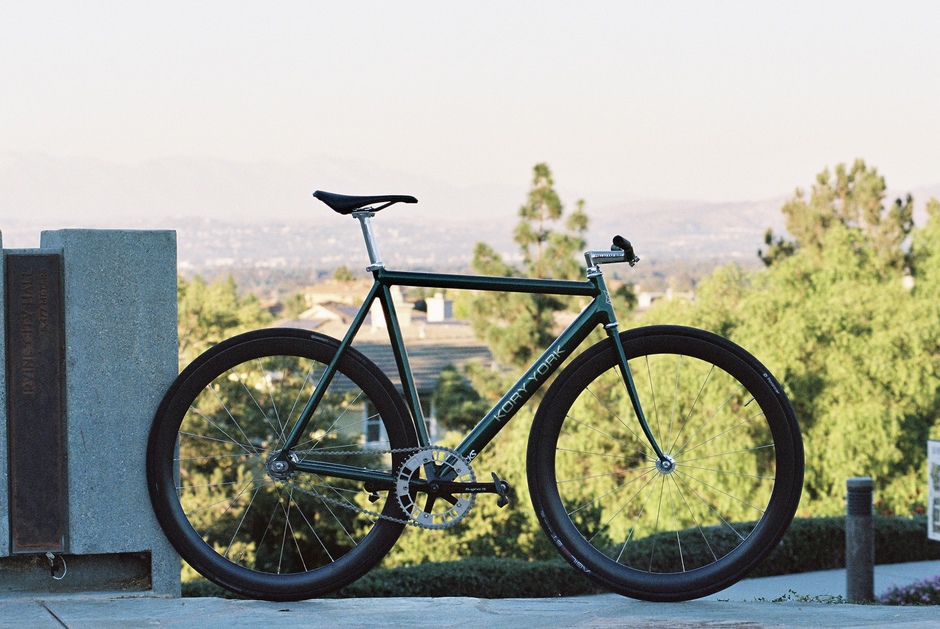

What if Cannondale were to revive its legendary Cannondale Track, back in its pure, original form? We were all somewhat disappointed when each revival was nothing like the original. Enter Kory York, a small Italian company, set on the belief that handcrafting is the real key to doing it better. Inspired by, or should I say to pay homage to the legend, Kory York released the K2, taking it into their own hands to give what the people yearned for. Ever since they released the K2 model back in 2017, I was obsessed in this modern recreation of the original Cannondale track. Few years later, I finally saved up enough to build my dream bike from my childhood. Maintaining the tight geometry, if not tighter than the original, this bike rides even better than it looks. I also opted for a custom paintjob, based on the original Icelandic green with golden logos that glimmer in the sun. Continuing on with the modern revival theme, the whole bike is built up using modern counterparts of classic parts: deep section carbon rims from light bicycle laced to Mack hubs with a combination of high and low flange, inspired by the Zipp 440 wheelset with some flare; Rotor cranks with an AARN chainring, paying homage to the Sugino CHCD cranks, etc. Switching between couple of cockpits to go with the bike, the drops are of a modern compact silhouette, and the riser setup straight from the 90s. To make the bike comfortable for longer rides, I opted for a simple looking cutout saddle. Here I present my pride and joy: 2021 Kory York K2, my dream build after 8 years of riding strictly fixed gear bikes. I dedicate this bike, to my past grandfather. Guiding me through my life, just as this bike does.

Frame:

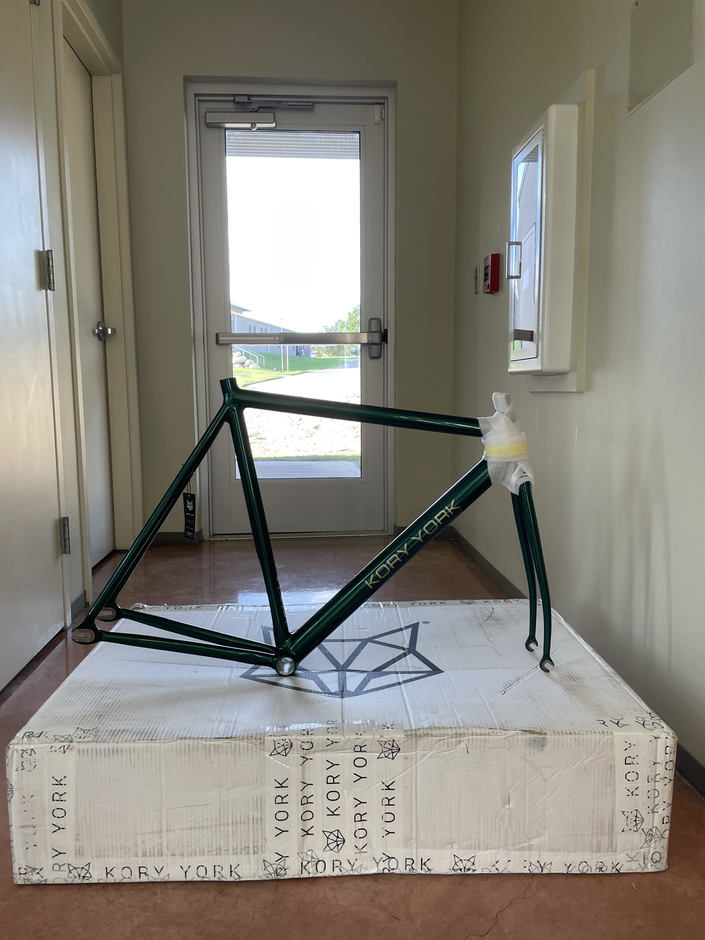

2021 Kory York K2 size M, custom painted

Fork/Headset:
Kory York R28 | Tange Levin

Crankset/Bottom Bracket:
Sugino 75 Black | Sugino Loose Ball Bearing BB | Sugino Steel Chainring Bolts

Pedals:
Ritchey WCS XC | Chrome shoes

Drivetrain/Cog/Chainring/Chain:
Phil wood 17T | Mack Lockring | AARN 49T | D.I.D Racing Pro chain

Handlebars/Stem:

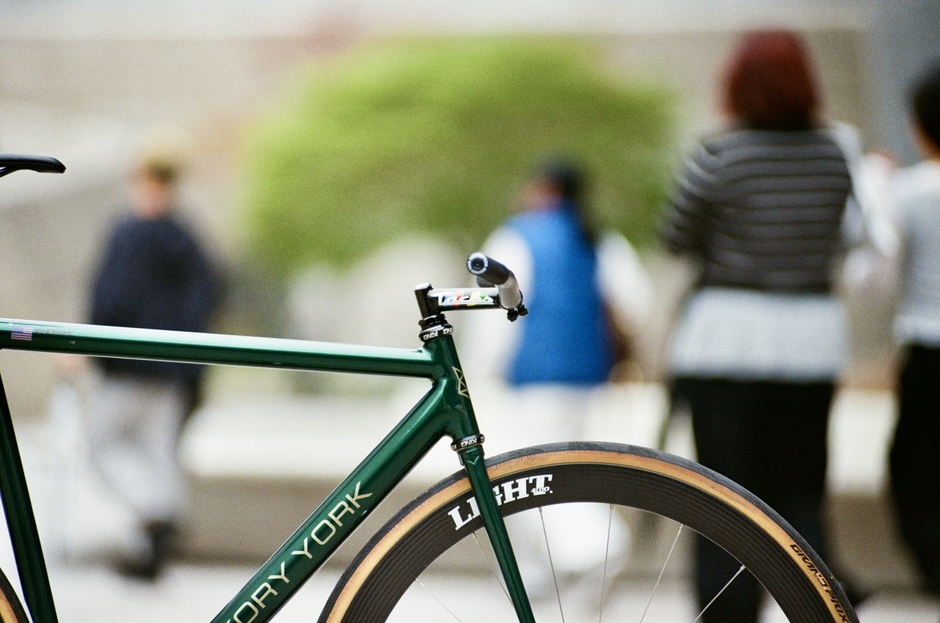

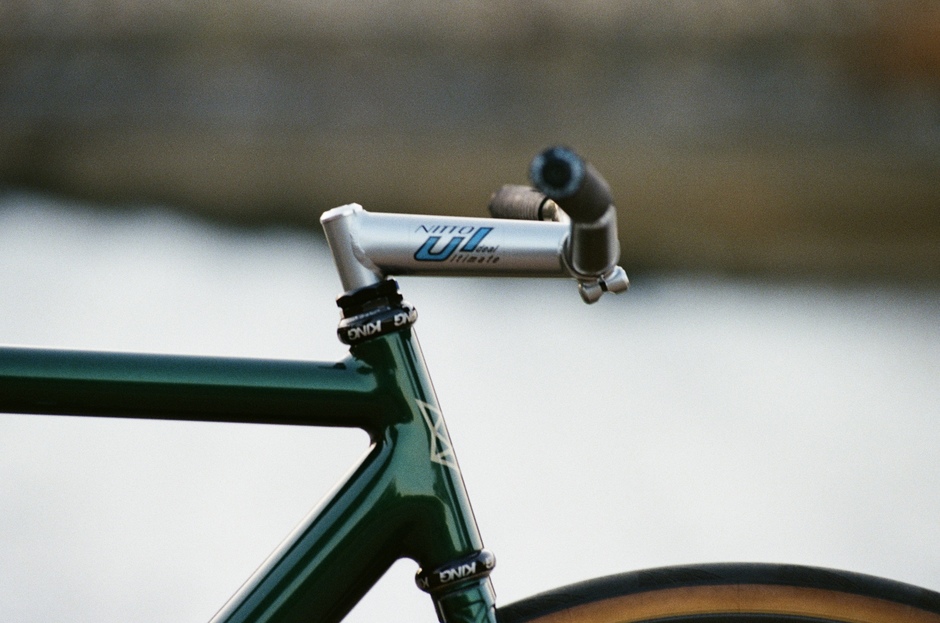

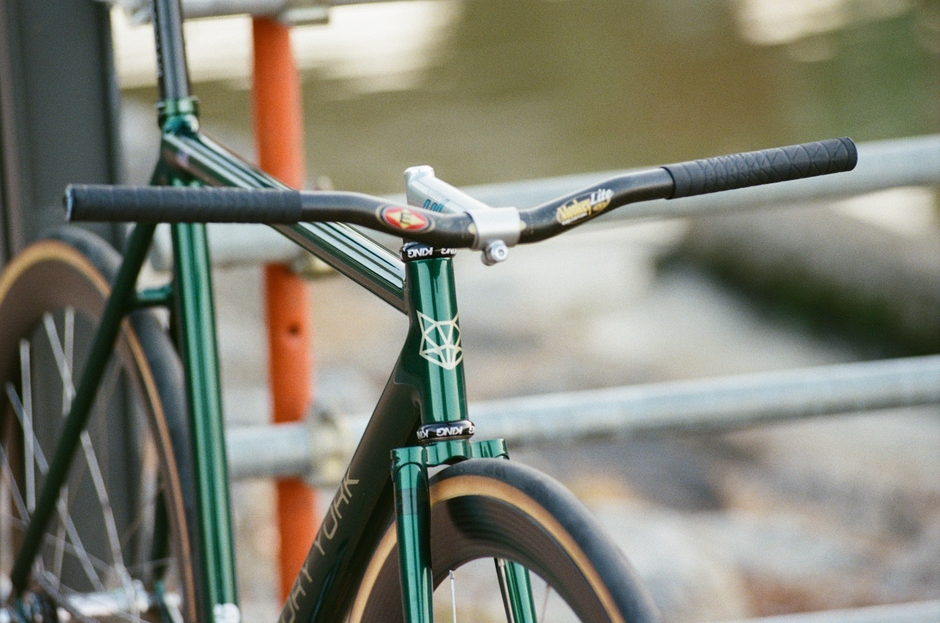

Easton Monkey Lite CT2 510mm | Champ Yoshida grips | ITM Eclypse 100mm

Saddle/Seatpost:

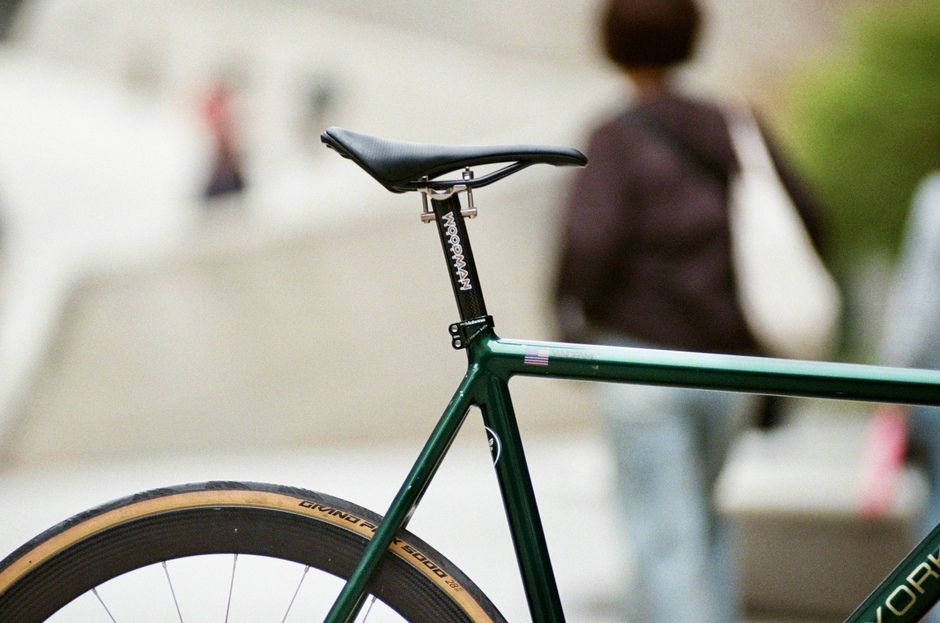

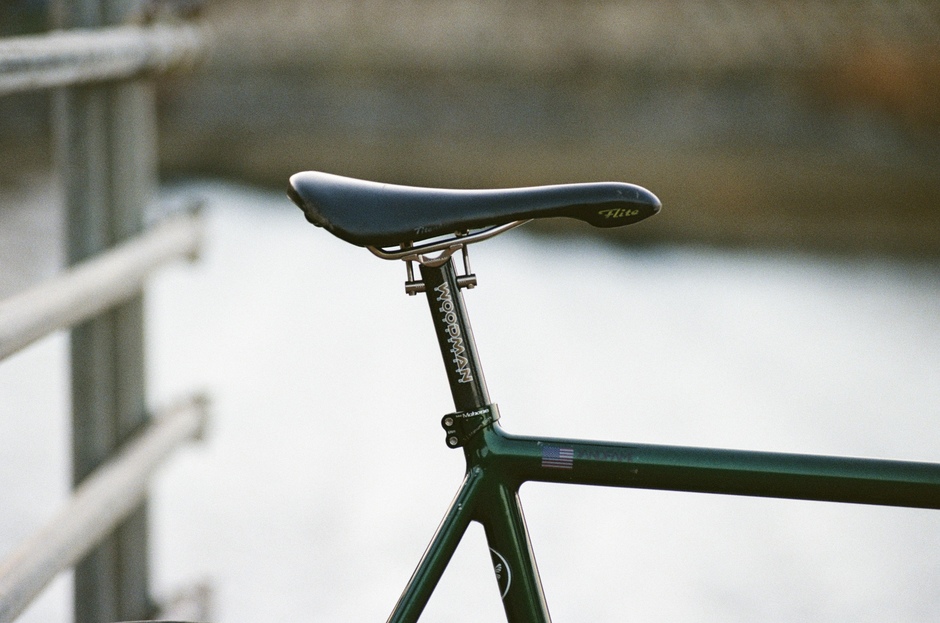

Specialized Romin Evo Expert | Simworks Froggy Setback Seatpost | Merida Seatpost Clamp (Not shown in picture)

Front Wheel/Hub/Tire:

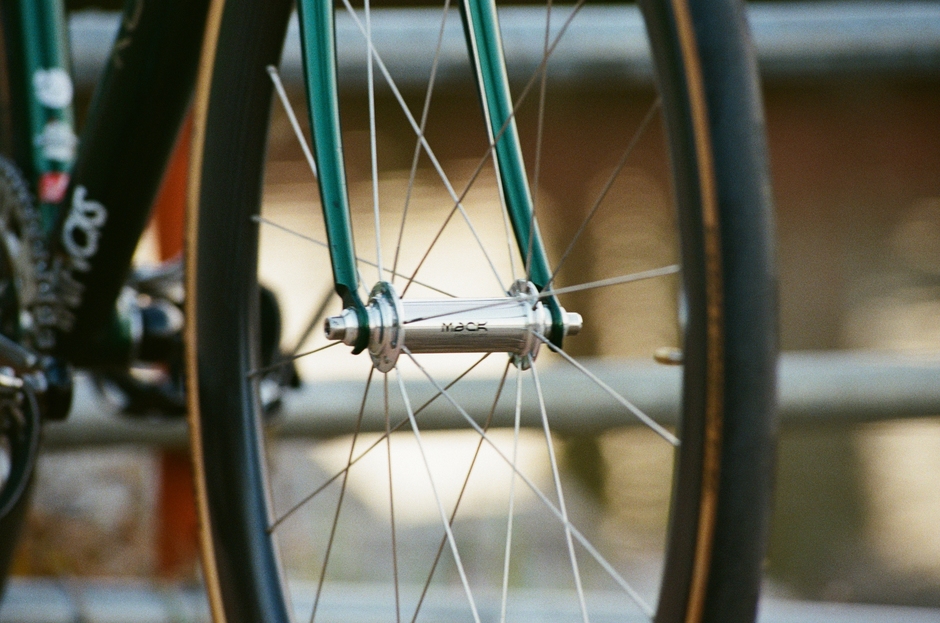

Light Bicycle AR46 Disc horizontal 3k weave | Sapim Laser | Mack Low Flange 20h | Panaracer Agilest 28C

Rear Wheel/Hub/Tire:
Light Bicycle AR46 Disc horizontal 3k weave | Sapim Laser | Mack High Flange 24h | Continental Gatorskin Black Edition 25C

Bike History

Click a link below to see past stages of this bike.

  1. Aug 16, 2022
  2. Sept 22, 2022
  3. June 24, 2023
  4. Sept 12, 2023
  5. Jan 16, 2024
  6. Feb 2, 2024
  7. June 2, 2024
  8. Sept 12, 2024

Current Stage Info:

Durability is one of the main concepts of fixed gear bikes. Rotor crankset has been causing me stress due to its eventual failure(as in developing creaking noises) due to its design. Therefore I jumped at the chance to swap my cranks with my friend, and acquired this pristine sugino crankset. Also my seatpost clamp was slipping & I stripped the hex. So for a temporary solution I got a Merida clamp for basically free. Better pictures coming soon!

Added by ryanrla. Last updated 2 months ago.

20 Comments

albert88

albert88 says:

super cool

Posted 5 months ago

akahenry

akahenry says:

Do you recall the spoke lengths that you went with for both the front and rear wheels? Which calculator did you use to determine the spoke lengths by the way?

Very interested in doing something similar to yours!

Posted 5 months ago

vxarea

vxarea says:

use iliketrackbike.com and calculatge yourself

Posted 5 months ago

past

past says:

hope youre looking for black itm

Posted 5 months ago

Karl

Karl says:

You are clearly damn skilled at piecing things together. Massive respect! Quite jealous with this one...

Posted 5 months ago

ryanrla

ryanrla says:

What an honor! Couldn't have made it more presentable without your photo tips

Posted 5 months ago

_rd

_rd says:

Really appreciating your attention to detail with this build - the bike looks great. Loving the LF front and HF rear hub choices. Matching hubs are great and all but I feel like HF front hubs look a little out of place on small-silhouette steel forks.

Posted 6 months ago

ryanrla

ryanrla says:

Hi, I always wanted to explain why I chose to do this. The goal was to make it seem like there are no hubs- small low flange gets almost hidden behind the steel fork, and for the rear, it looks like the spokes are coming out straight from the cog. Most people nowadays love high flanges, but on my previous wheelset I thought it looked out of place. Overall I tried to make the whole bike as simple & sleek as it could be, as seen on the seatpost clamp, valve caps, thin clamp on the stem, thin track grips, etc. Not the most traditional approach you could say

Posted 6 months ago

_rd

_rd says:

It came out really well. I'd definitely go LF/HF on my next track wheelbuild. Didn't notice the minimalist seatpost collar on the first look, that's a neat design. Bike came out great.

Posted 6 months ago

jdawg4334

jdawg4334 says:

Wow, this is amazing

Posted 6 months ago

jankoenig00

jankoenig00 says:

Ayo whaddup

Posted 6 months ago

SonicOnDrugs

SonicOnDrugs says:

Nice build

Posted 6 months ago

EMannBikes

EMannBikes says:

DAMN this thing is immaculate.

Posted 10 months ago

vxarea

vxarea says:

Amazing

Posted 10 months ago

NicolasCalifornia

NicolasCalifornia says:

nice

Posted about 1 year ago

ianiscaratti

ianiscaratti says:

gives me some cannondale vibes

Posted over 1 year ago

metatronic1123

metatronic1123 says:

I really dig this build, not usually a fan of rotors + Threaded headset, but its growing one me!

Posted almost 2 years ago

GhostRidingTheWhip

GhostRidingTheWhip says:

+1

Posted almost 2 years ago

LookNoHands

LookNoHands says:

Not usually a fan of rotors but with the AARN it goes hard. Loving the new meets old vibe on this build!

Posted about 2 years ago

ryanrla

ryanrla says:

Appreciate it! As time passed it's definetly gone more modern than classic, but glad you like it

Posted 5 months ago
