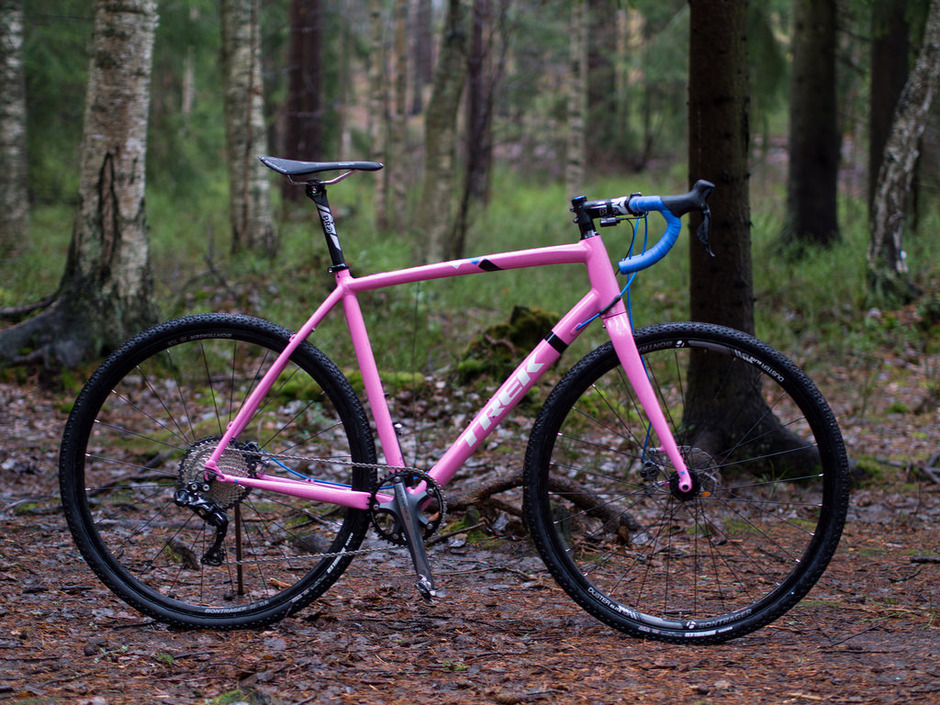

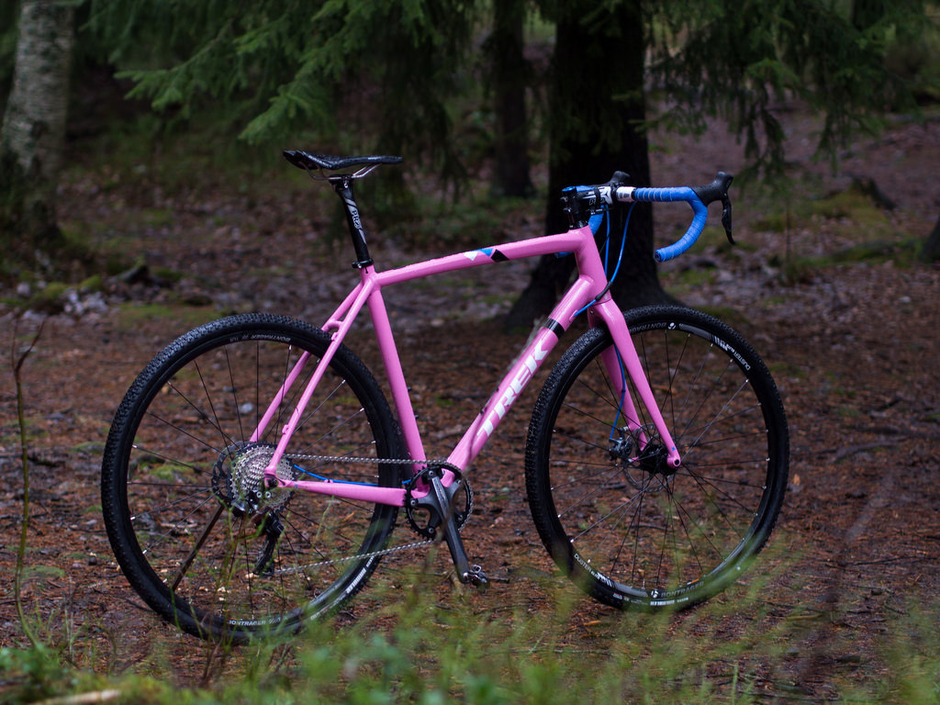

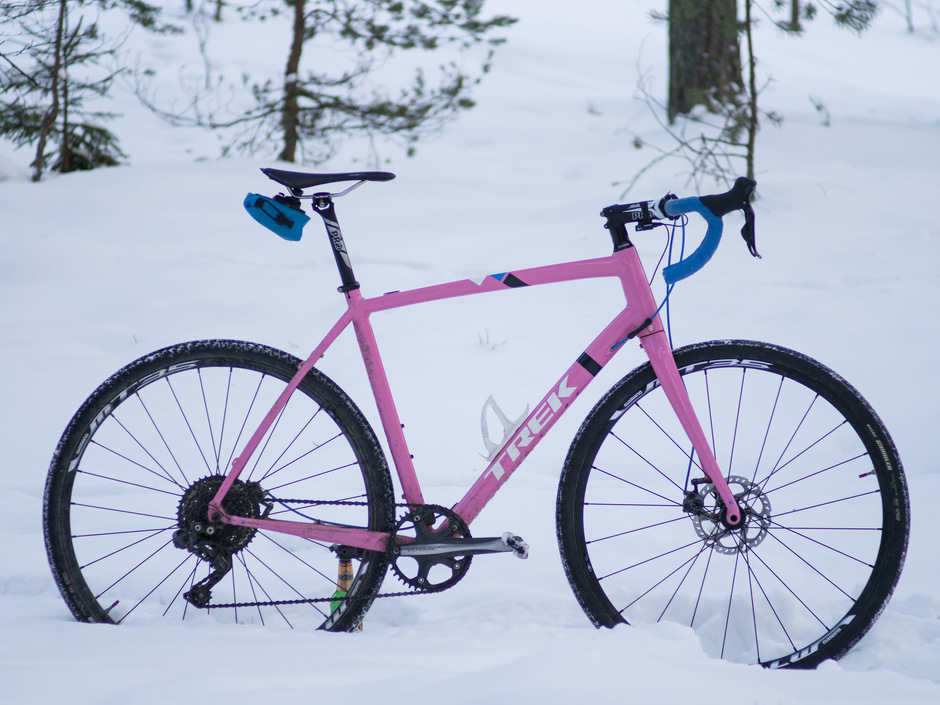

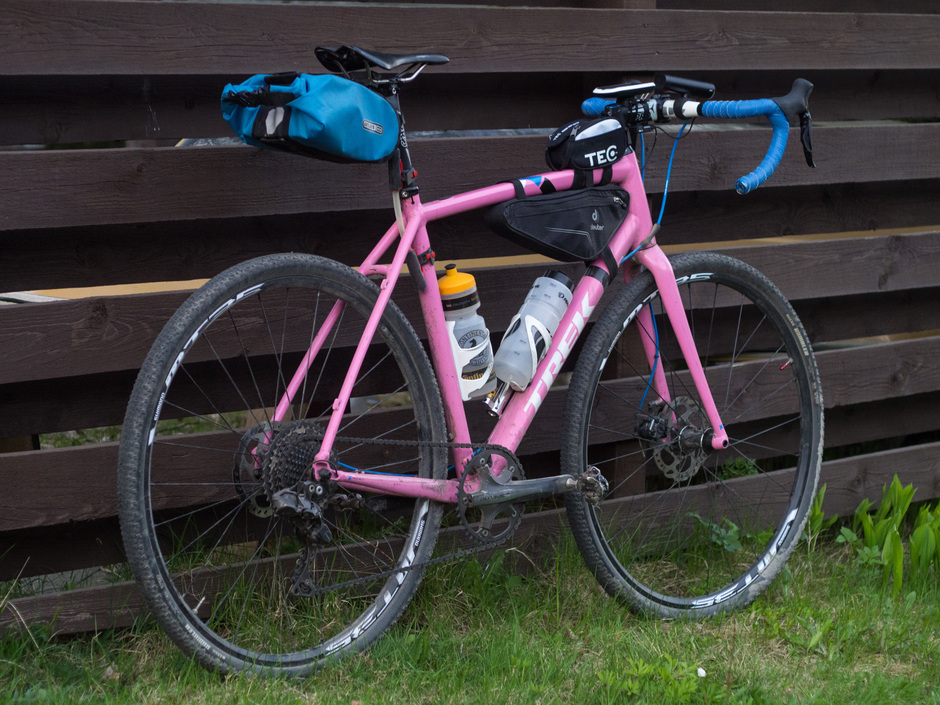

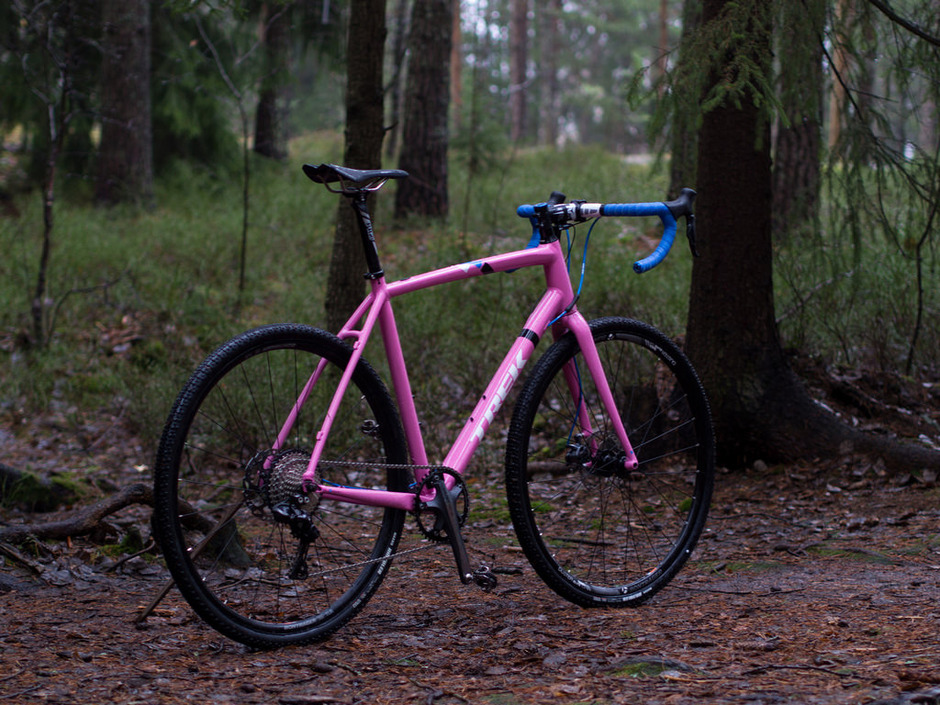

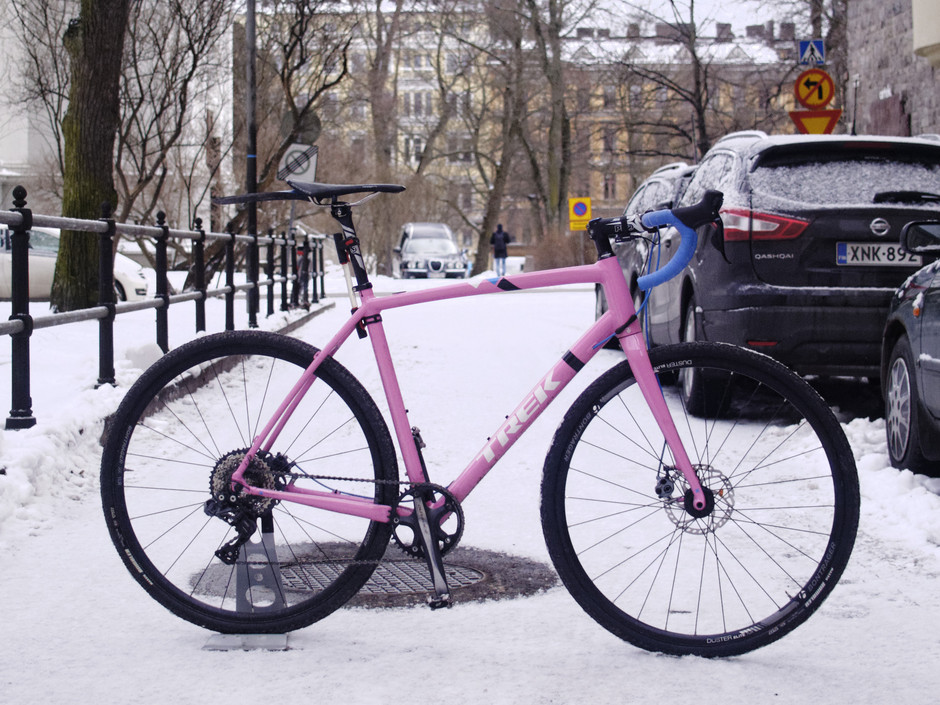

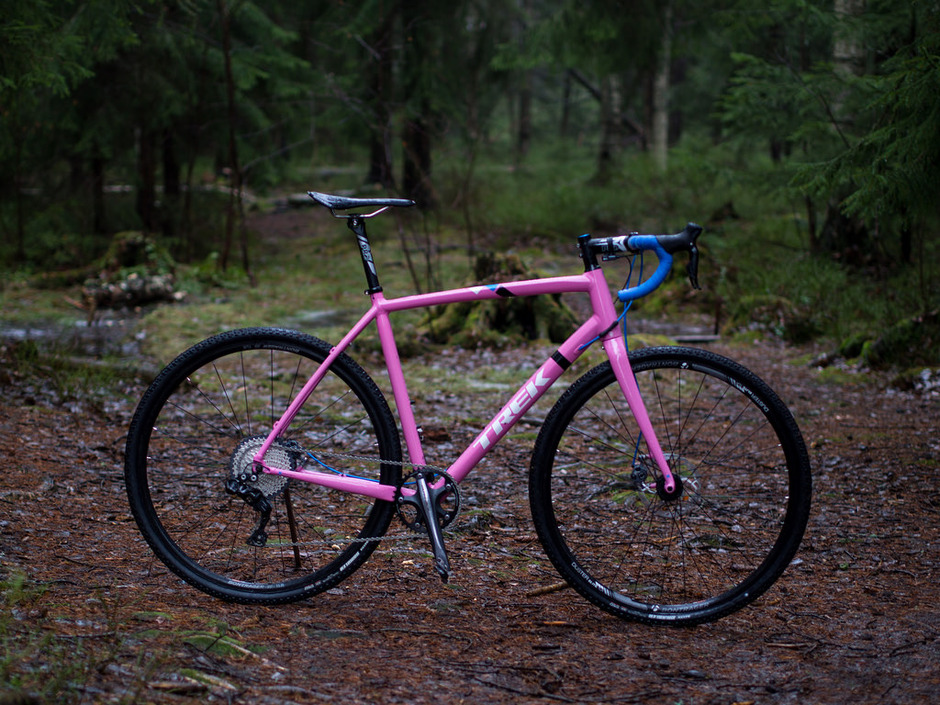

CX / Gravel Grinder / Allroad build
Frame:
Trek Crockett Disc "Pink frosting"
Fork/Headset:
Trek IsoSpeed Cross carbon disc

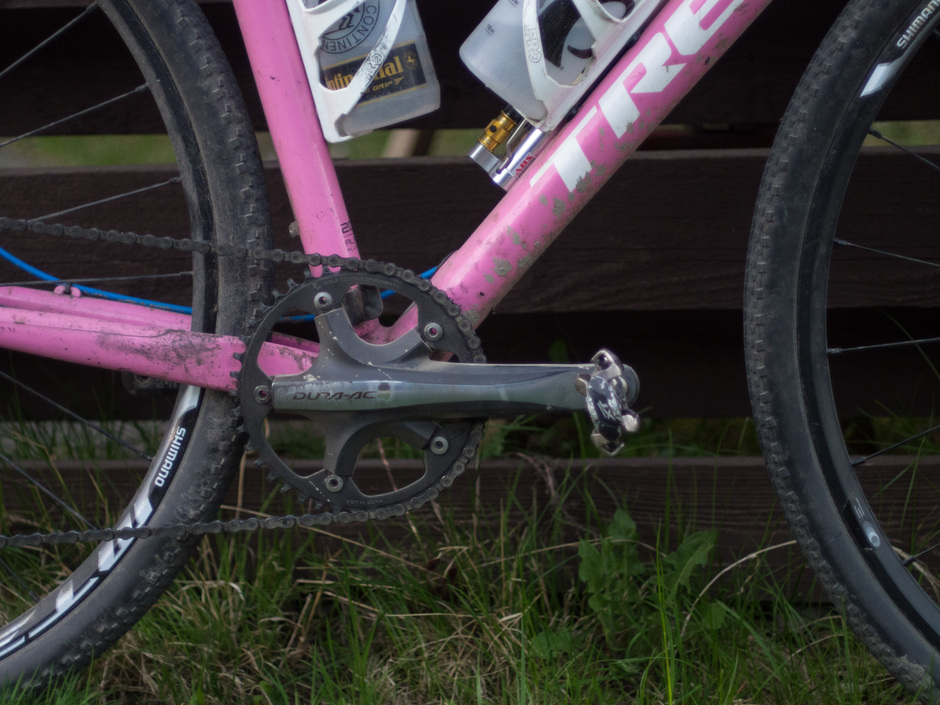

Crankset/Bottom Bracket:

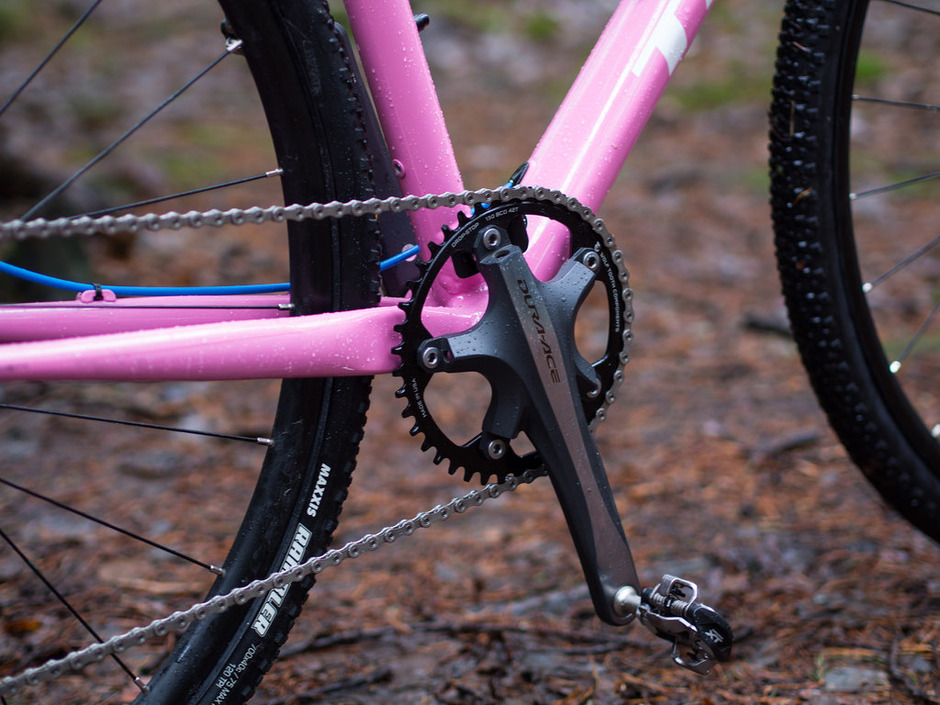

Shimano Dura-Ace FC-7900
Pedals:
Shimano XT PD-M8000
Drivetrain/Cog/Chainring/Chain:

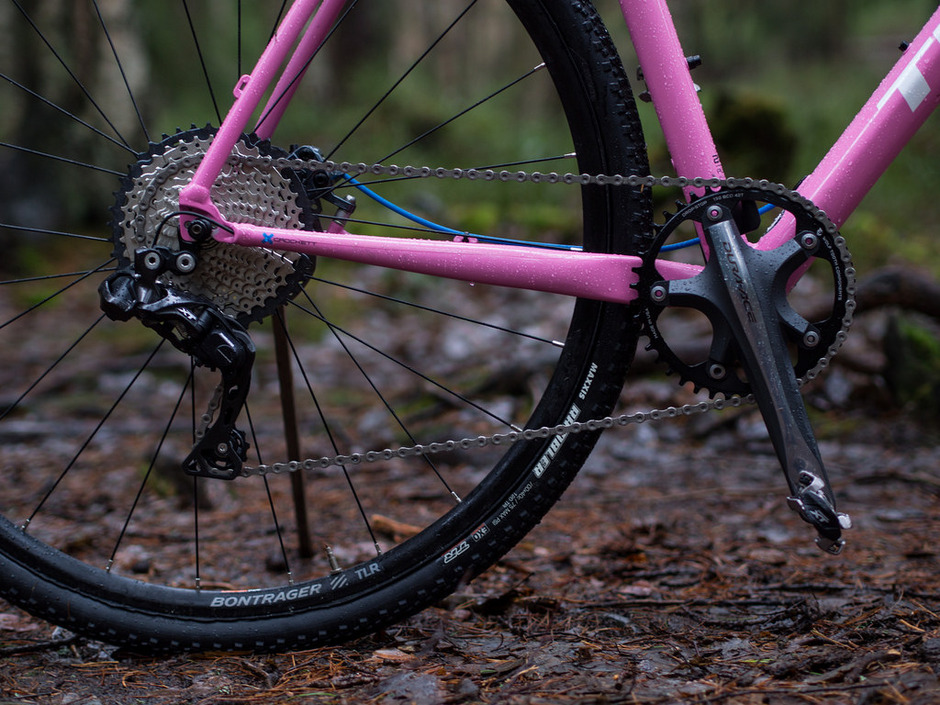

Shimano SLX 11-42t / Wolftooth 42t
Derailleurs/Shifters:

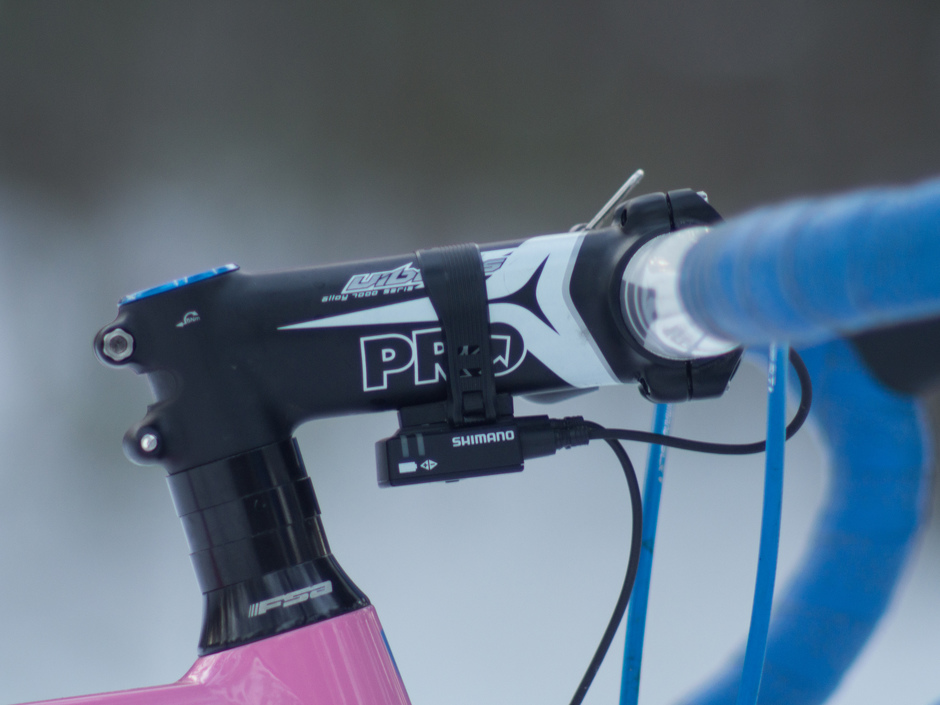

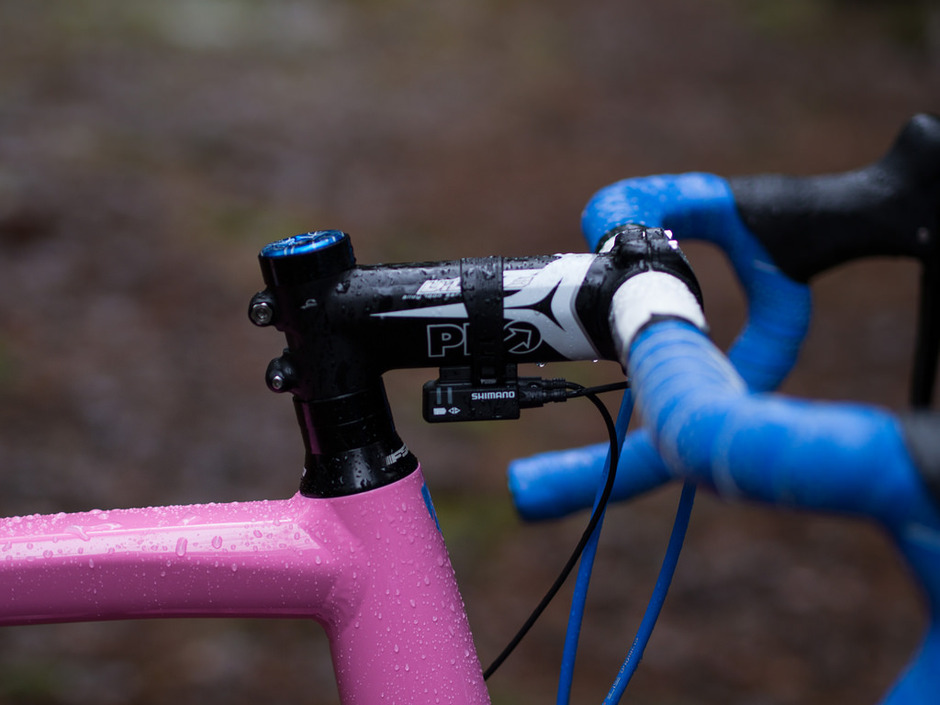

Shimano XT Di2 / Shimano Alfine Di2

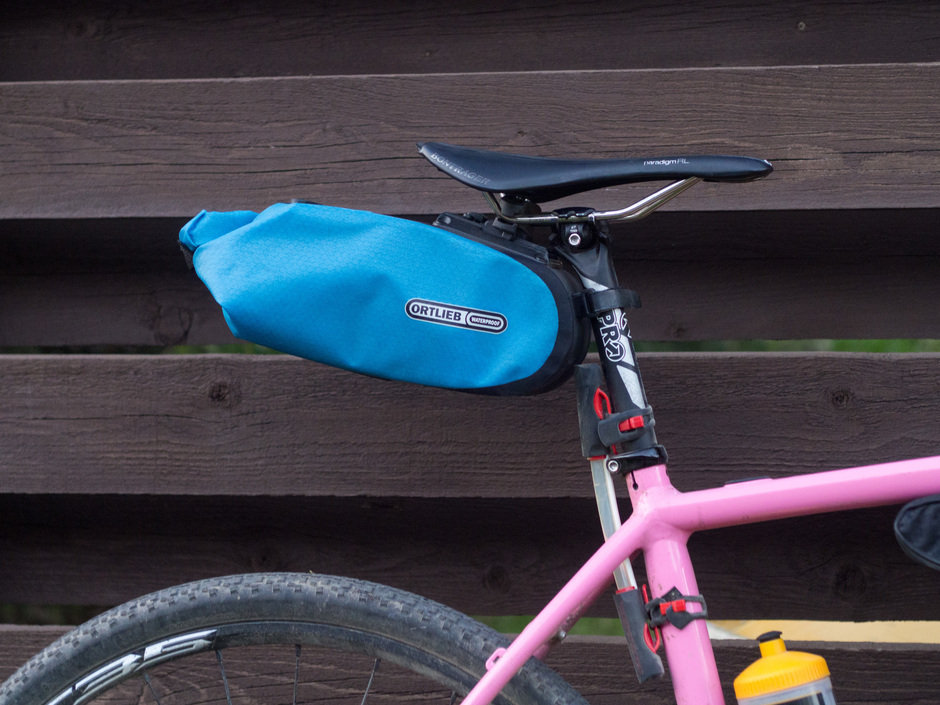

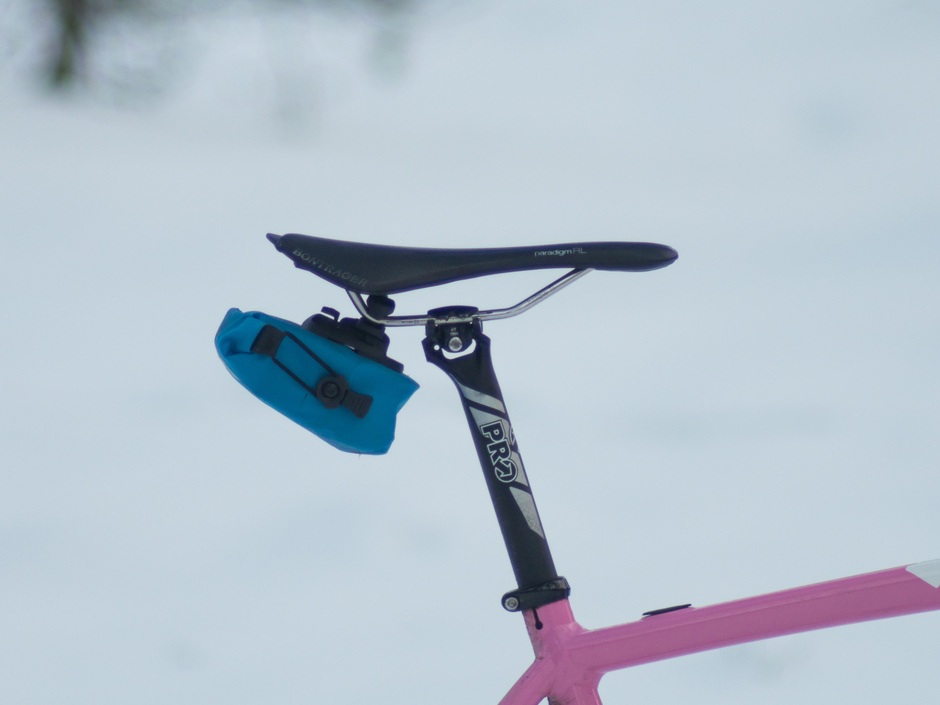

Saddle/Seatpost:

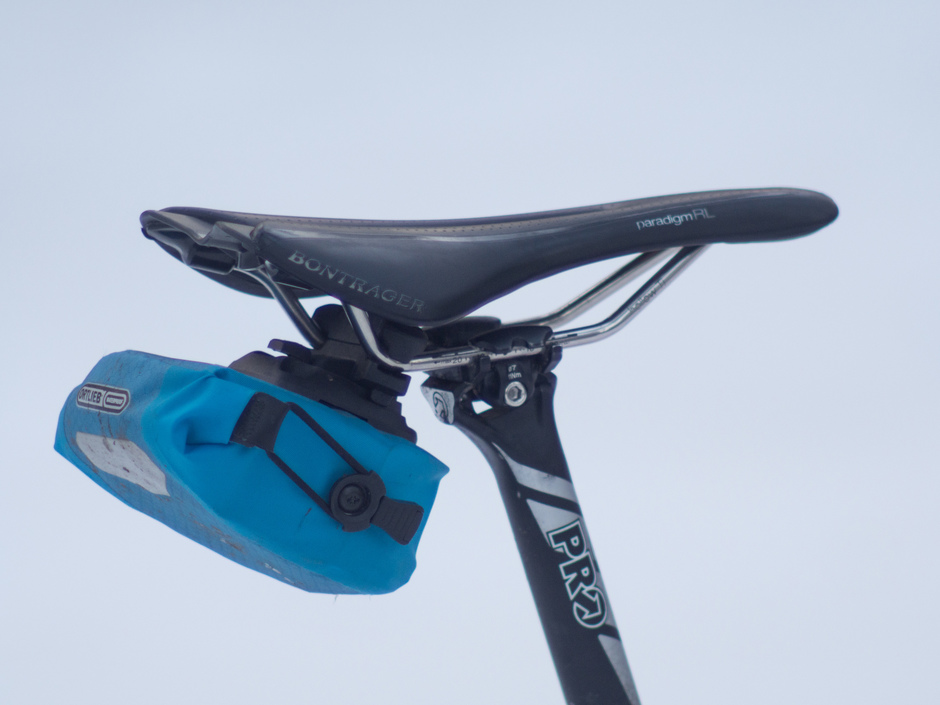

Bontrager Paradigm RL / Pro PLT Di2
Brakes:
Shimano BR-CX77
Front Wheel/Hub/Tire:
Bontrager Duster Elite / Maxxis Rambler EXO/TR 40-622
Rear Wheel/Hub/Tire:
Bontrager, tubeless ready / Maxxis Rambler EXO/TR 40-622
Added by JokkeA. Last updated over 6 years ago.
14 Comments
Another question about the Di2: if you use road shifters with a mountain rear derailleur, is the derailleur indexed for mountain cassettes or road cassettes? Can you choose which indexing you want by using Shimano's e-Tube software?
Posted about 7 years ago
With Di2-stuff the "cable pull ratio" depends on the rear derailleur, i.e. with an older RD-6770 rear derailleur I would need a 10 speed cassette . My shifter is in fact an Alfine Di2 one.
I think I could use an 11 speed road cassette, but I'm not 100% sure. I haven't thought about it because my wheels are only compatible with up to 10 speed road/11 speed mtb cassettes.
Posted about 7 years ago

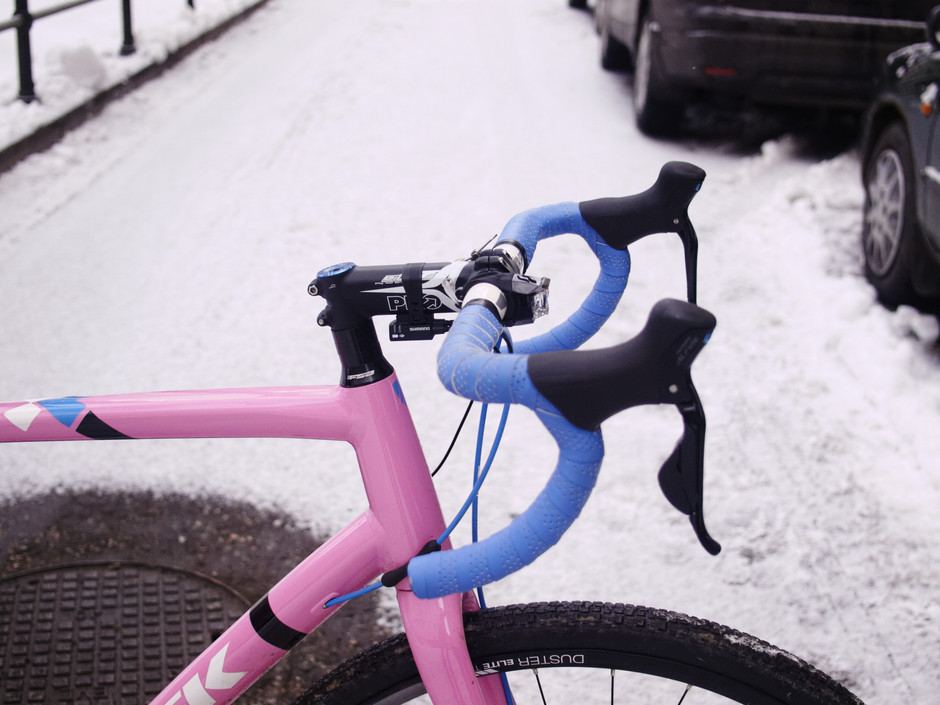

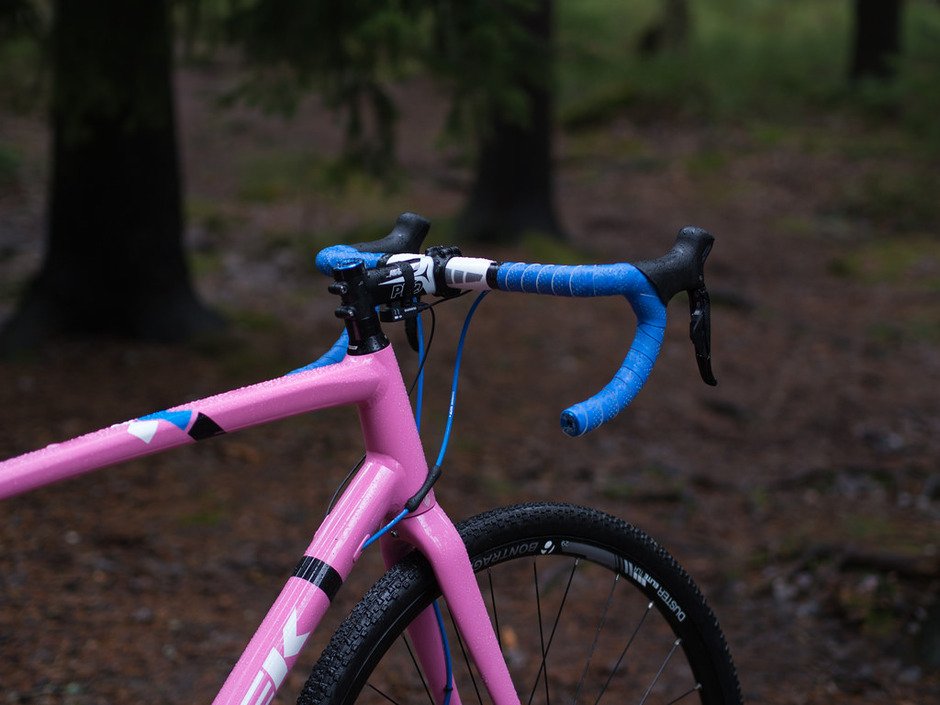

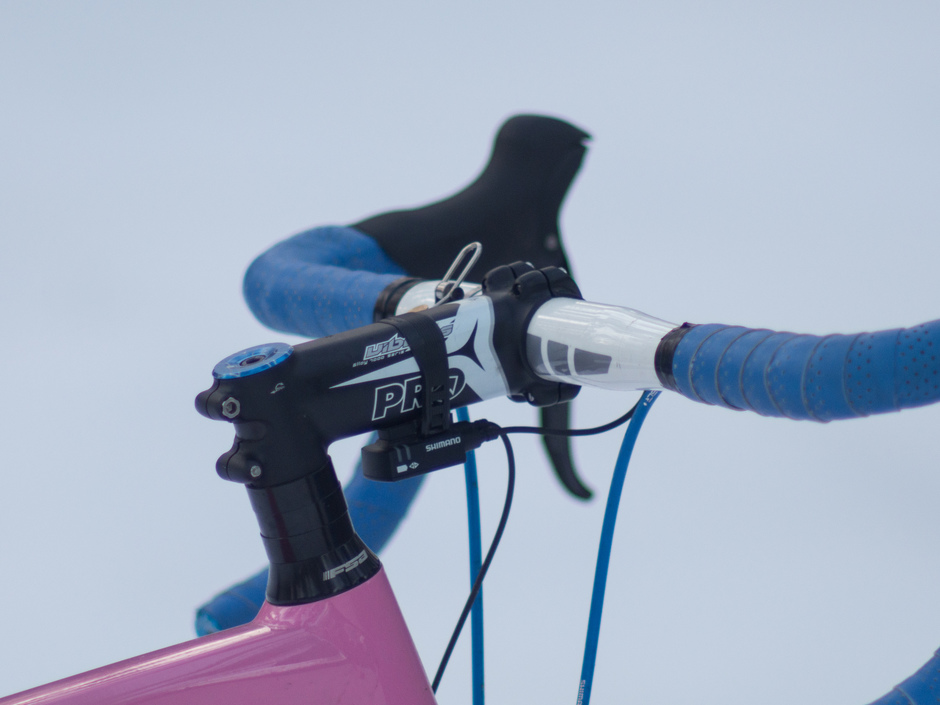

Beautiful build! what brand is the handlebar tape? It really looks nice with the blue graphics on the frame.
Posted over 7 years ago
Handlebar tape is by Tec components (Cycleurope accessory brand, stores carrying Bianchi, Crescent, Gitane or Peugeot might have some). Colours aren't 1:1, but closest I could find.
Posted about 7 years ago
sweeeeeet
Posted over 7 years ago
also, how were you able to route Di2? From what I remember the chain stays are blocked off at the BB.
Posted over 7 years ago
Chain stays are open at least on my frame. There was a di2 version of the bike a few years ago.
Basically the di2 wire follows the route of a fd cable, inside the down tube, few cm's exposed under the bb and then back inside the frame. I drilled one of the holes made for a cable guide mounting screw under the bb large enough to pass the wire trough. Battery is inside the seatpost as is junction box b.
Posted over 7 years ago
Sweet! I see that you're using the road Di2 shifter with mountain Di2 derailleur combo. I just recently found out about this and probably will use it in my next build. How is the shifting on a big range cassette like that?
Posted almost 8 years ago
Photos
pwebb88 says:
Favorited, this thing is dope
Posted almost 7 years ago
JokkeA says:
Thanks!
Posted almost 7 years ago
