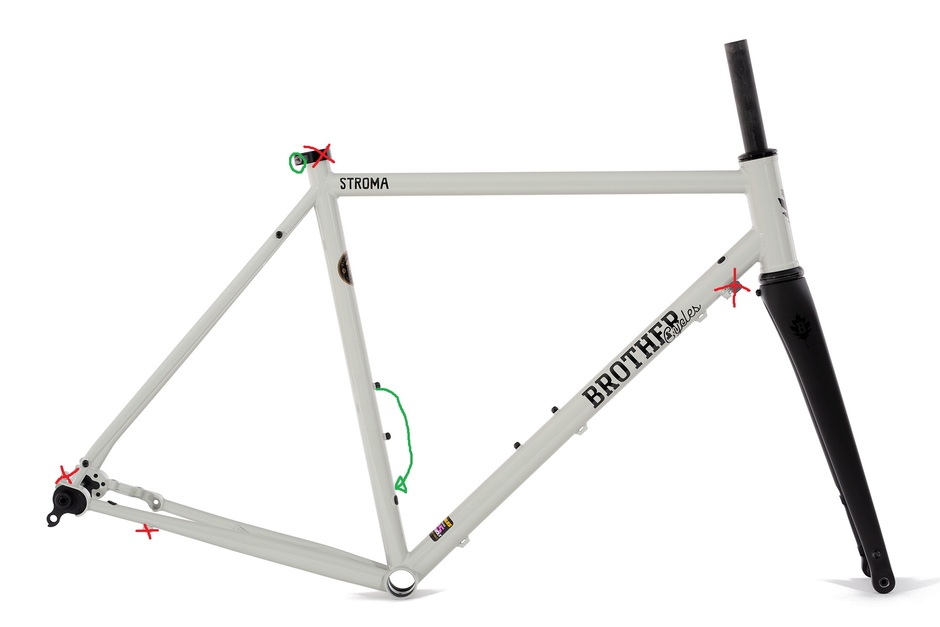

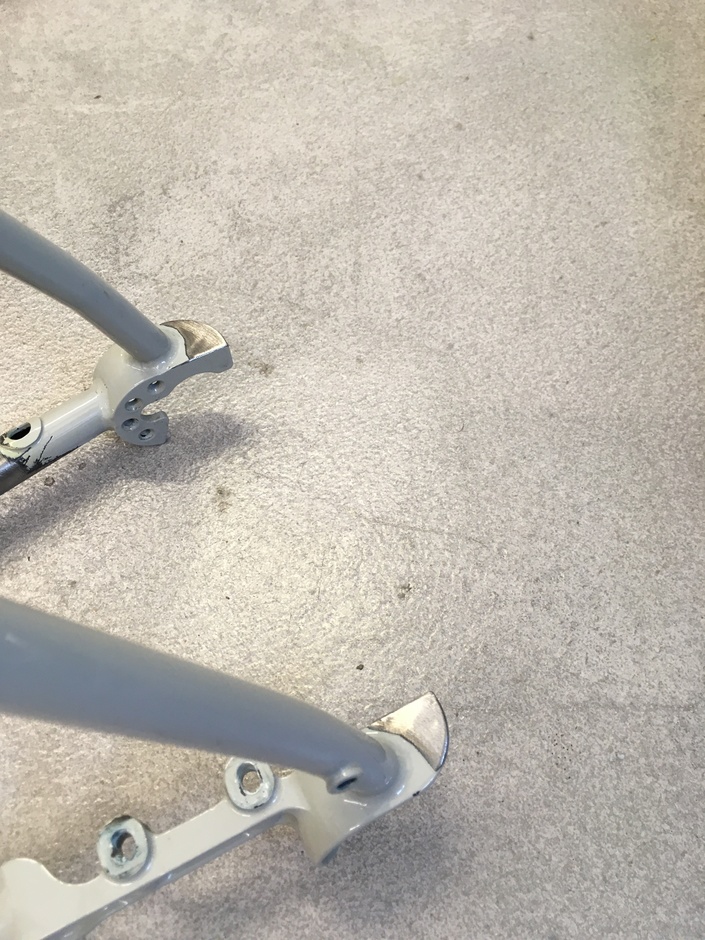

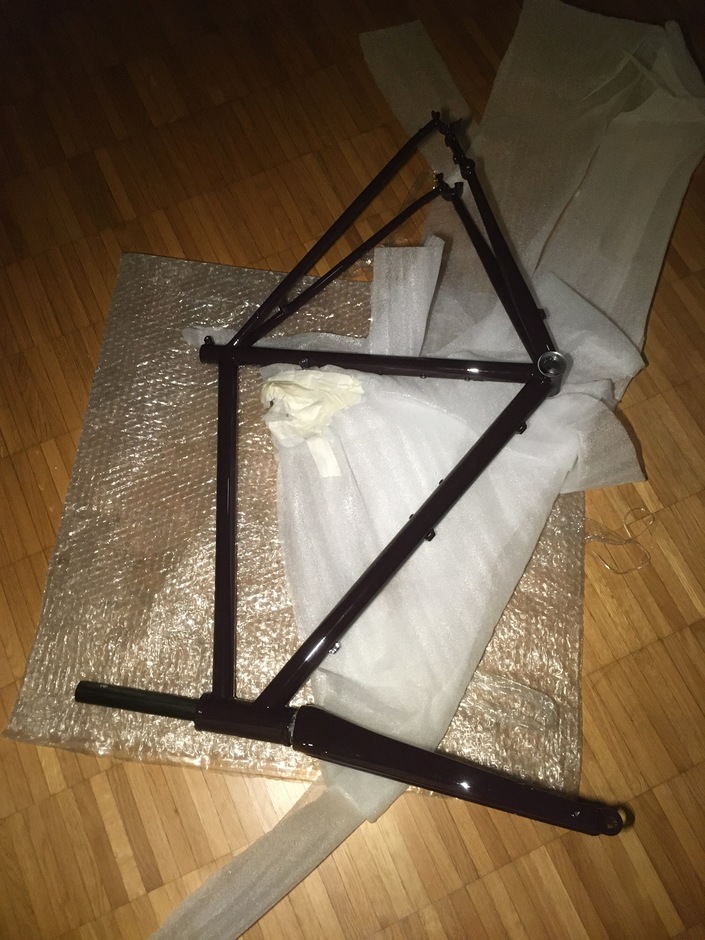

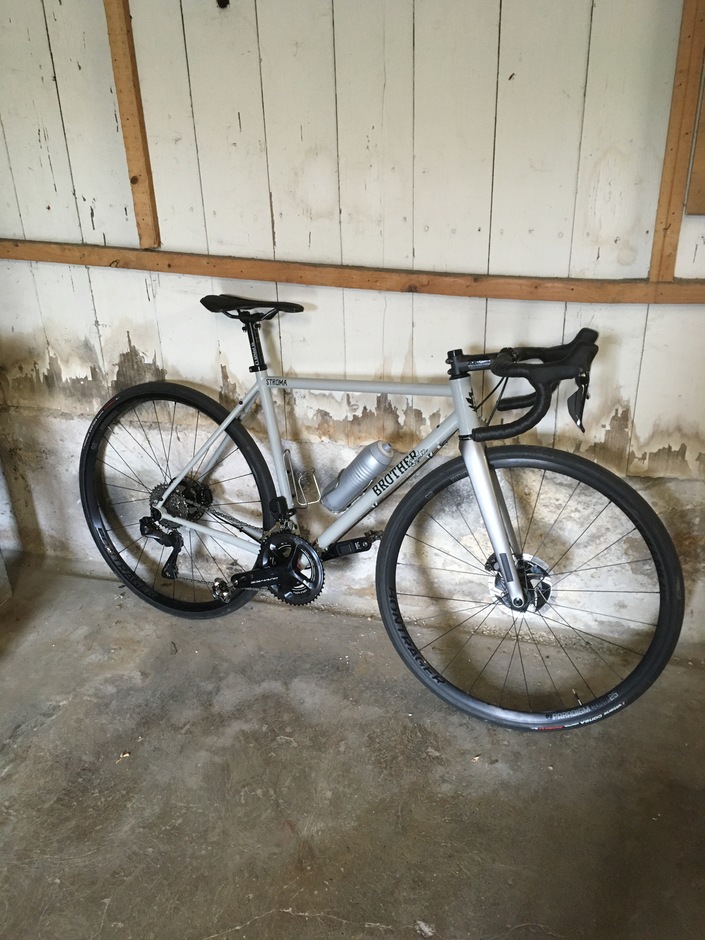

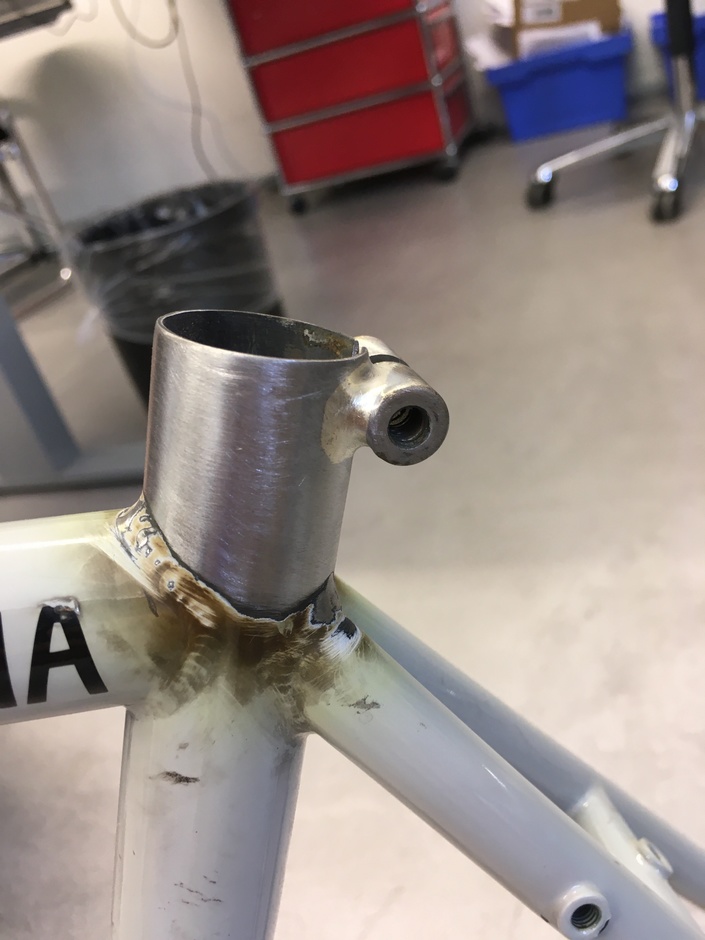

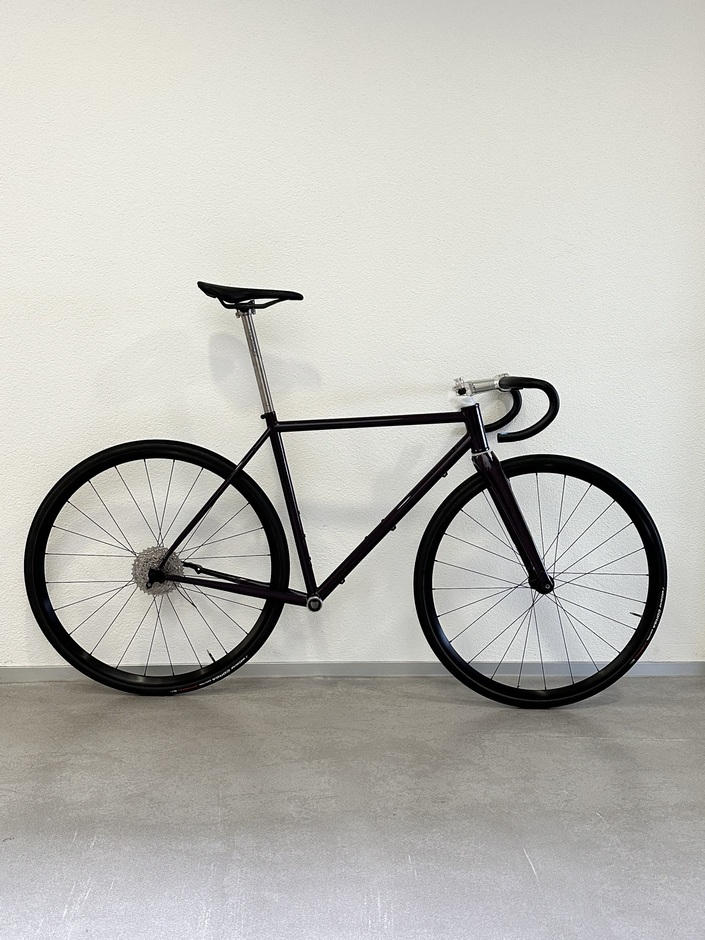

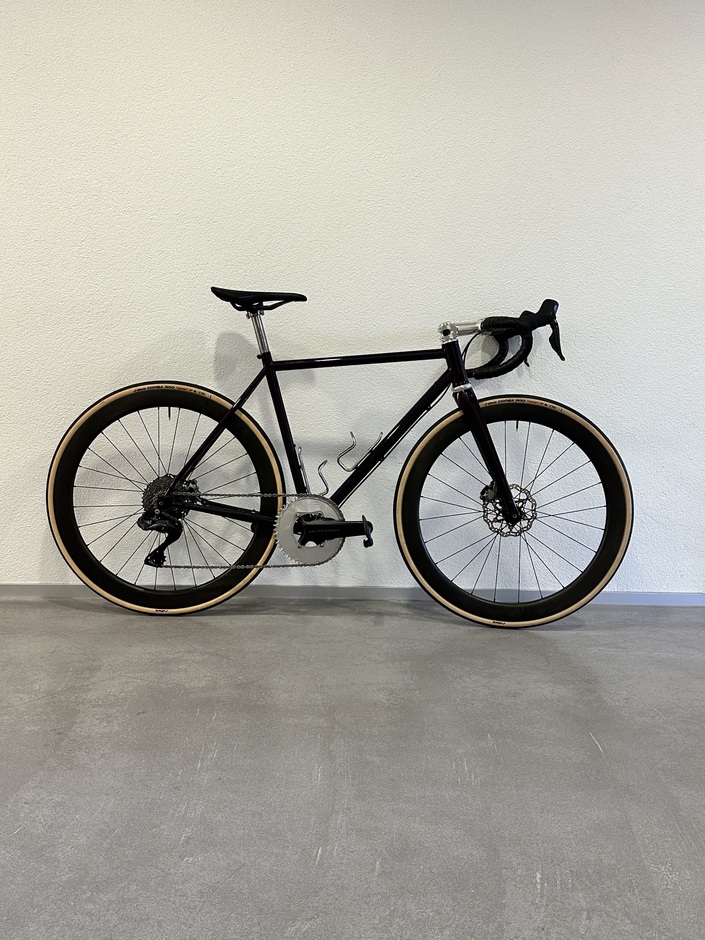

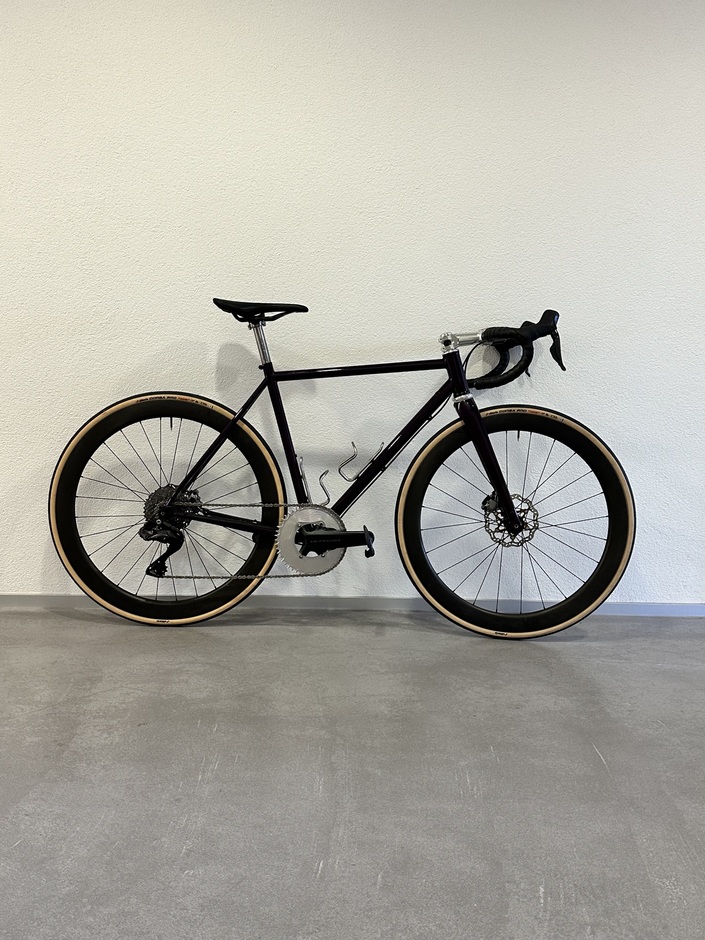

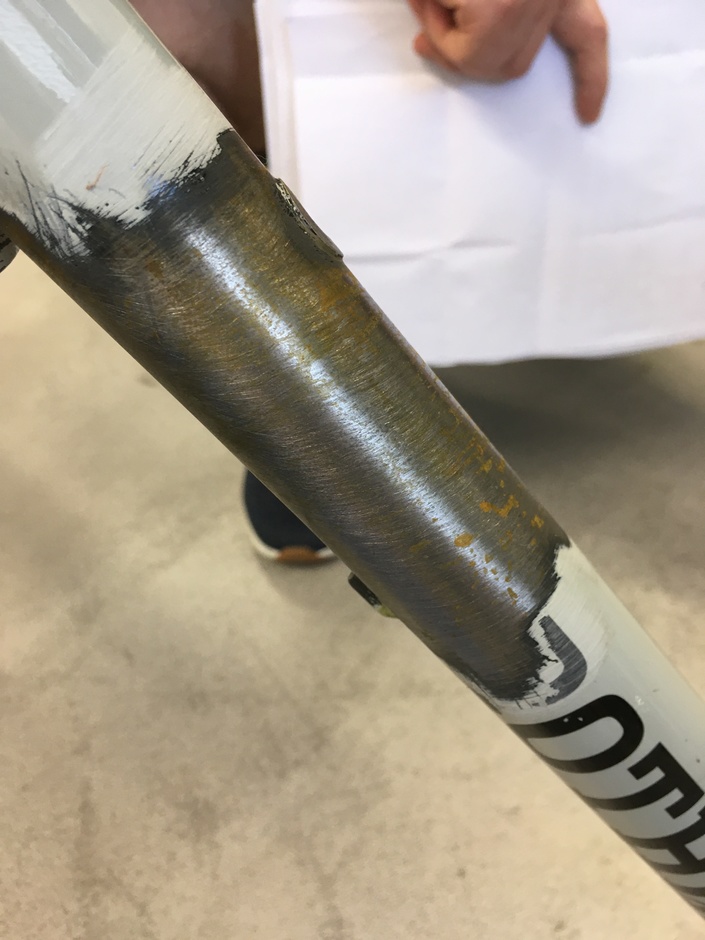

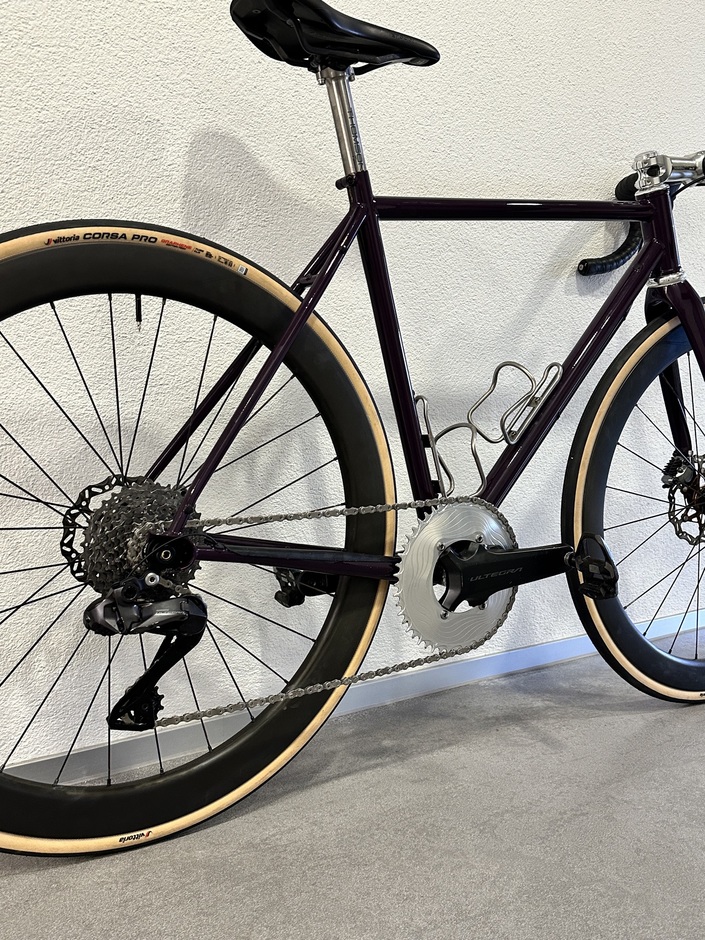

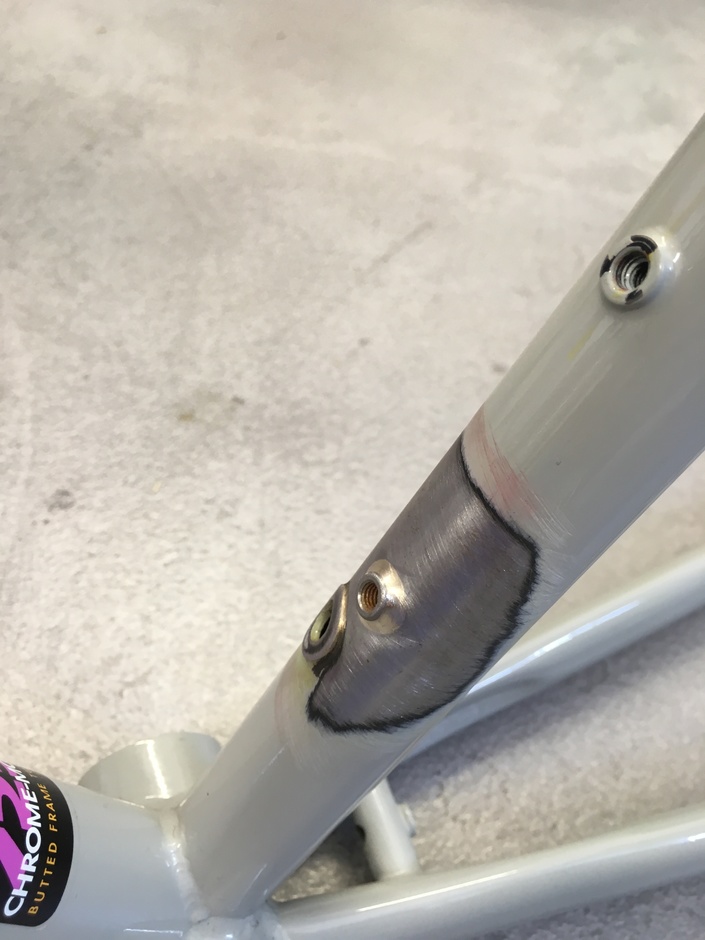

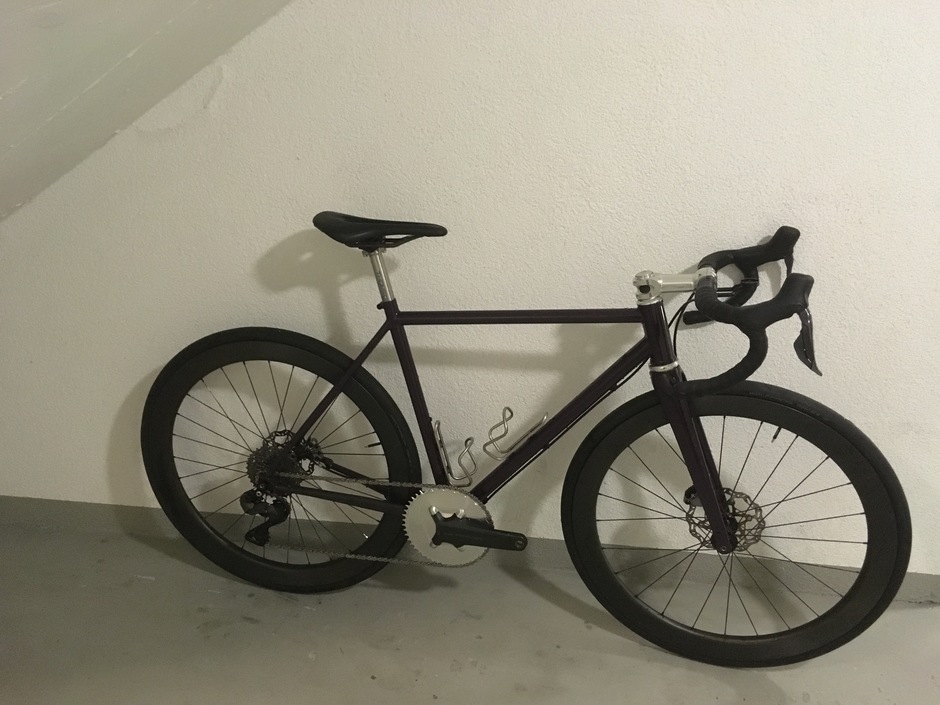

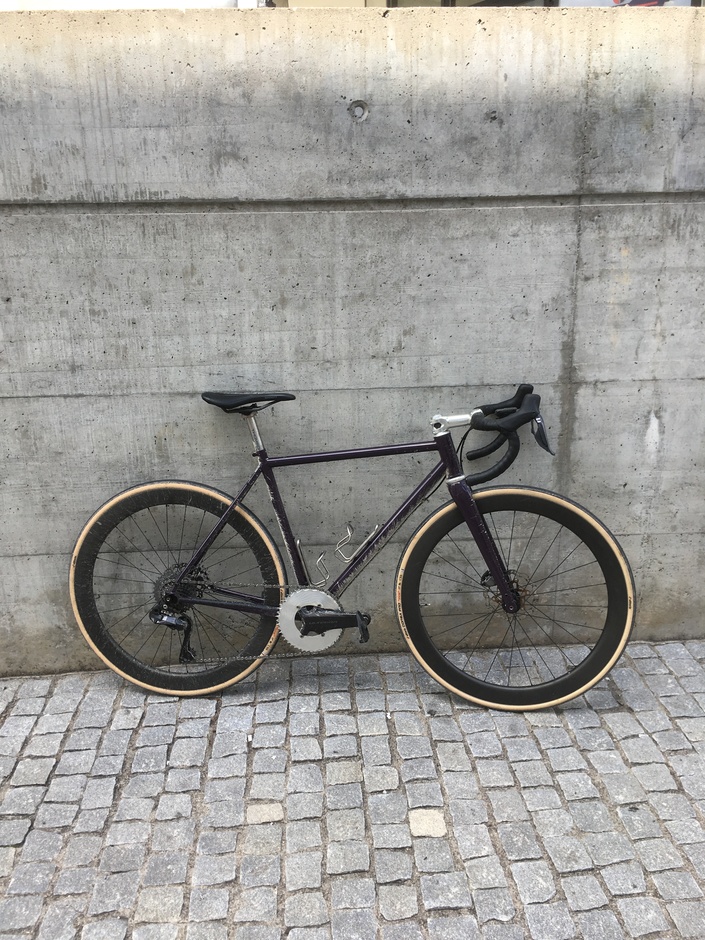

Originaly I bougth this frameset because the Brother fork I needed for another project wasn't avaliable as fork only option. In the meantime my other Brother Cycles, the Meteh, got used a lot for commuting and I love the feel and quality of the frame so much that I decided to repaint it. After some recovery of my bankaccount and the fork only option beeing back in stock why not build this bike up as a budget/second allroad bike? A friend was looking for a new bike anyway so I built it up with 105 Di2 to fit her budget. When finished, she suprisingly didn't like the look of the round steel tubes anymore. Women... It happened that I rode it for some winter races in Rüfenach and even in April at the Möhlin Nightcrit and it didn't dissapoint. Now the time has come to frameswap it to a serious allroad racebike. Local framebuilder Stolz made the versatile frame sportier by taking off the fender eyelets, the huge derailer housing stoppers on the downtube and the unnessesary cable guide for mechanical rear derailer option. He also fillet-brazed a clean integreated seatclamp and lowered the bottlemount on the seattube. Duoton GmbH painted it in dark purple. To create some aesthetic and financial contrast on this reasonably priced Stroma it got speced with fancy raw titanium and alloy parts such as a Chris King bottombracket and headset, King Cage titanium bottlecages, Thomson titanium seatpost, Carbon-Ti topcap and thru axles. A friend even CAD me a direct mount Shimano mech hanger that brothers doesn't offer. This detail will be expensive but the bike will look even cleaner and should shift better due to the stiffer mount. If anyone is interessted in buying a direct mount hanger for theyr Brother Meteh, Stroma or Kepler I'll be happy to sell one and share the cost of this stupidly expensive piece.
Frame:
Brother Cycles Stroma size S / Colourcode NCS S 8010-R50B / Reynolds 725 Steel / Carbon-Ti 174x1.75 /
Fork/Headset:
Brother OEM Carbon Road Fork / Chris King InSet 7 ZS44/28.6 EC44/40 / Carbon-Ti 120x1.5
Crankset/Bottom Bracket:
Shimano Ultegra FC-R8100 165mm 1x12 / Chris King Threadfit 24 BSA
Pedals:
Shimano XTR or Dura-Ace
Drivetrain/Cog/Chainring/Chain:

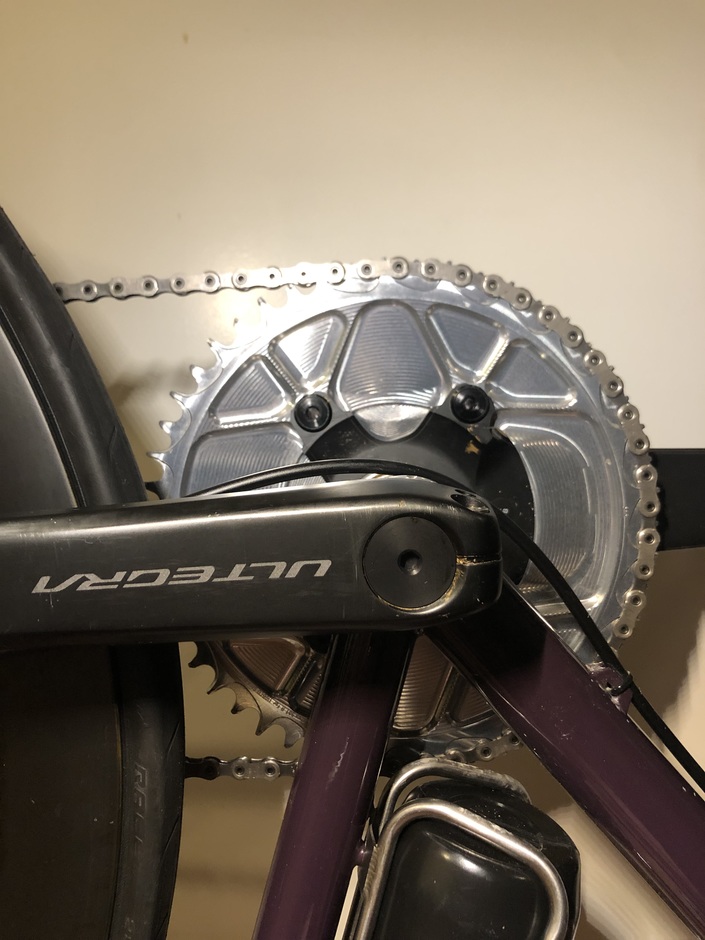

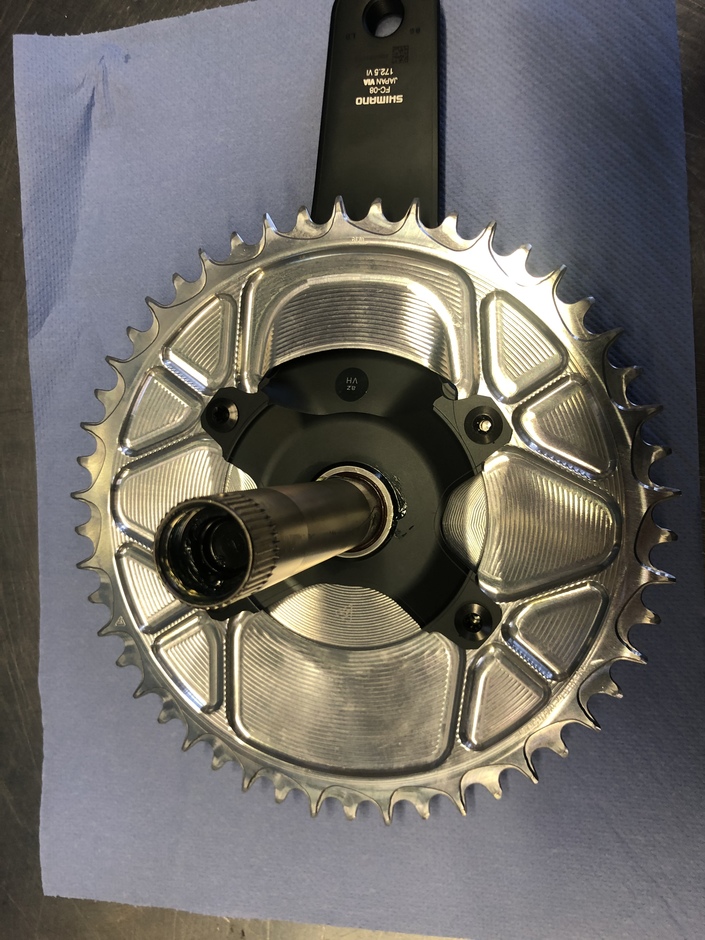

Shimano Dura-Ace CS-R9100 11-34 Cassette / Alugear 50T with aero Cover or Rotor 34T Chainring
Derailleurs/Shifters:

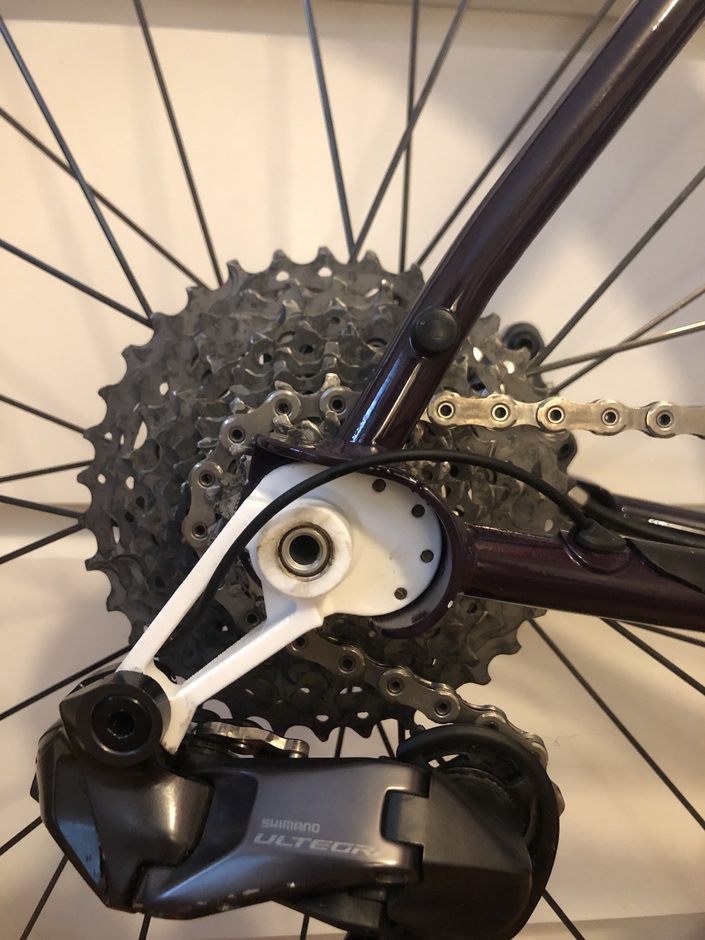

Shimano Ultegra Di2 RD-R8150 / Shimano Ultegra Di2 ST-R8170R and custom 1by BL-R8170L without the shiftpedals
Saddle/Seatpost:
Ergon Enduro Carbon / Thomson Masterpiece T 27.2
Brakes:
Shimano Dura-Ace BR-R9170 / 140/160mm BCA Rotors
Front Wheel/Hub/Tire:
690g Nextie Carbon 50mm NXT50GX ERD541mm 425g 50x29x22mm laced with 24x 260mm Sapim CX-Ray to DT-SWISS 350 with black Sapim polyax 12mm brass nippels
Rear Wheel/Hub/Tire:
820g Nextie Carbon 50mm NXT50GX ERD541mm 425g 50x29x22mm laced with 28 Sapim CX-Ray (DS256mm, NDS258mm) to DT-SWISS 350 with black Sapim polyax 12mm brass nippels
Accessories:

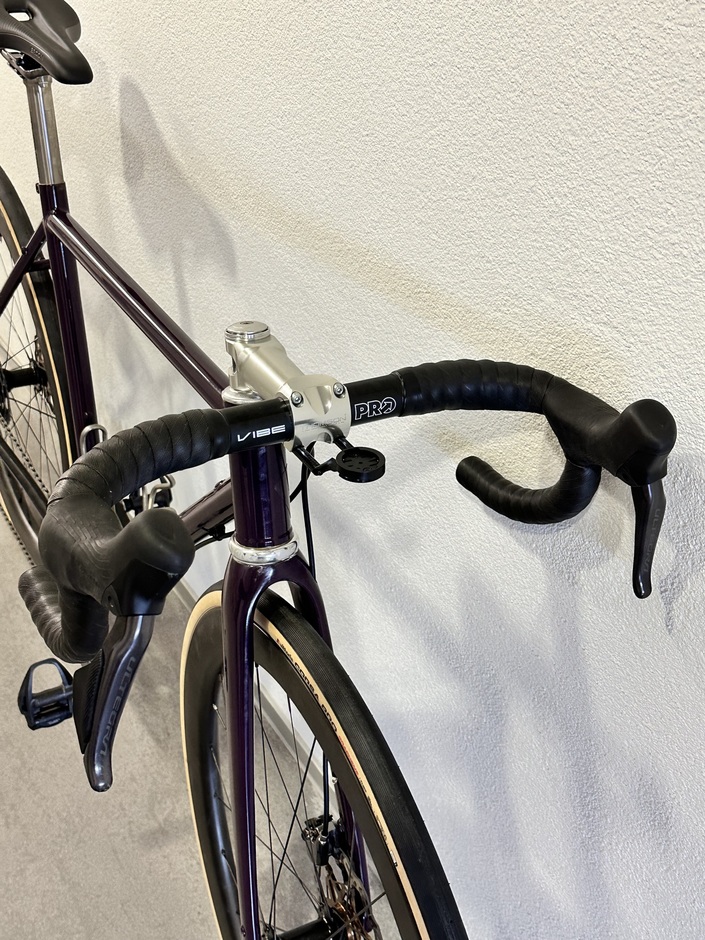

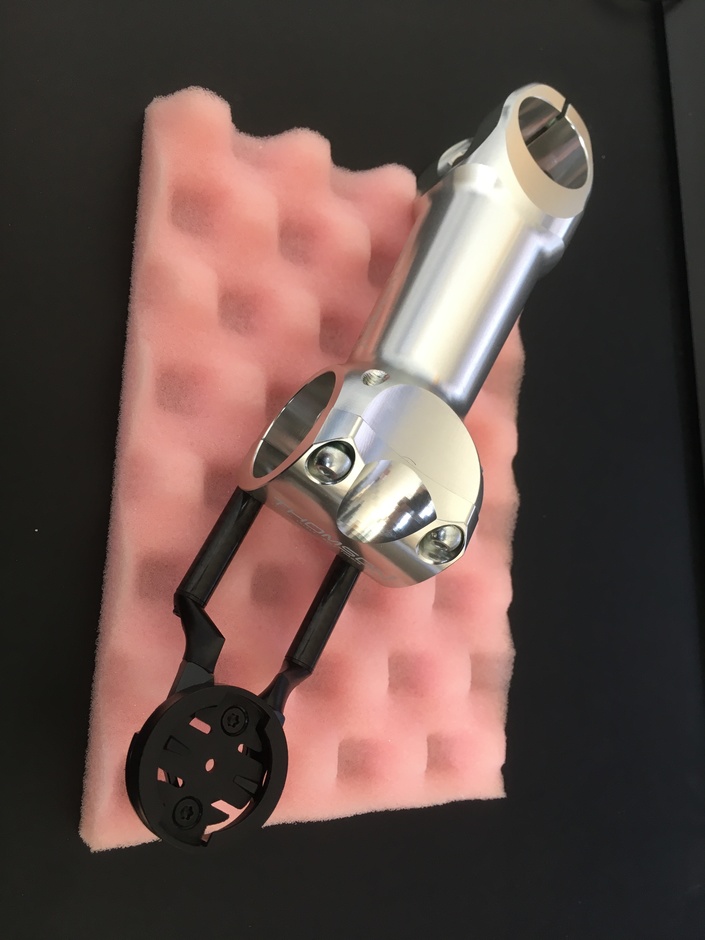

2x King Cage Titanium / Titanium Probolt drilled racebolts / Carbonworks.de Garmin Mastermount extra breit / Velobike long Expander Plug / Meti SPD Titan Axle
More Info:
8.765kg in road mode and xxkg in cx mode
Bike History
Click a link below to see past stages of this bike.
Added by ianiscaratti. Last updated 18 days ago.
Latest 22 Comments
I am sure that constructing unique bikes like the Bother Stroma is a testament to individuality in cycling. For those seeking personalized transportation experiences beyond traditional bikes, considering options like super73 customer service https://www.pissedconsumer.com/company/... for electric bikes can provide a seamless and satisfying journey. Threads like these illuminate the diverse ways enthusiasts can tailor their rides to match their preferences and lifestyle.
Posted about 1 year ago
Well, that was anticlimactic
Posted about 1 year ago
sorry for not beeing up to your expectations but I'm happy with it.
Posted about 1 year ago
Inspiring project!! Keen to see the result !
By the way, DM'd you about the dropout ;)
Posted about 1 year ago

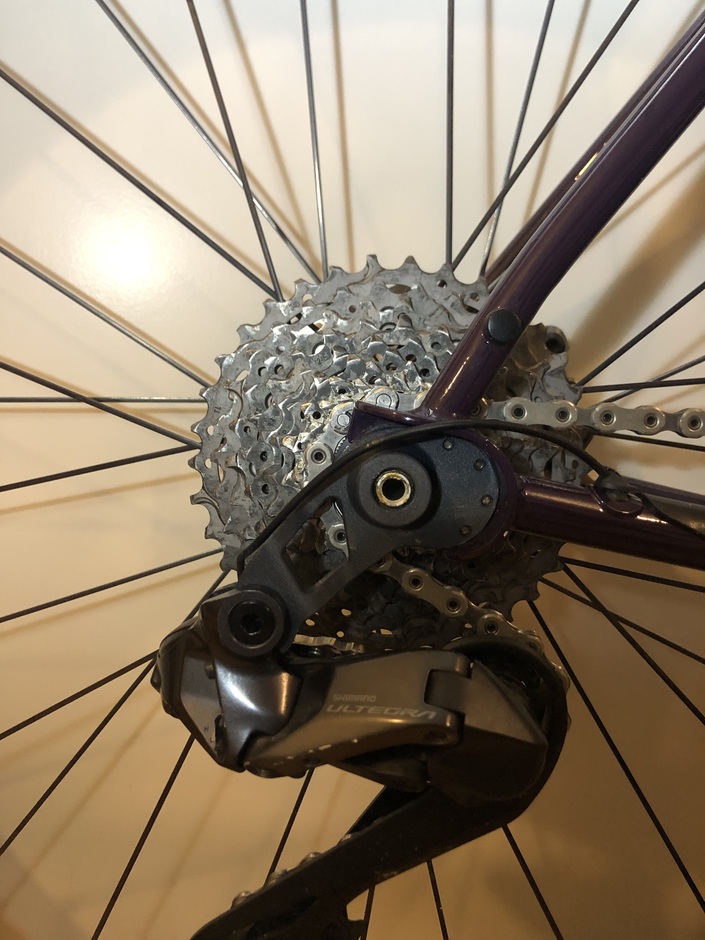

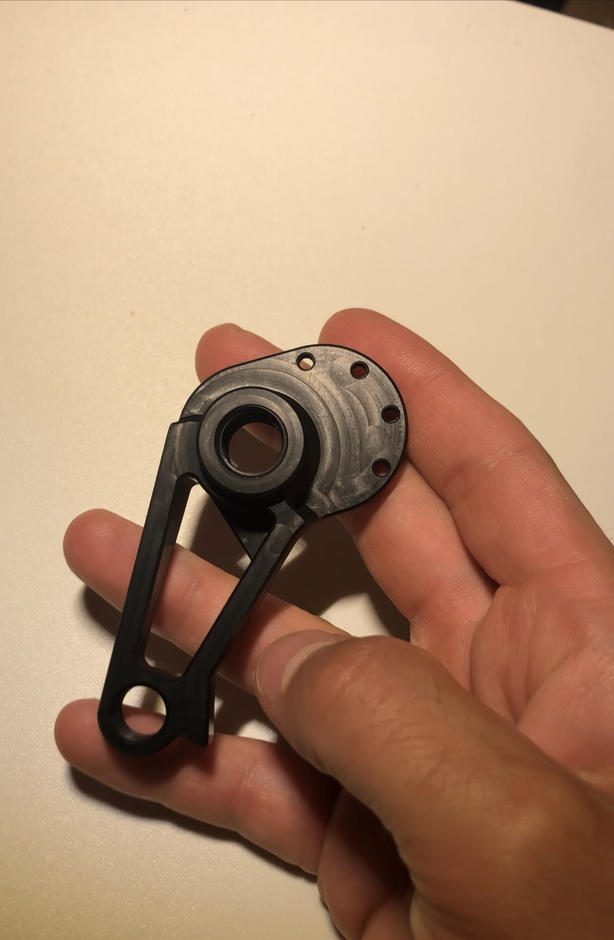

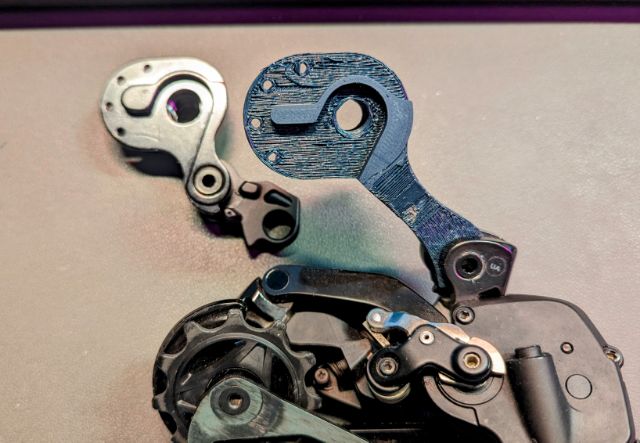

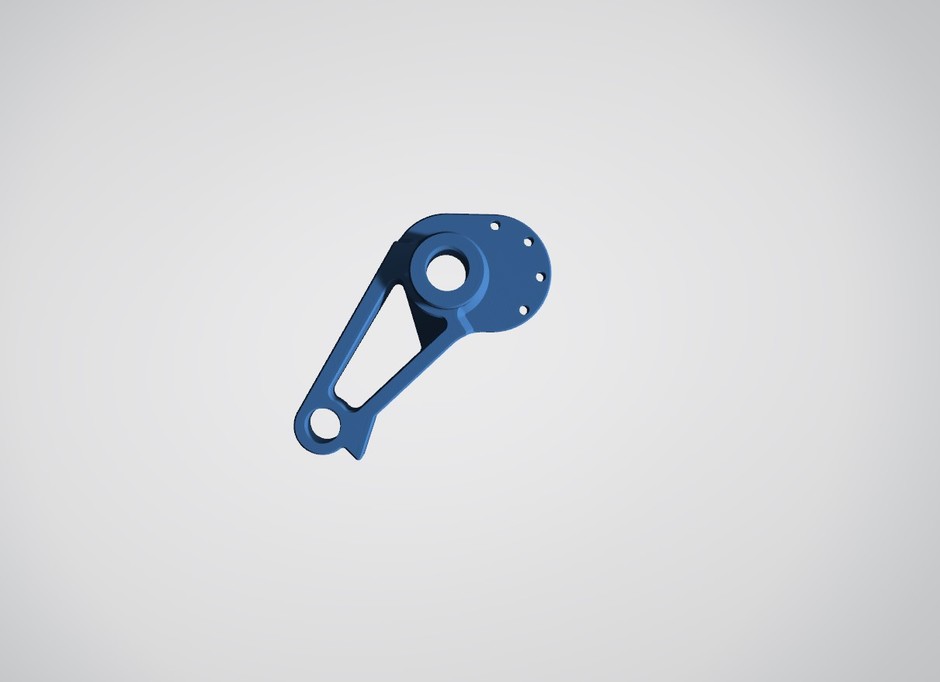

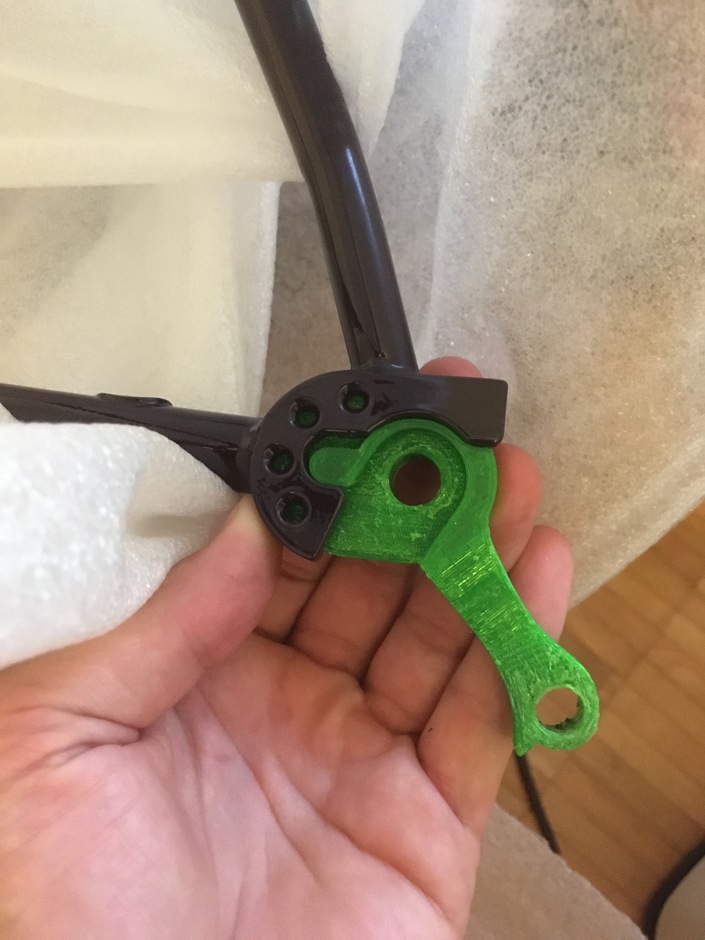

Itßs finished exept the hanger. I replied to you the 16.06 but we need more patience until the hanger is finished.
